Toro Workman UTX - Adjusting the Front Ride Height

AdjustingtheFrontRide
Height
Owner-providedtools:spring-adjusterwrench,
ToroPart139-4678;refertoyourauthorizedT oro
distributor.
Important:Makeheightadjustmentsonlyifthere
isuneventirewearorifyouareaddingadditional
weighttothefrontofthemachine(e.g.,adding
aBOSSplow).
1.Ifyouareaddingweighttothefrontofthe
machine,adjusttherideheight.
Checkthetirepressuretoensurethatthefront
tiresareinatedproperly;refertoCheckingthe
TirePressure(page60).
Thegroundclearanceshouldbe23cm(9
inches)forstandardwheelsandtiresor25cm
(10inches)forthelargeraccessorywheelsand
tires.
2.Ifthegroundclearanceisnotcorrect,usethe
spring-adjusterwrenchtorotatethecollaronthe
shockabsorbertoalignthewheel(Figure105).
Note:Ifthecollarisdifculttorotate,raisethe
frontofthemachine;RaisingtheMachine(page
76).

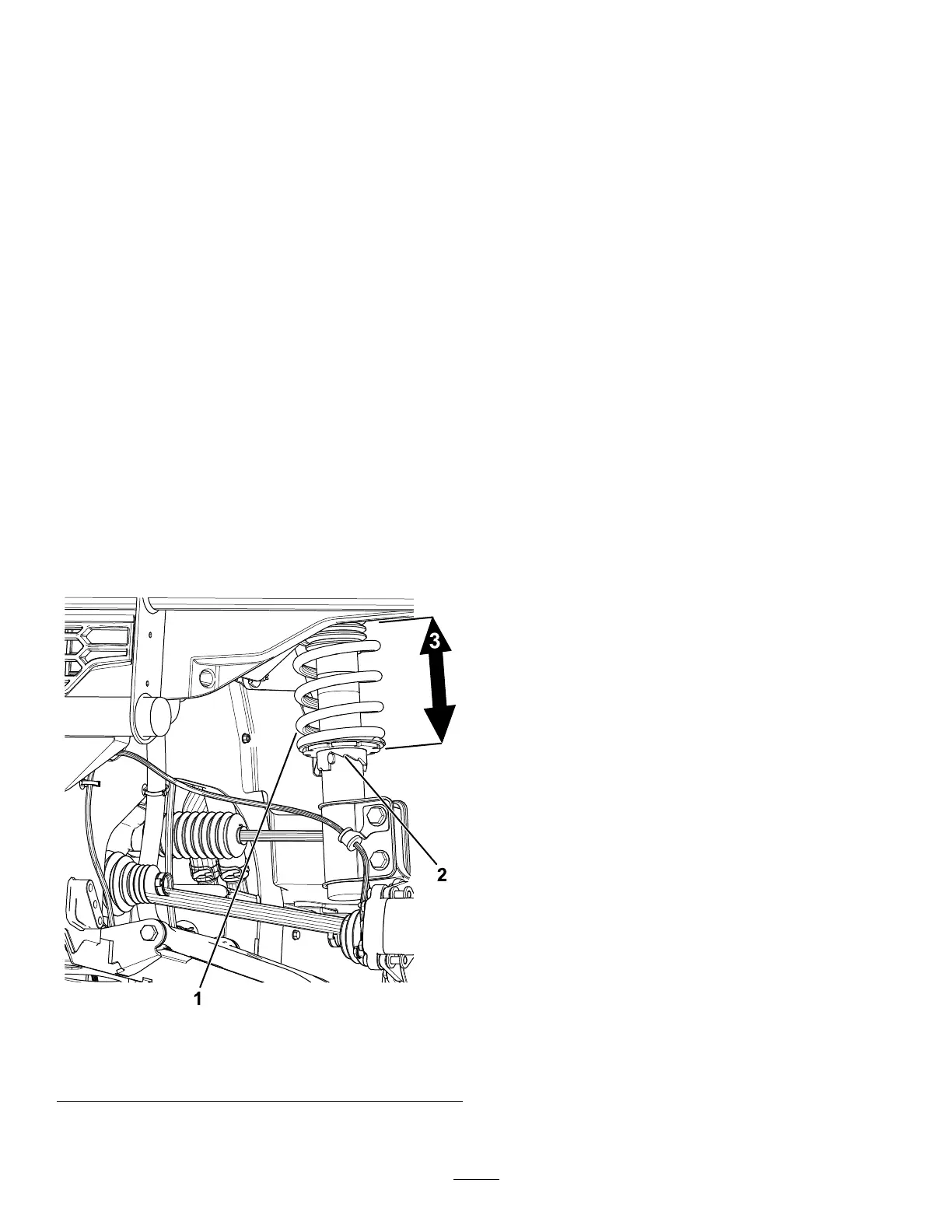

g364721
Figure105
1.Shock-absorberspring3.Springlength
2.Collar
