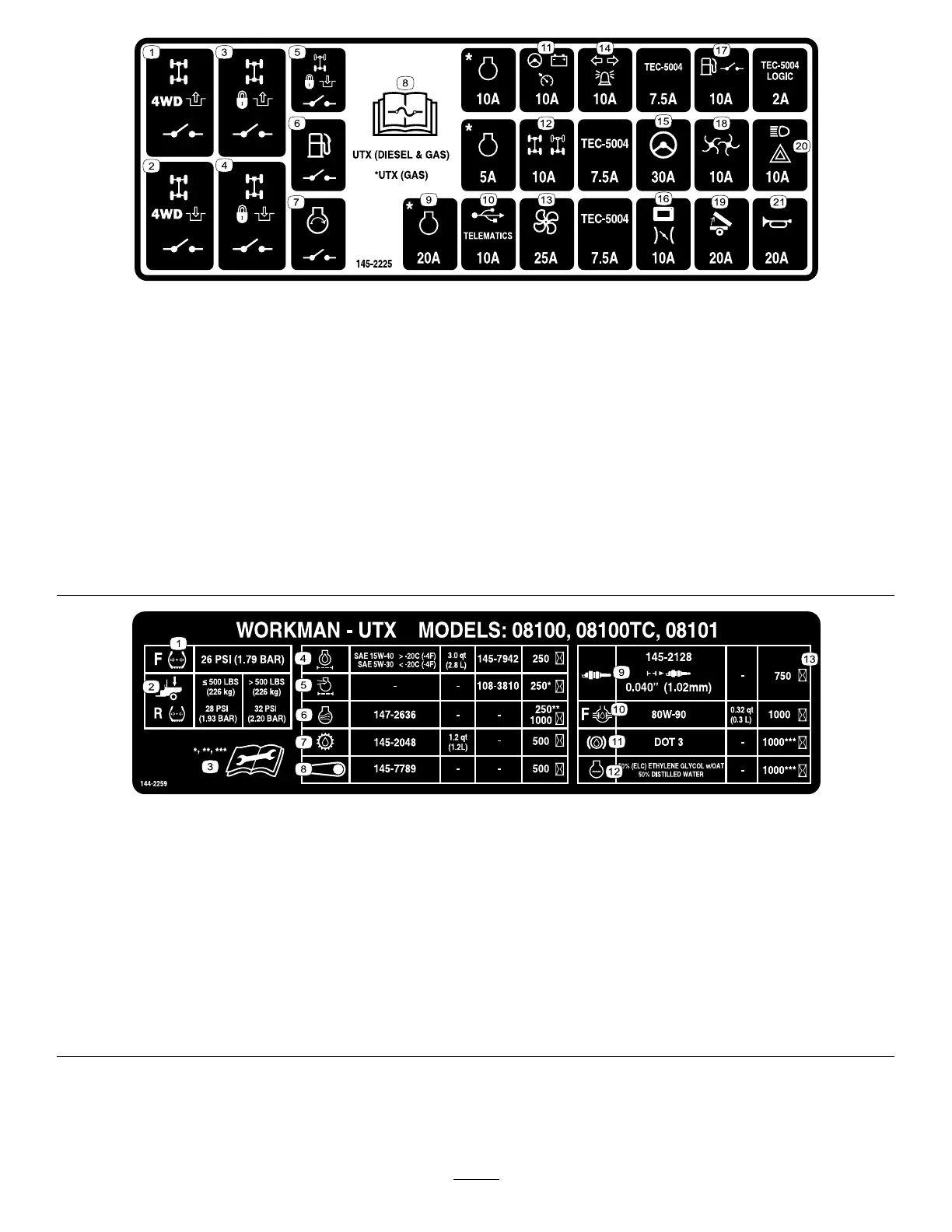

decal145-2225
145-2225
Note:*Gasolinemachinesonly
1.Frontdifferentiallockand4-wheeldrivedisengagerelay12.Frontandreardifferentials
2.Frontdifferentiallockand4-wheeldriveengagerelay13.Coolingfan
3.Frontdifferentiallockdisengagerelay
14.Positionlightsandturn-signallights
4.Frontdifferentiallockengagerelay
15.Powersteering
5.Reardifferentiallockengagerelay
16.Displayandthrottle
6.Fuelrelay17.Fuelrelay
7.Starterrelay18.Saltspreader
8.ReadtheOperator’sManualforfuseinformation.19.Bedlift
9.Enginepower(gasolinemachinesonly)
20.Headlightsandhazardlights
10.USB/telematics
21.Horn
11.Alternator,powersteering,andspeedsensorenable
decal144-2259
144-2259
Note:*Replacemorefrequentlyindustyordirtyconditions
**Checkat250hours,replaceat1,000hours
***1,000hoursor5years;whichevercomessooner
1.Fronttirepressure
5.Engine-airlter9.Sparkplugandgap
distance
13.Hours
2.Reartirepressure(varies
dependingoncargoload)
6.Positivecrankcase
ventilation(PCV)valve
10.Frontdifferentialuid
3.ReadtheOperator’s
Manualbeforeperforming
maintenance.
7.Transaxleuid11.Brakeuid
4.Engineoilandlter
8.Drivebelt12.Enginecoolant
