2.3.1 Loading the Media
The following procedure shows the steps to properly load the media into
the printer so that it feeds straight through the printer.
The printer prints both labels and tags.
1. Open the Top Cover.
2. Turn the Head Lever to the FREE position and release the Ribbon
Shaft Holder Plate or Drive Holder Plate.
3. Open the Print Head Block.
4. Move the Paper Guide R to the rightmost position or shift the guide
to the horizontal position.
5. Put the media on the Paper Holder.
6. Pass the media around the Paper Holder, and then pull the
media towards the front of the printer.
7. Push the Paper Guide against the media until the media is held
firmly in place. To lock the Media, shift the Paper Guide R to
vertical position

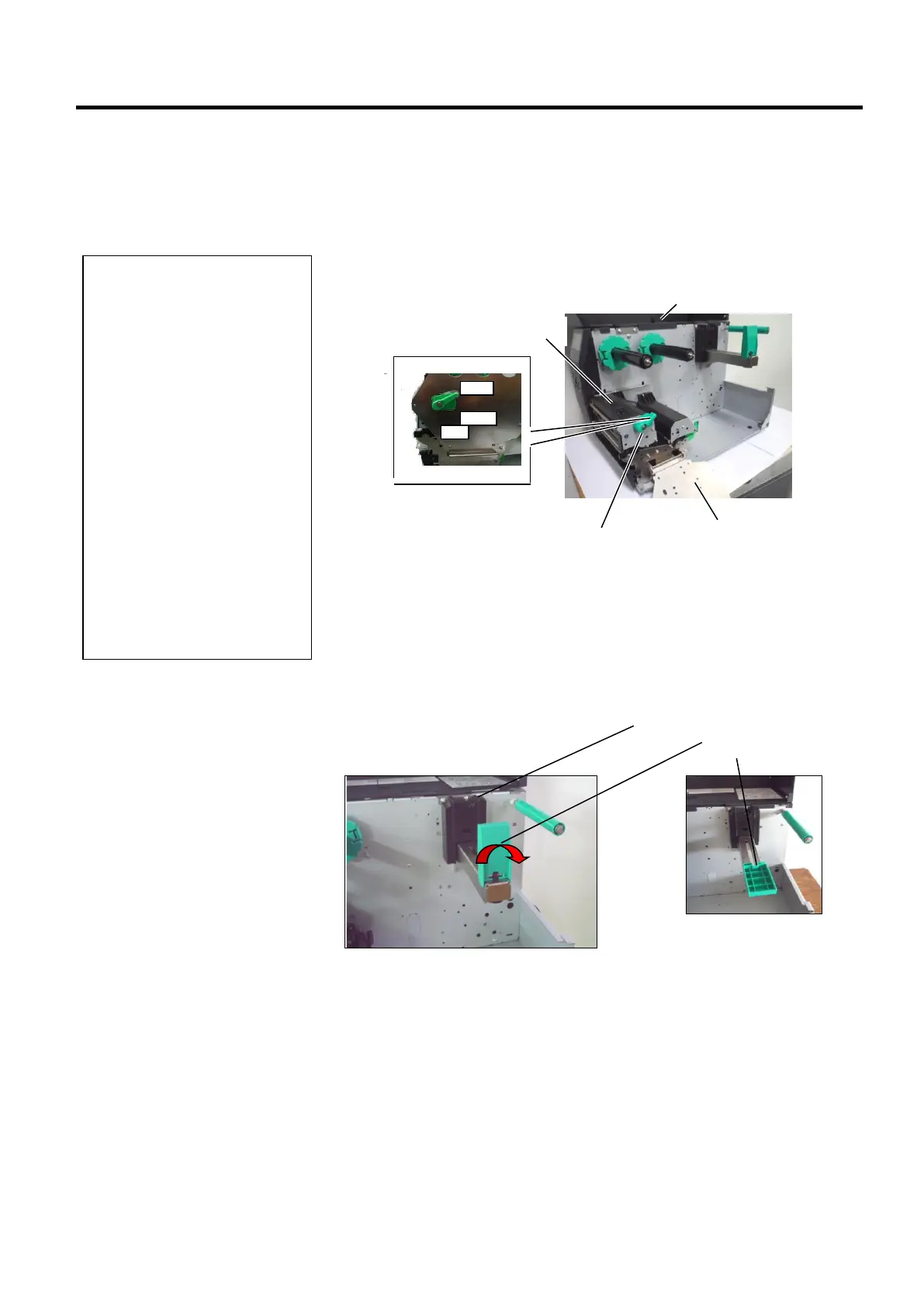

Ribbon Shaft Holder Plate
For D2 model, Drive Holder Plate
NOTES:
1. When the Head Lever is
turned to FREE position, the
Print Head can be raised.
2. To enable printing the Head
Lever must be set to the
LABEL / TAG position.
(This ensures that the Print
Head is closed.)
There are two head
pressure levels in the
LABEL / TAG position. Set
the Head Lever depending
on the media type:
Position LABEL: Labels
Position TAG : Tags
However, proper position
may differ depending on
media. For details, refer to
your TOSHIBA TEC
authorised service
representative.
