Toshiba B-EX4T2 SERIES - Connecting the Cables to Your Printer

2.PRINTER SETUP
18
2.4 Connecting the Cables
to Your Printer
The following paragraphs outline how to connect the cables from
the printer to your host computer, and will also show how to
make cable connections to other devices. Depending on the
application software you use to print labels, there are 5 ways to
connect the printer to your host computer. These are:
 An Ethernet connection using the printer’s standard LAN
connector.
 A USB cable connection between the printer’s standard USB
connector and your host computer’s USB port. (Conforming to
USB 2.0)
 A serial cable connection between the printer’s optional RS-232
serial connector and one of your host computer’s COM ports.
 A parallel cable connection between the printer’s optional parallel
connector and your host computer’s parallel port (LPT).
 Wireless LAN using an optional Wireless LAN board.

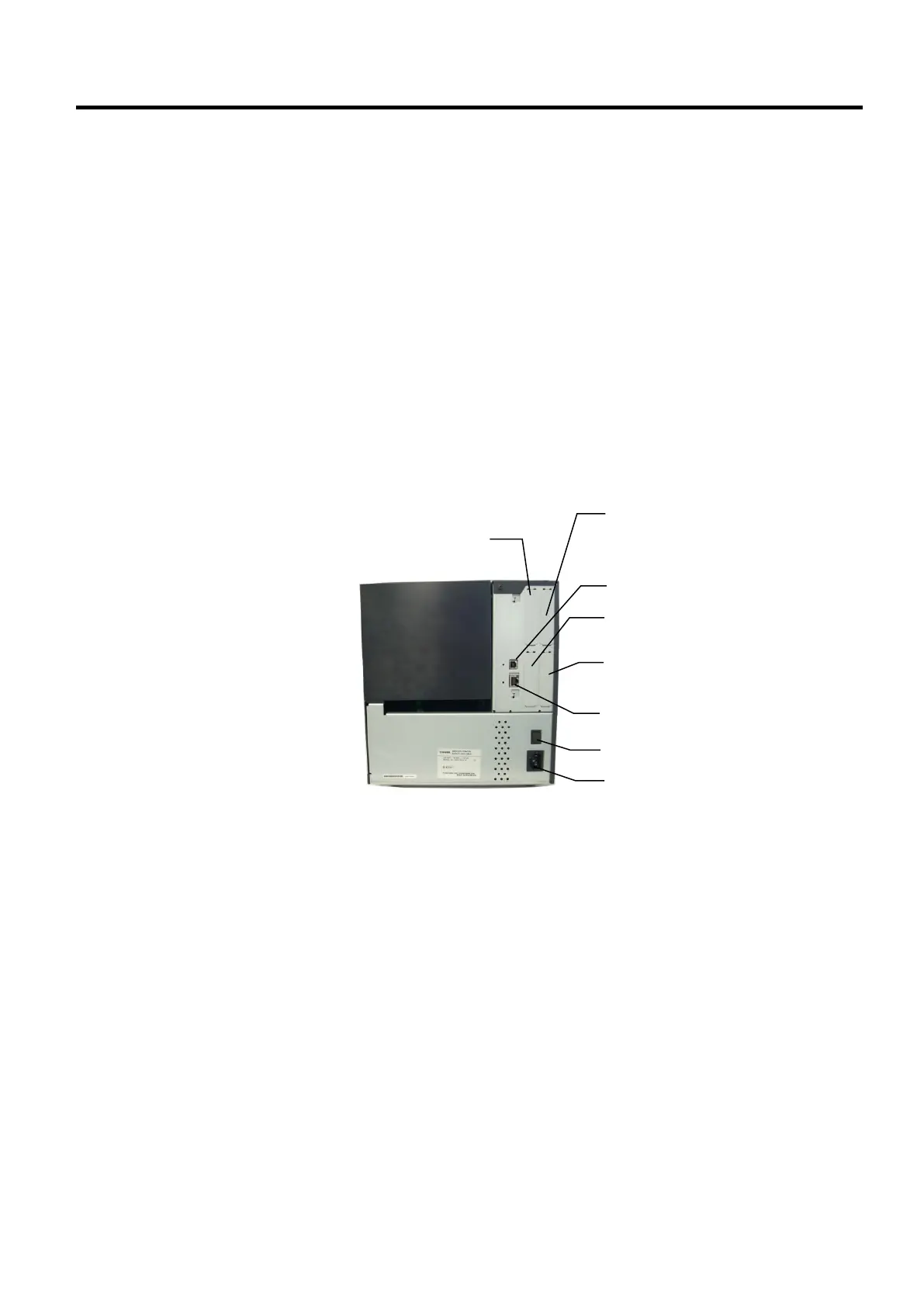

Reserved for
Parallel Interface
Reserved for Serial or WLAN
Interface or WLAN Interface
Reserved for
Expansion I/O Interface
USB Interface
LAN Interface
Power Switch
AC Power Inlet
Reserved for RTC & USB
Host interface
