Toshiba Qosmio F40 User Manual

4 Replacement Procedures 4.12 VGA Cooling Module and VGA Board
4.12 VGA Cooling Module and VGA Board (for VGA Board Model)
Removing the VGA Cooling Module and VGA Board
Remove the VGA Cooling Module and VGA Board according to the following procedures
and Figure 4-22.
1. Remove two M2x5 black flat head screws.
2. Remove the VGA thermal module bracket.
3. Remove the VGA thermal module.
4. Remove two M2x3 black flat head screws form VGA board.
5. Remove the VGA board.
VGA thermal module
VGA thermal
module bracket
M2x5 black flat head screw
M2x3 black flat head screw
VGA board

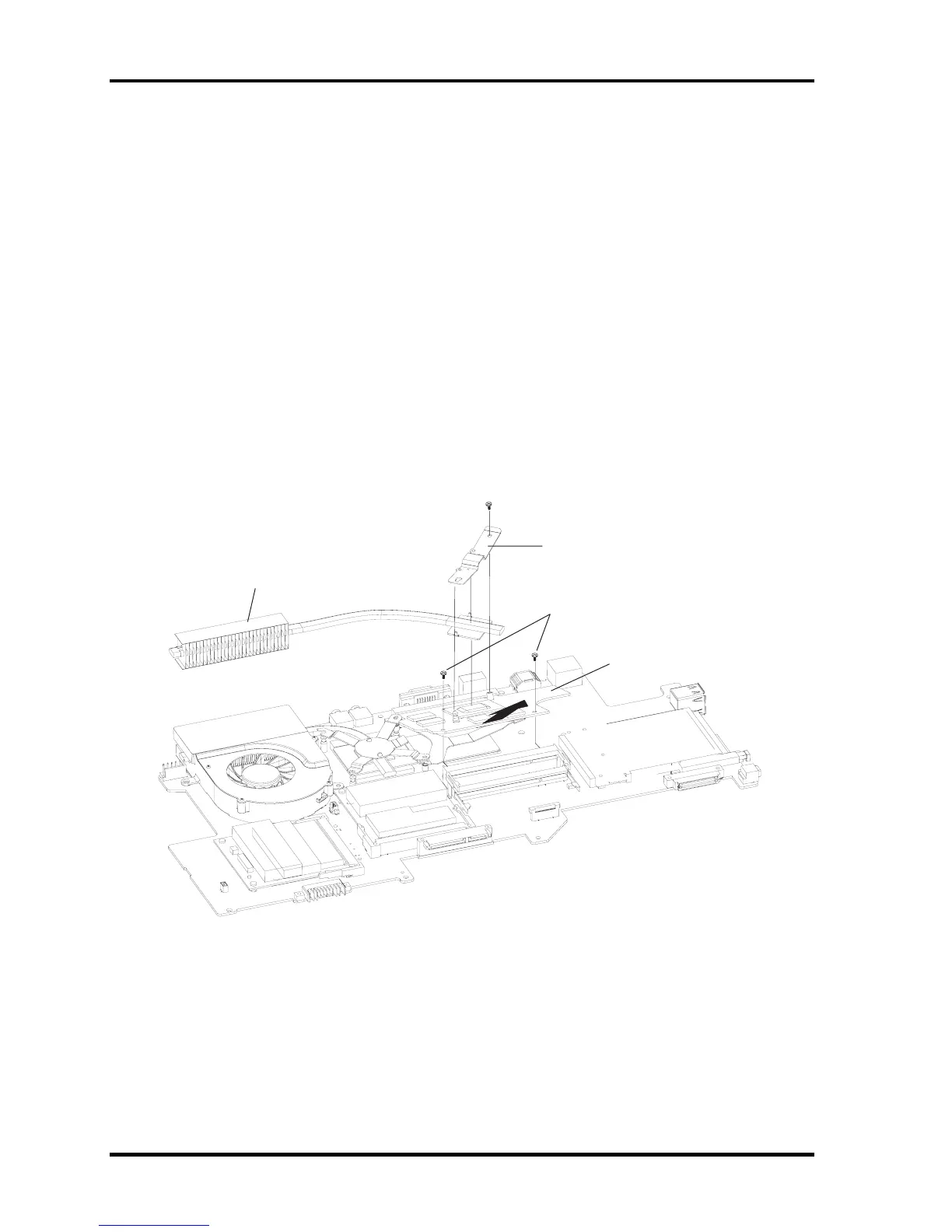

Figure 4-24 Removing the VGA Cooling Module and VGA Board
4-46 Qosmio F40/F45 Maintenance Manual
