1. System Configuration

PI/O System Configuration

The intelligent PI/O system consists of the communication base unit and the terminal block units

shown in Figure 1.1. A communication module is mounted on the communication base unit, and

intelligent PI/O modules on the terminal block units.

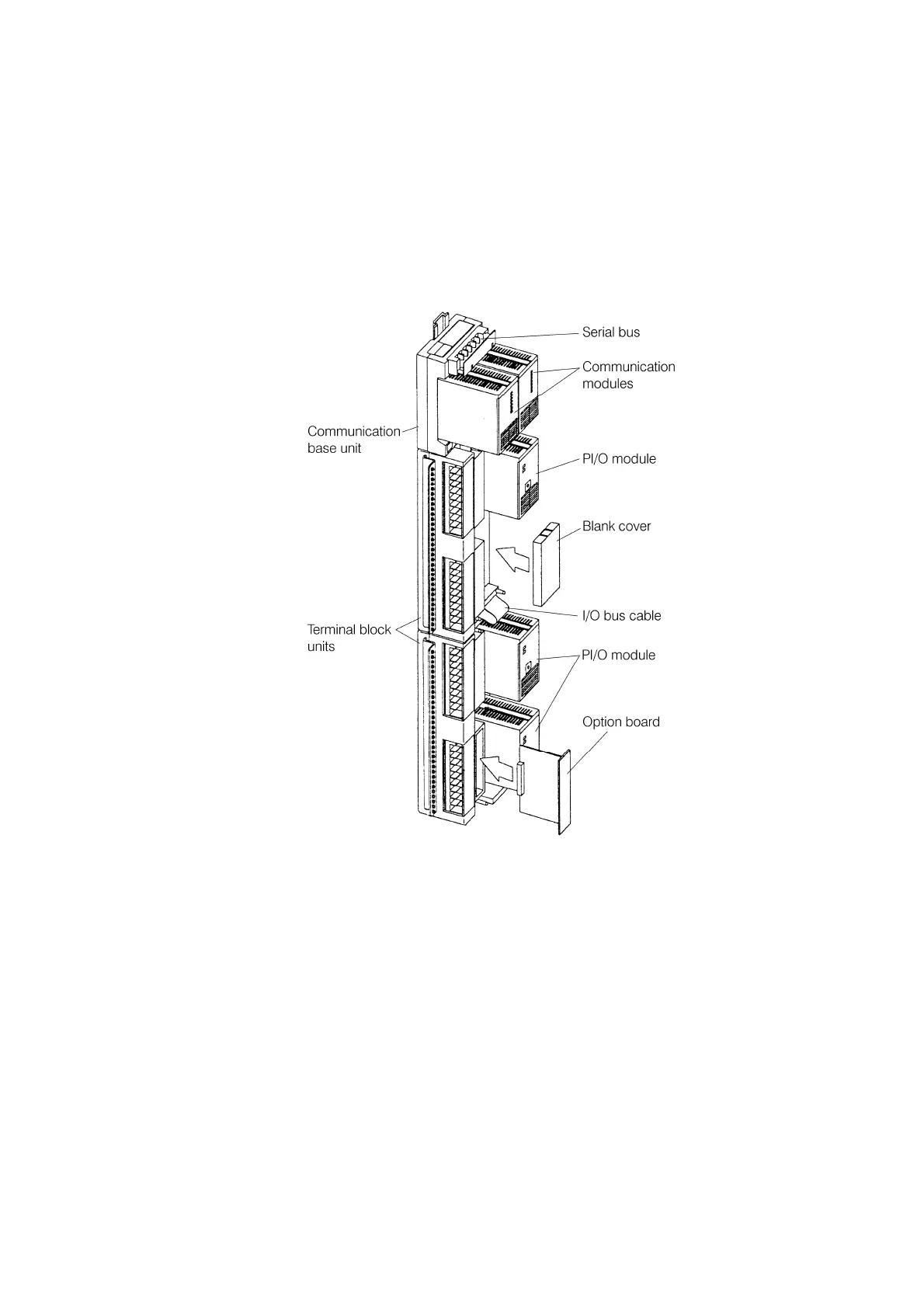

Figure 1.1 Intelligent PI/O system configuration
