2. Installation and Wiring
23
Terminal Block Unit Wiring and Connections
Connect the I/O bus cable and external wires to the terminal block unit.
NOTICE:
Be careful of attaching or removing a terminal block.
If the terminal block is removed with the external wiring connected, a conductor will be
exposed on the rear of the terminal block, may cause of trouble.
I/O bus cable connection
Connect the I/O bus cable to the I/O bus connector on the terminal block unit according to the
following procedure.
1) Connect the I/O bus cable in sequence, starting from the communication base unit and
proceeding to the last stage terminal block unit.
2) Connect an FSTM1 termination resistor (accessory to the USCB1) to the last stage
terminal block unit I/O connector.

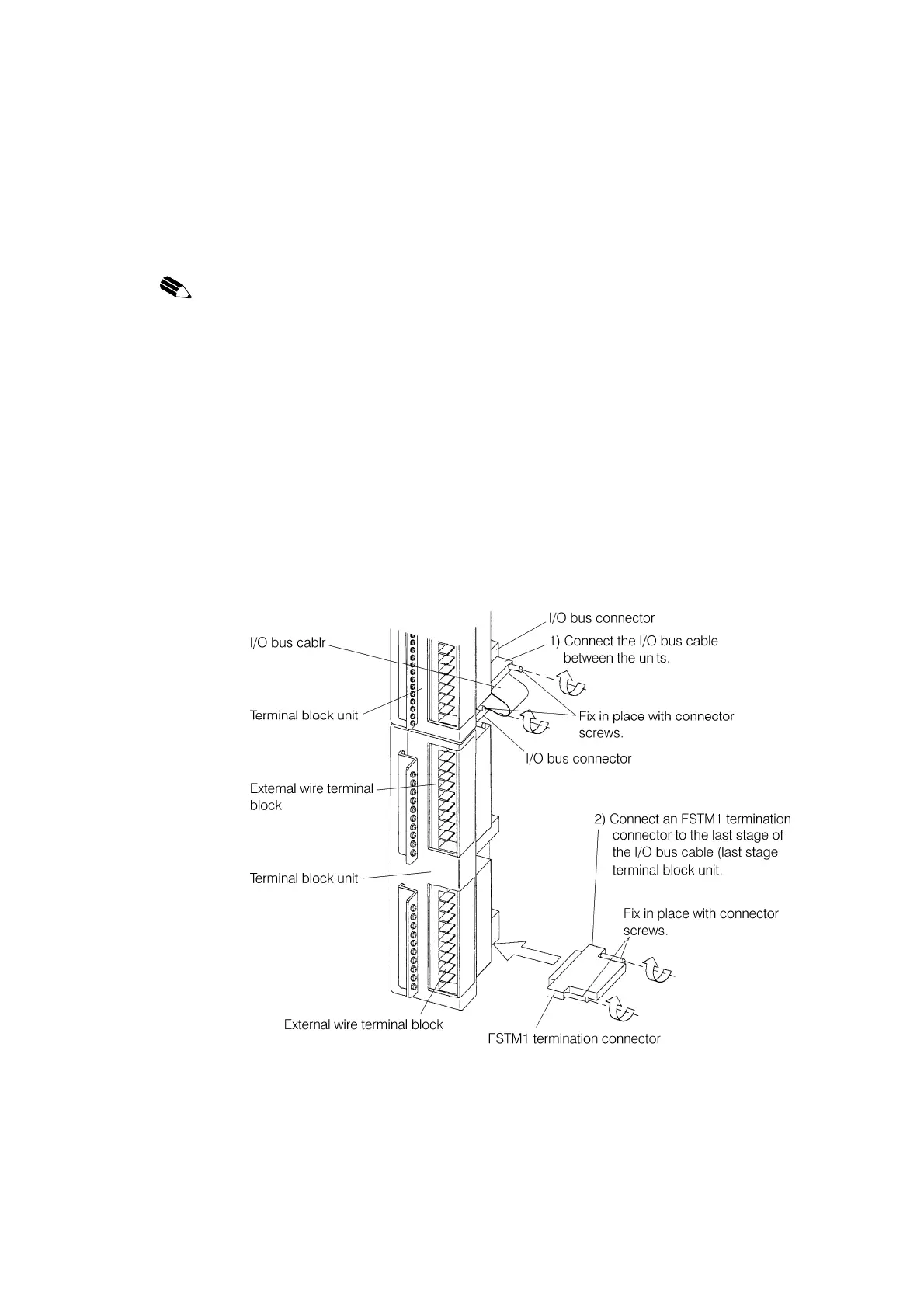

Figure 2.13 I/O bus cable connection
