Toshiba TOSDIC-CIE DS User Manual

2. Installation and Wiring
25
Mounting the module.
Mount the module according to the following procedure (Figure 2.15).
1. Push the module in until the claw on the bottom of it engages the guide at the rear of the
terminal block unit, I/O base unit or communication unit 1).
2. Push the top of the module all the way in to the terminal block unit or communication base
unit 2)).
3. Tighten the mounting screw at the top of the module with a plus (+) screwdriver 3)).

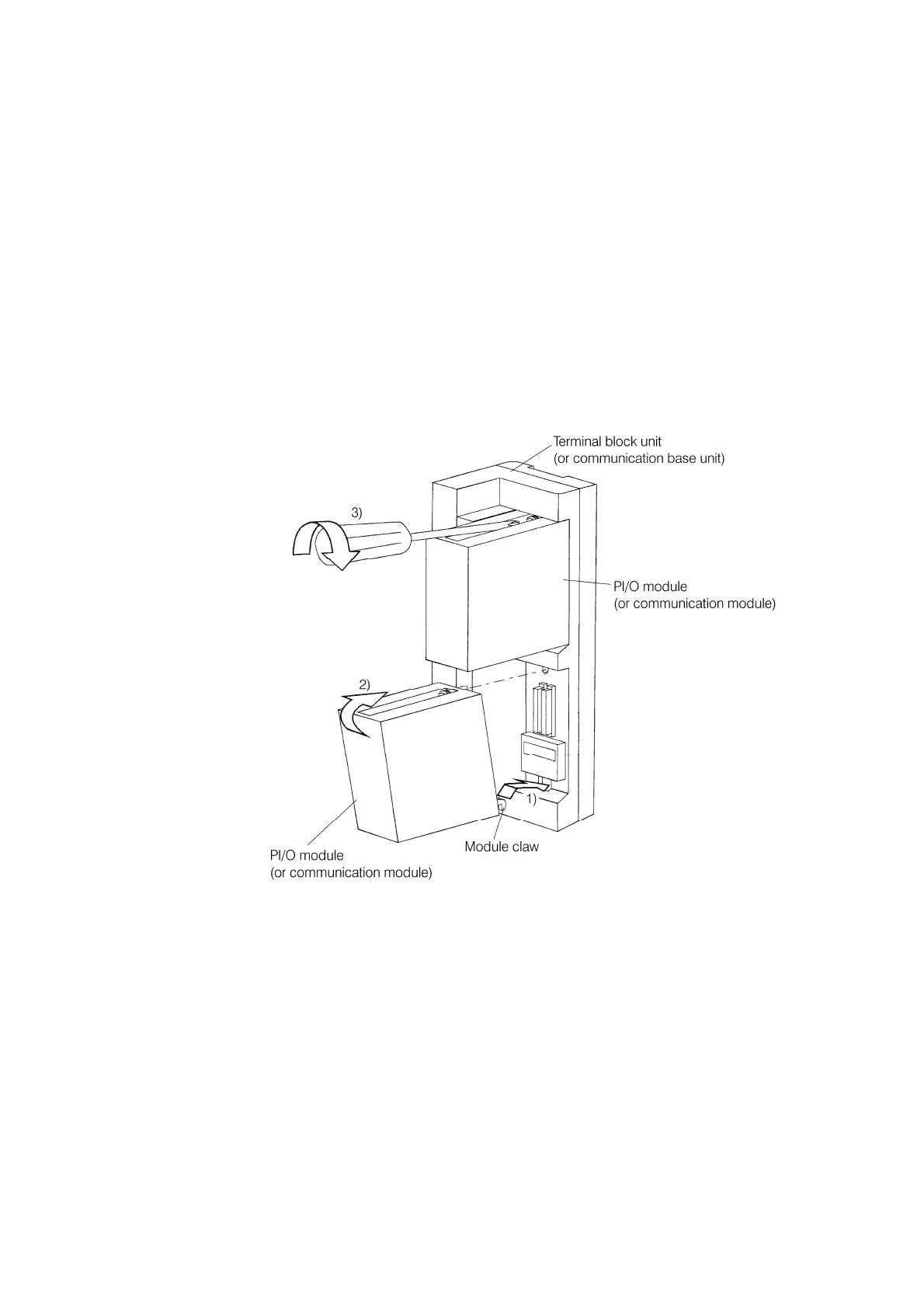

Figure 2.15 Module mounting
