parameters will be automatically reset to the factory default values after an option
ROM has been removed from the inverter. If it is desired to retain the current
parameter settings, the user should access the user-changed parameter group to
display and record all the parameters and setting values that have been changed from
factory defaults. Even if the current settings are saved using the TYPE 5 RESET
function, they will be erased from memory during the re-initialization of the inverter
after the option ROM has been removed.
1.3.2 Removal Procedure
1. CAUTION! Verify that all input power sources to the inverter have
been turned OFF and are locked and tagged out.
2. DANGER! Wait at least 5 minutes for the inverter’s electrolytic
capacitors to discharge before proceeding to step 3. Do not touch any internal
parts with power applied to the inverter, or for at least 5 minutes after
power to the inverter has been removed. A hazard exists temporarily for
electrical shock even if the source power has been removed.
3. Remove the inverter’s cover (open the door on units with hinged doors).
Verify that the CHARGE LED has gone out before continuing the removal process.
4. Loosen the 4 screws attaching the operation panel support bracket to the control
board support bracket and remove the operation panel and support bracket as a unit
(refer to Figure 3).
operation panel support
bracket screws
operation panel
support bracket

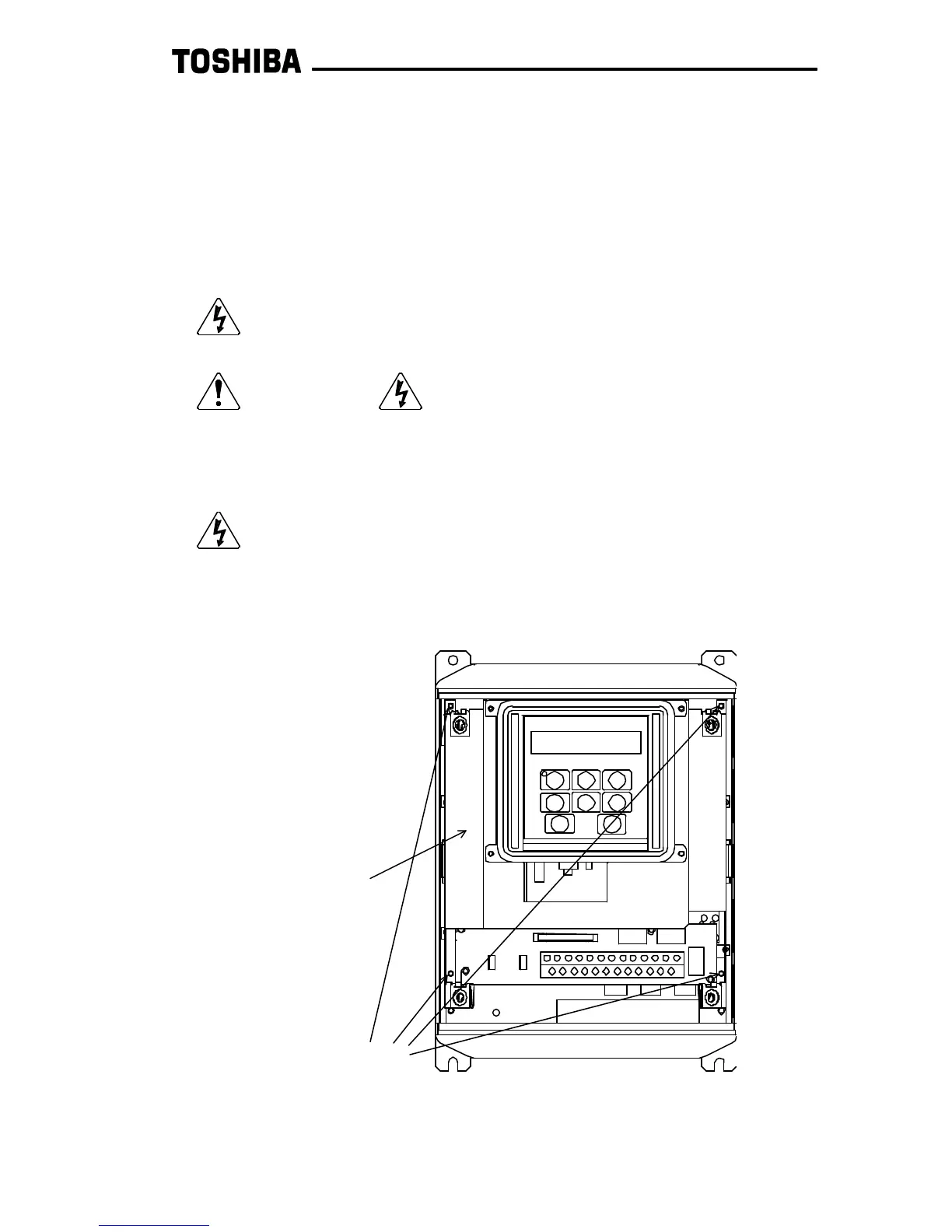

Figure 3: G3 with front cover removed
