3. DISASSEMBLY AND REASSEMBLY
SPAA-214-R1
3.2 DISASSEMBLING THE MAIN BODY
3-5
3.2.2 Removing the Cover Top

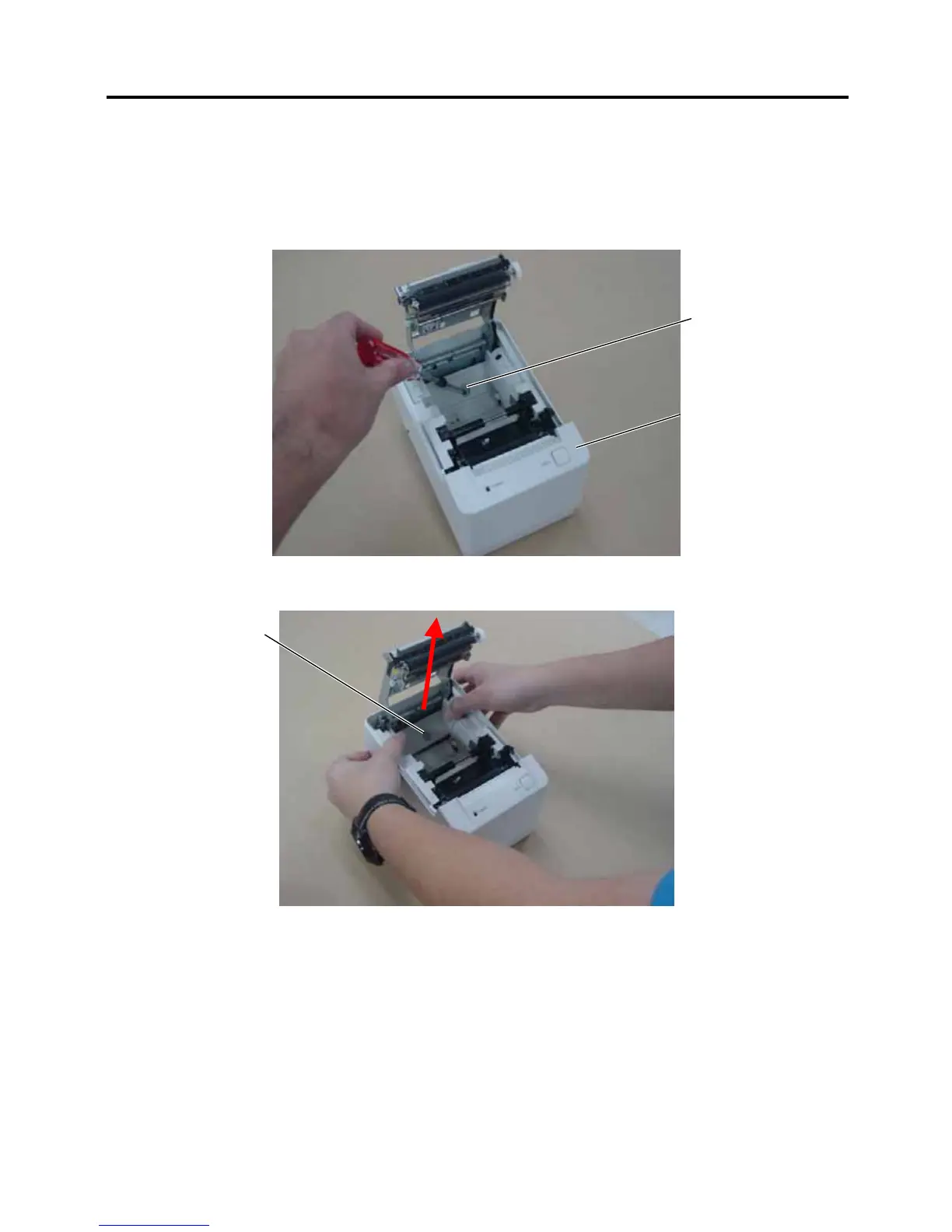

1. Unscrew the M3x8 double-sems screw which secures the Cover Top.
NOTE: When removing the screw, be careful not to touch the print head elements with the
screwdriver.
2. Remove the hopper by lifting it upwards.
M3x8 double
sems screw
Cover Top
Hoppe
To Next Page
