3. DISASSEMBLY AND REASSEMBLY
SPAA-214-R1
3.2 DISASSEMBLING THE MAIN BODY
3-12

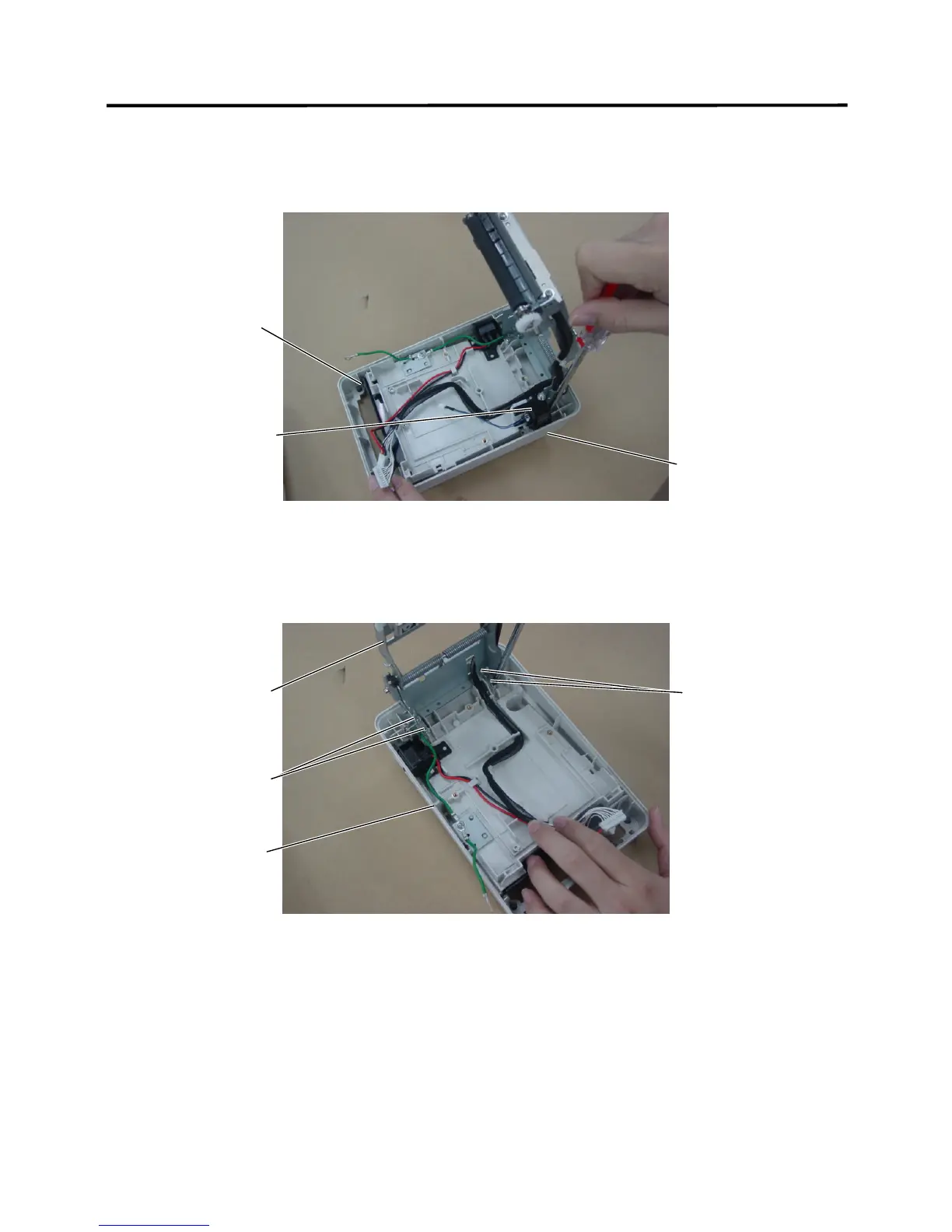

3.2.6 Removing the Paper Low Sensor
1. Remove the 3X8 p-tite screw connecting the Paper Low Sensor to the Cover Bottom. Lift
the Paper Low Sensor upwards to remove it.
3.2.7 Removing the Top Frame Block
1. Remove the four M3X8 double-sems screws connecting the Top Frame Block to the Cover
Bottom. Lift the Top Frame Block upwards to remove it.
Top Frame Block
Cover Bottom
M3x8 double-sems
Cover Bottom
Paper Low Senso
To Next Page
