3. DISASSEMBLY AND REASSEMBLY
SPAA-214-R1
3.2 DISASSEMBLING THE MAIN BODY
3-14
3.2.8 Disassembling the Bottom Frame

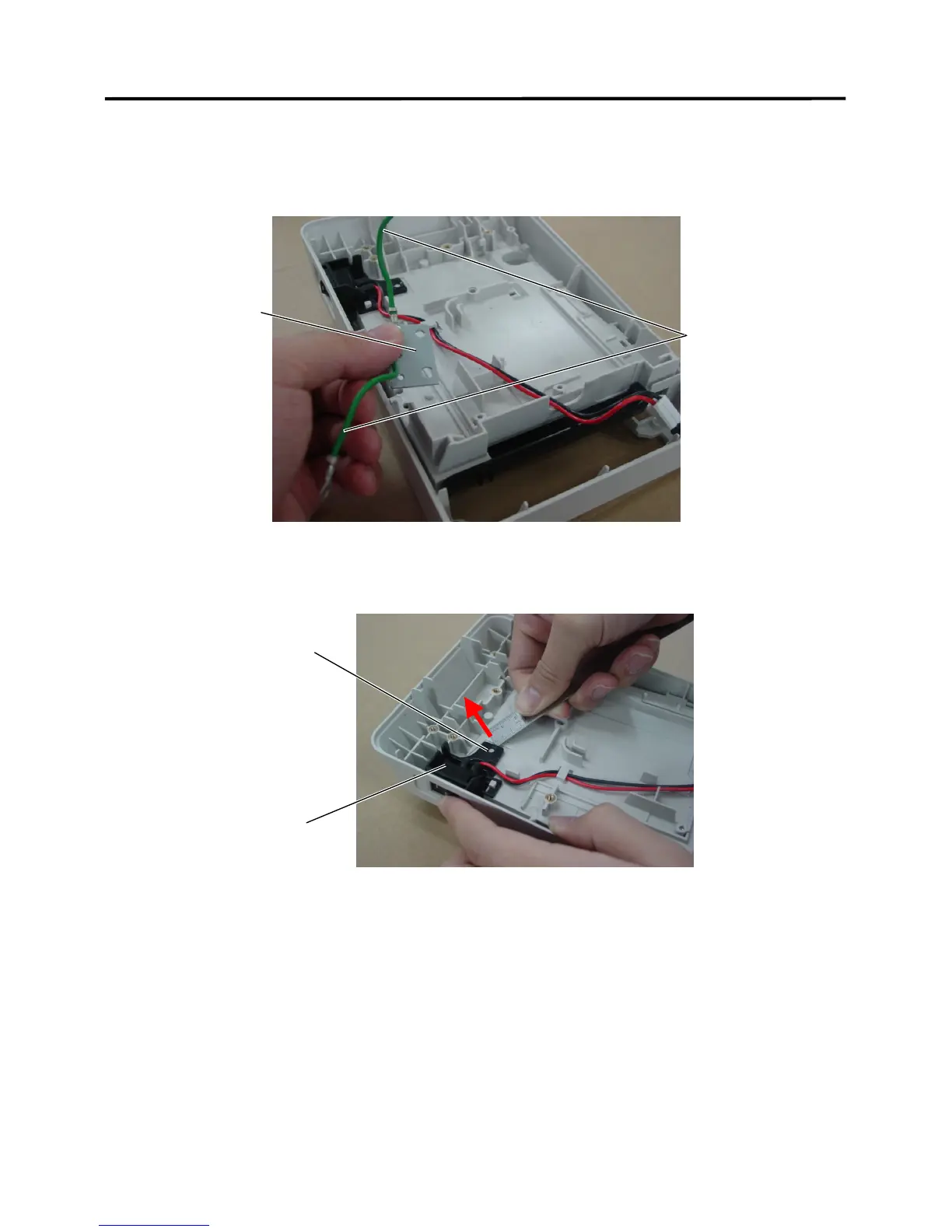

1. Remove the Earth Plate and Earth Wires (x2) by lifting it upwards.
2. Remove the Power switch block from the Cover Bottom by using any small flat object (for
example: tweezers or metal ruler) to bend it slightly above the emboss as shown in the
picture below.
Emboss
Power Button Block
Earth Plate
Earth Wires
