3. DISASSEMBLY AND REASSEMBLY
SPAA-214-R1
3.2 DISASSEMBLING THE MAIN BODY
3-7

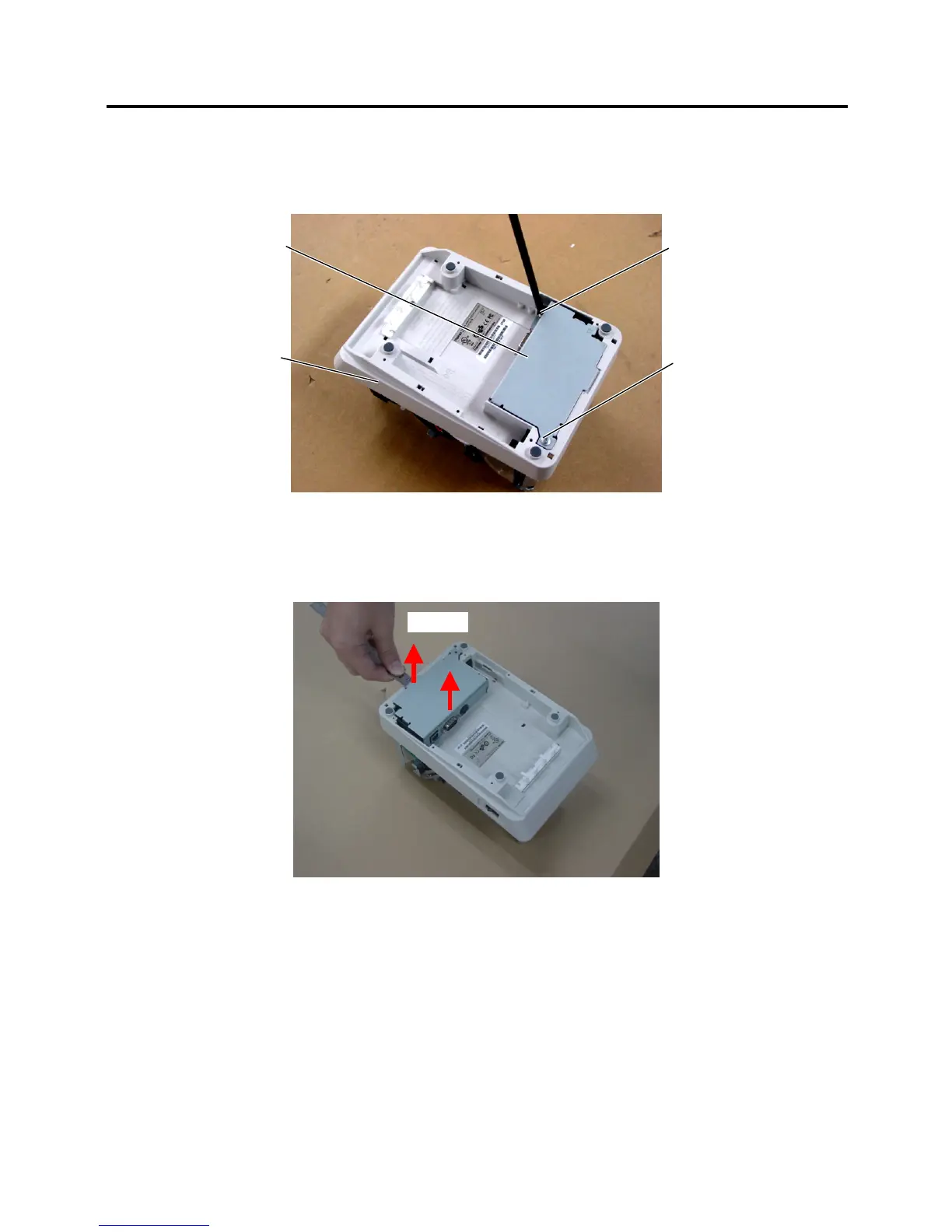

3.2.3 Removing the Interface Card
1. Move the 2 screws which secure the Interface card to the Cover Bottom.
2. Use a small flat object (for example: tweezers or metal ruler) to lift the Interface Card out
from the Cover Bottom. Pull upwards at the other end of the interface card bracket
simultaneously to lift the interface card out.
3x8 s-tite screw
3x6 s-tite screw
Cover Bottom
Interface Card
Lift up
