2. INSTALLATION PROCEDURE
SPAA-214-R1
2.1 CONNECTING THE TRST-A15 TO THE POS TERMINAL
2-2
3. Connect and secure the interface cable to the interface connector in the correct orientation.
Serial interface: Secure the connector with the screws.
USB interface: Securely insert the connector until a positive click is heard.
Parallel interface: Secure the connector with the locking tabs.

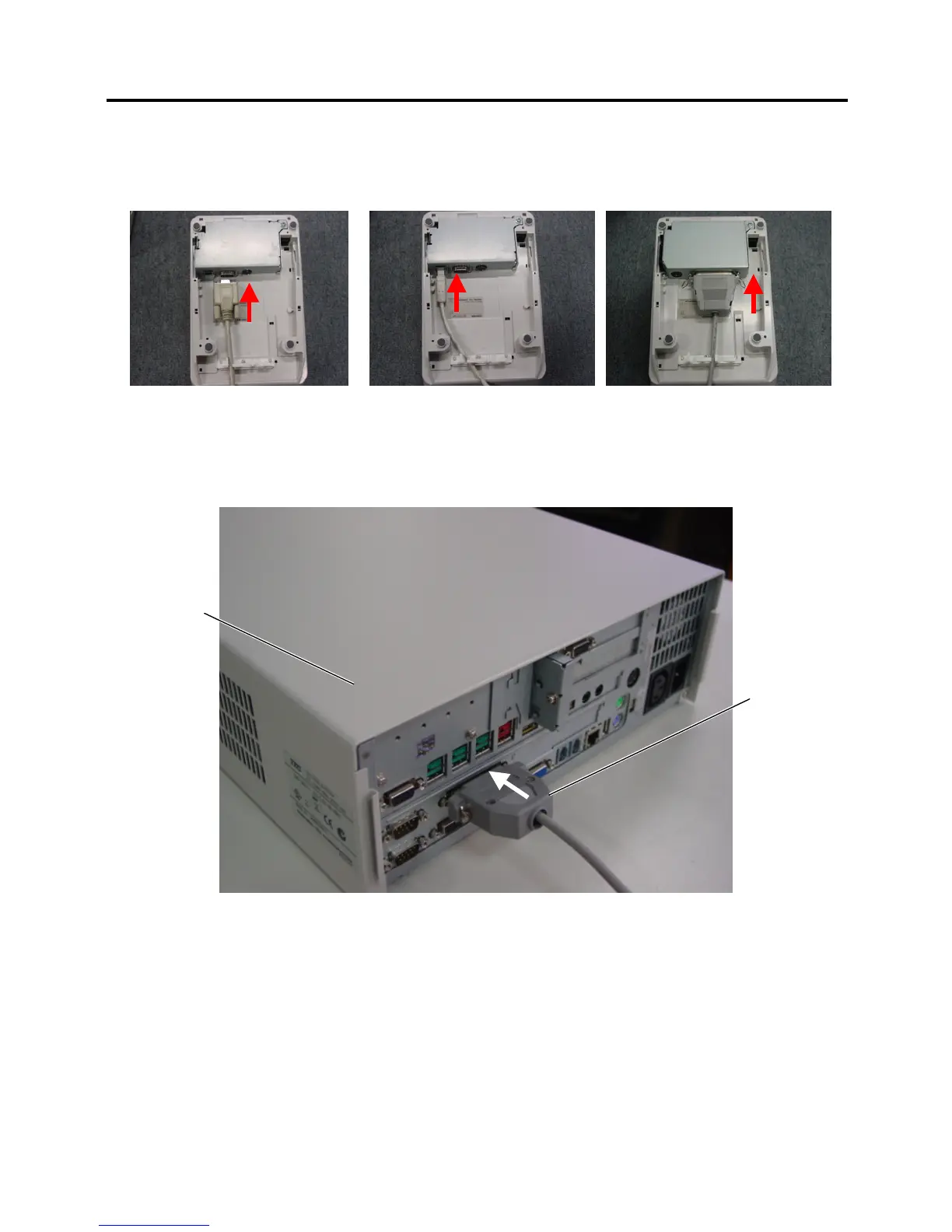

[Serial Interface Connector] [USB Interface Connector] [Parallel Interface Connector]
4. Connect the interface cable to the TOSHIBA POS terminal or Personal Computer, and then
plug in the power cord to the AC outlet.
Carton
Interface Cable
To Next Page
