8. Monitoring the operation status
8.1 Screen composition in the status monitor mode
The status monitor mode is used to monitor the operation status of the inverter.
⇒ For modes available and instructions about how to switch them, refer to section 3.1.

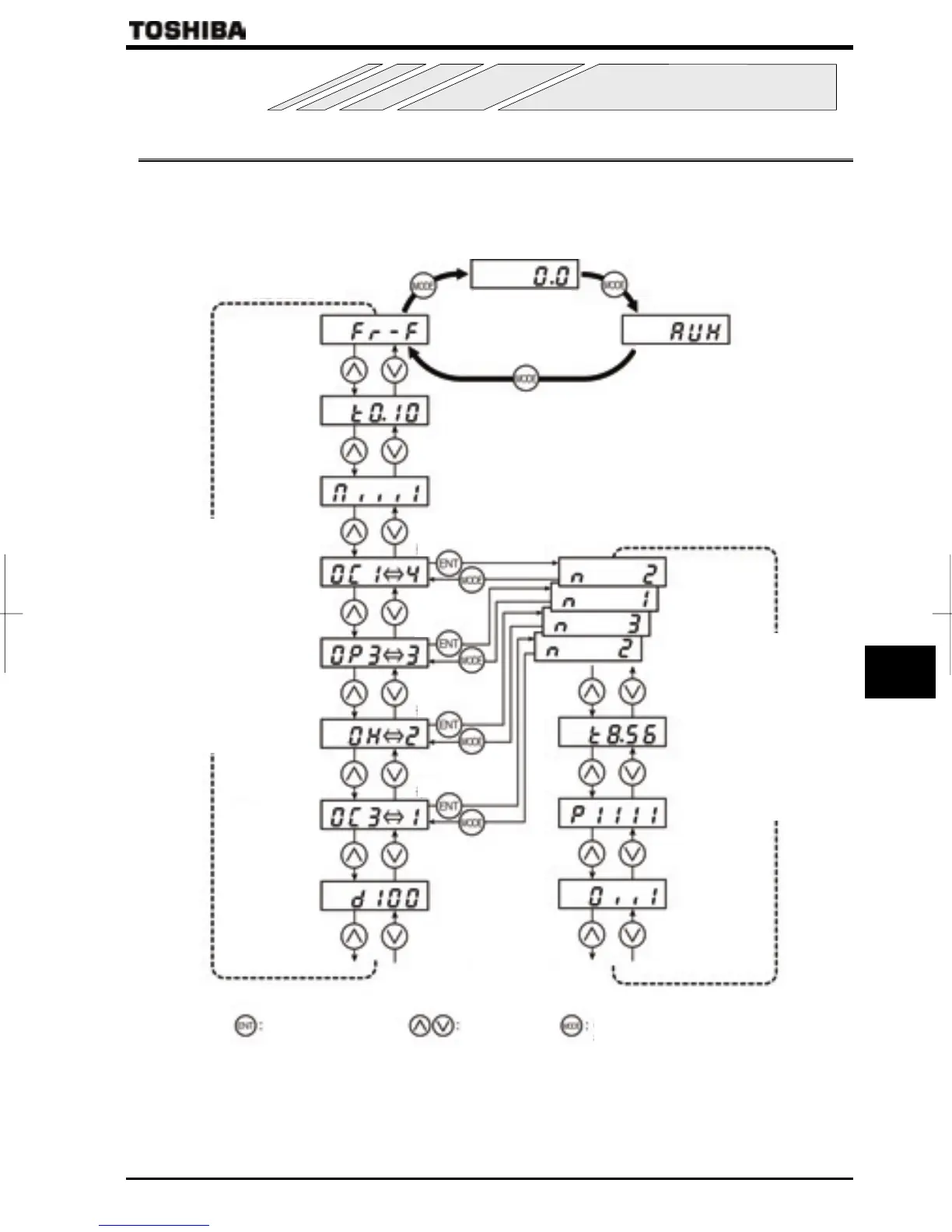

Here is the screen composition in the status monitor mode.
*
Enter key
Used to set values and
return to previous menu
Select key
Used to select
item
Mode key
Used to select mode
and operation level
Status monitor mode
*
*
*
Standard monitor mode
(when the power is turned on)
Setting monitor mode
22 kinds of
p
arameter are dis
p
la
y
ed
At normal operation – Operation status is displayed => Refer to Section 8.2.1 When tripped – A trip is displayed => Refer to Section 8.4.2
Details of past trip history (4 kinds) 10 kinds of tri
p
are dis
p
la
y
ed => Refer to Section 8.2.2
10 kinds of tri
p
are dis
p
la
y
ed
* A trip and trip No. are displayed
alternately.
