E6581386
A-11
1

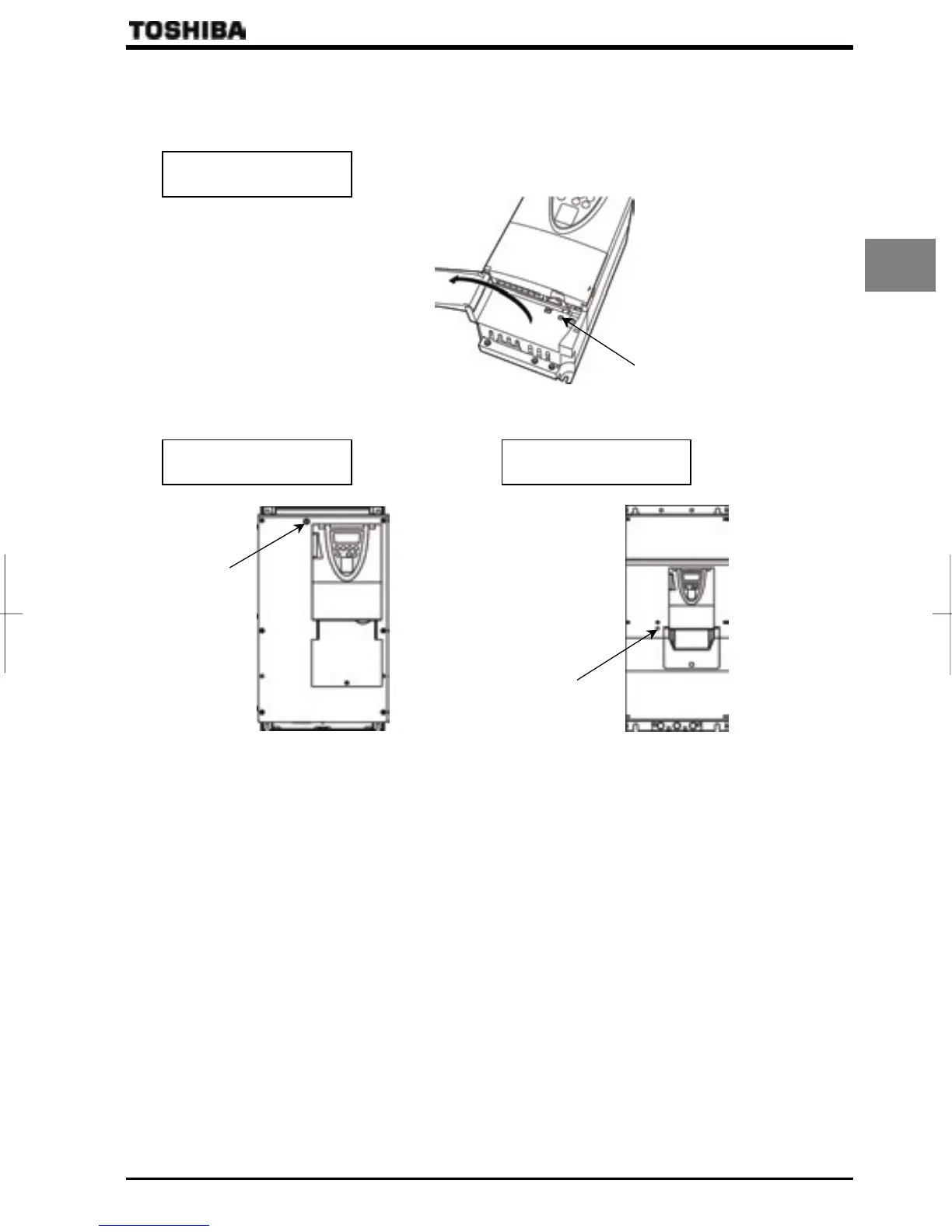

Q Charge lamp
This lamp is lit when a high voltage remains in the inverter. When removing the main circuit terminal cover or opening the
front cover, be sure to check that this lamp is off and follow the instructions about wiring on page 4.
The mounting position of the charge lamp varies from model to model.
VFPS1-2004PL~2150PM
VFPS1-4007PL~4185PL
VFPS1-2185PM~2450PM
VFPS1-4220PL~4750PL
VFPS1-2550P~2900P
VFPS1-4900PC~4630KPC
This lamp is placed behind the main circuit
terminal cover.
Charge lamp
Charge lamp
Charge lamp
