E6581386
J-10
10

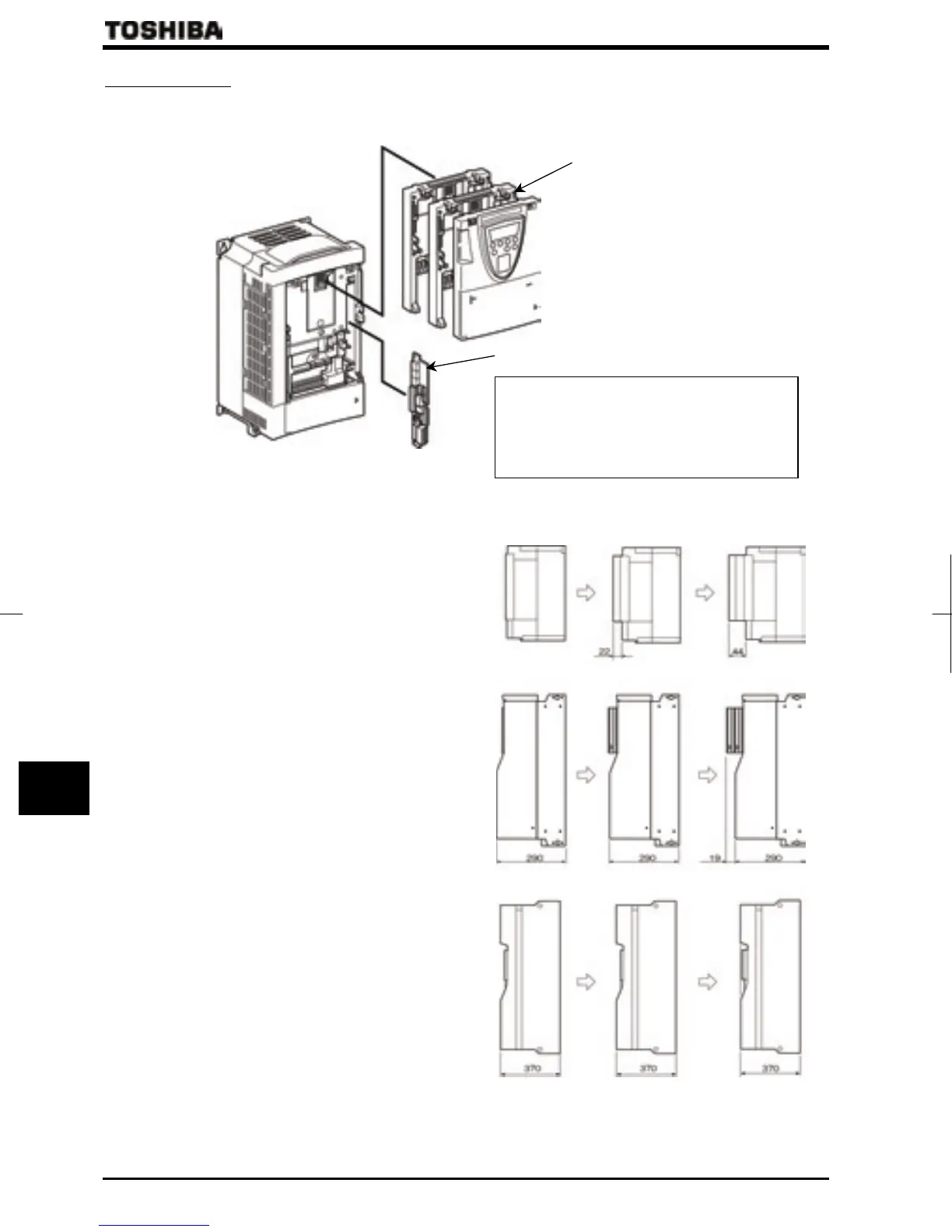

Q How to install
Add-on type devices and insertion type devices are installed in different ways. Install them correctly, as shown in the
figures below.
Add-on type
Plug-in type
Up to two Add-on type devices and one Plug-in type
device can be installed at the same time. Note,
however, that two identical optional devices and two
identical optional communication devices cannot be
connected and used.
Depending on the capacity, the installation of an Add-on type device may increase the depth of the inverter.
200V 0.4~45kW
400V 0.75~37kW
400V 45~75kW
200V 55~90kW
400V 90~630kW
Note: The inverters of these capacities
come equipped with an Add-on
type option case as standard.
When installing an optional
Add-on type device, remove the
case.
Standard type
+
one Add-on
Standard type
Standard type
+
two Add-on
