Toyota Prius+ - Fuse Layout and Amperage Ratings

437
4-3. Do-it-yourself maintenance
4
Maintenance and care
PRIUS +_OM_OM47821E_(EE)

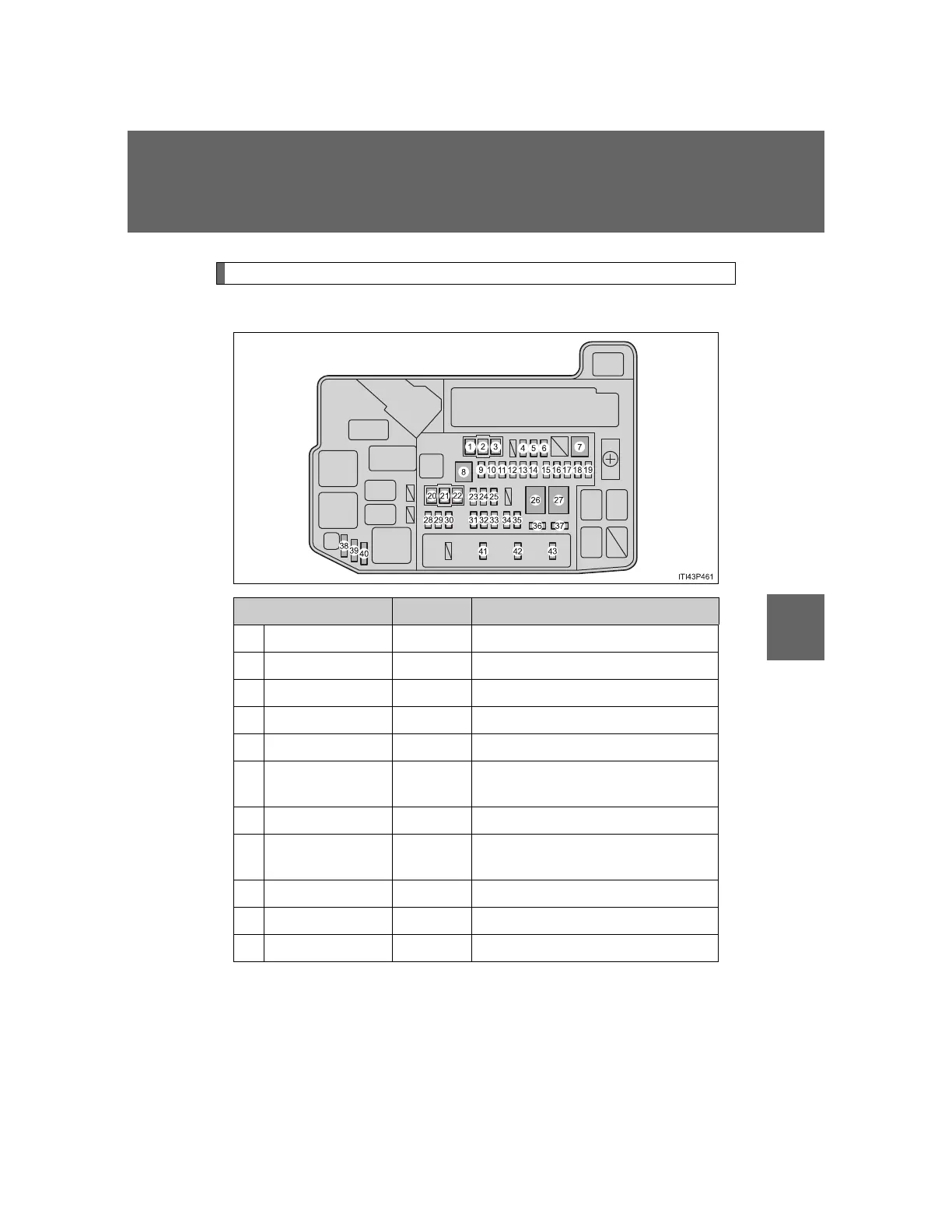

Fuse layout and amperage ratings
 Engine compartment
FUSE Ampere Circuit
1 HTR 50A Air conditioning system
2 RDI 30A Electric cooling fans
3 CDS 30A Electric cooling fans
4 S-HORN 10A S-HORN
5 ENG W/P 30A Cooling system
6
ABS MAIN
NO.2
7.5A Anti-lock brake system
7 H-LP CLN 30A Headlight cleaner
8 P-CON MTR 30A
P position control system, trans-
mission
9 AMP 30A Audio system
10 IGCT 30A PCU, IGCT NO.2, IGCT NO.3
11 DC/DC-S 5A Inverter and converter
