Toyota Prius+ - Left Side Instrument Panel

440
4-3. Do-it-yourself maintenance
PRIUS +_OM_OM47821E_(EE)

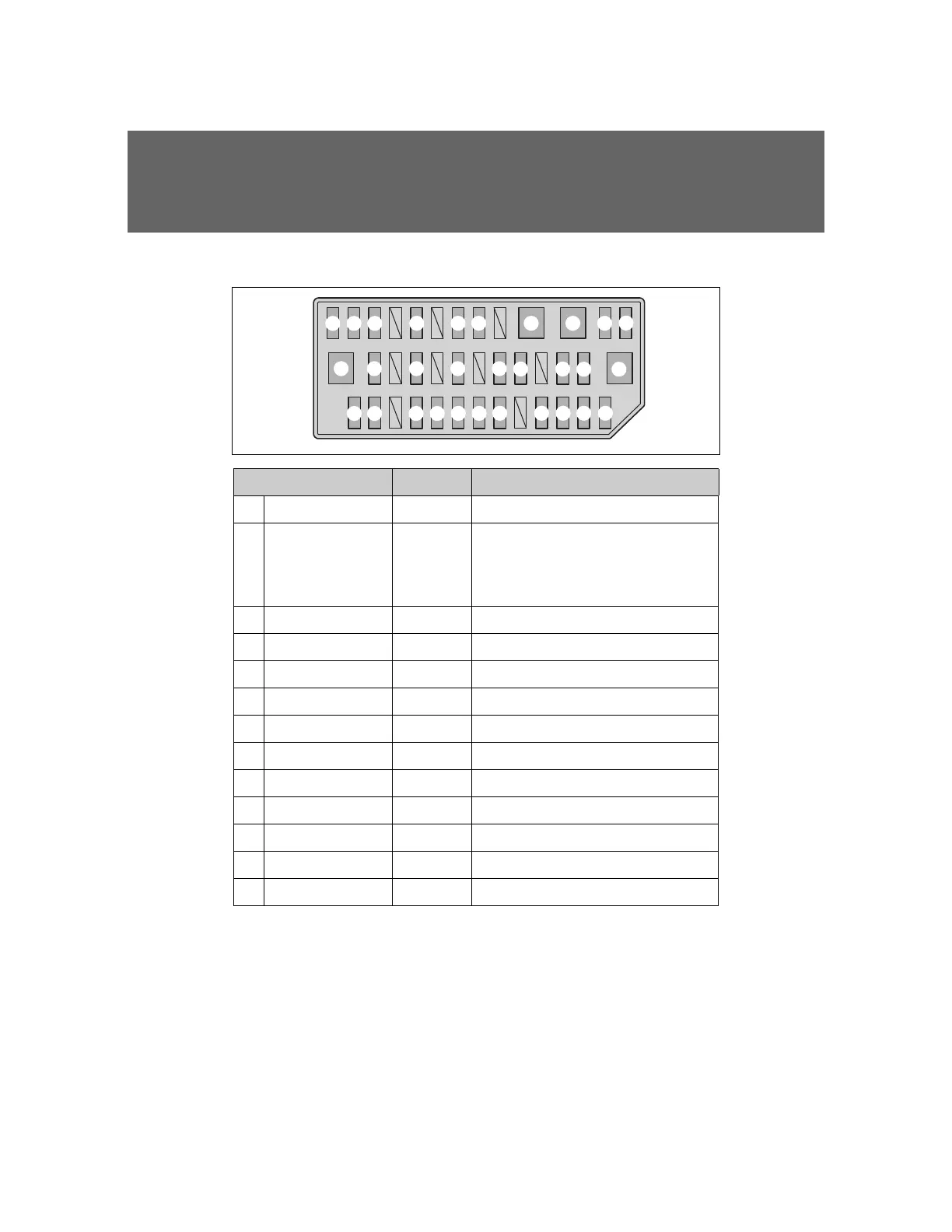

 Left side instrument panel
FUSE Ampere Circuit
1 CIG 15A Power outlets
2 ECU-ACC 10A
Multiplex communication system,
outside rear view mirrors, driver
support system, audio system,
navigation system
3 PWR OUTLET 15A Power outlets
4 SEAT HTR FR 10A Seat heater
5 SEAT HTR FL 10A Seat heater
6 DOOR NO.1 25A Power door lock system
7 PSB 30A Pre-crash safety system
8 PWR SEAT FR 30A Front seat lumbar support
9 DBL LOCK 25A DBL LOCK
10 FR FOG 15A Front fog lights
11 PWR SEAT FL 30A Front seat lumbar support
12 OBD 7.5A On-board diagnosis system
13 RR FOG 7.5A Rear fog light
