TP-Link Archer D9 - Default Gateway; Static Route

Ar che r D9
AC1900 Wireless Dual Band Gigabit ADSL2+ Modem Router User Guide
4.12.1 Default Gateway
Choose “Route Se ttings”“De fault Gateway”, you can see the Default Gateway screen. You
can select a WAN Interface from the drop-down list as the system default gateway.

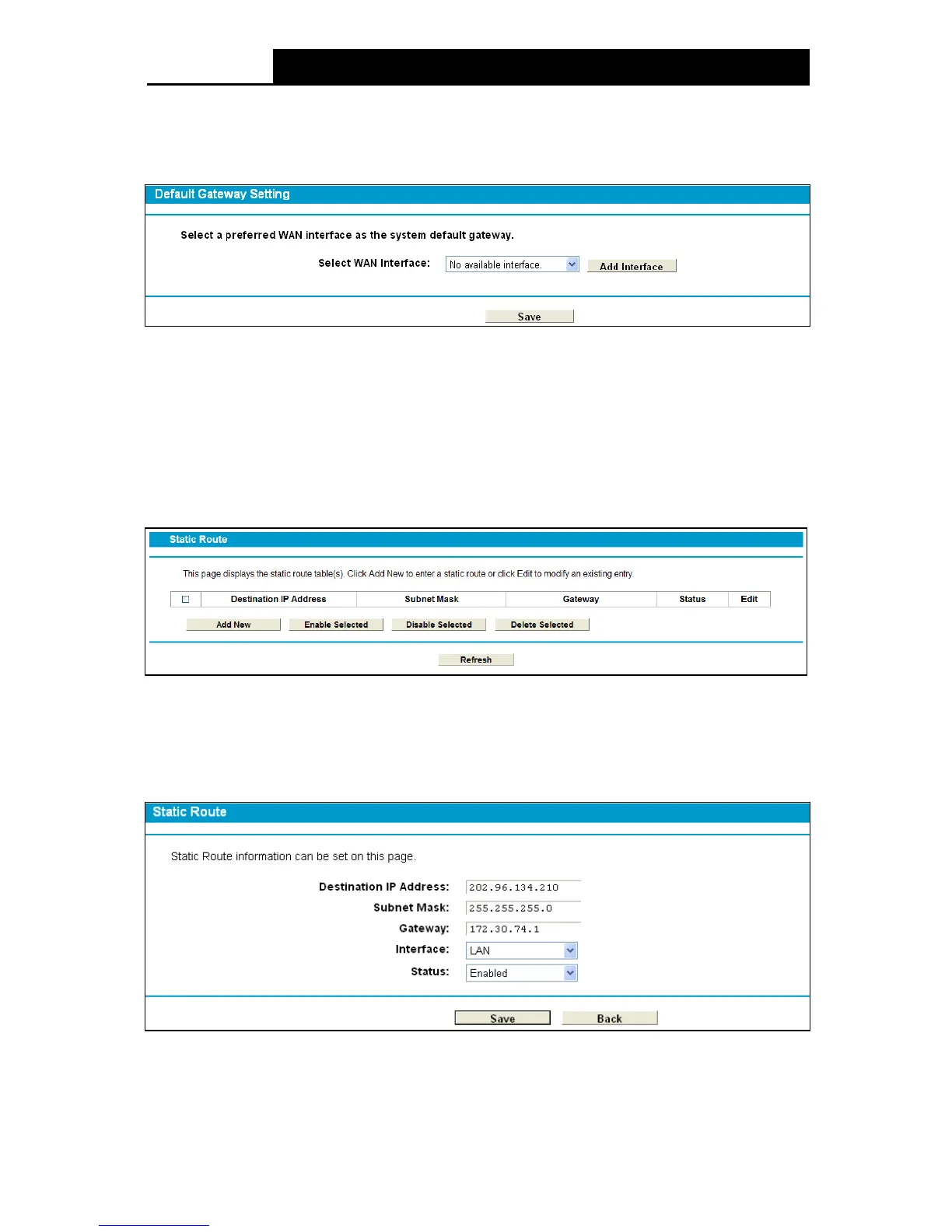

Figure 4-66
Click the Add Interface button, you can add WAN Interfaces.
Click the Sav e button to save your settings.
4.12.2 Static Route
Choose “Route Se t tings” “Static Route”. You can see the Static Route screen, this screen
allows you to configure the static routes (shown in Figure 4-67). A static route is a pre-determined
path that network information must travel to reach a specific host or network.
Figure 4-67
To add static routing entries:
1. Click the Ad d New button in Figure 4-67, and you will see the screen as shown in Figure
4-68.
Figure 4-68
2. Enter the following data:
 De stination IP Address: The address of the network or host that you want to assign to a
74
