TP-Link Easy Smart Switch User Manual

User Guide 10
Managing System Configuring IP
3
Configuring IP
You can configure the system IP address in the following two ways:
■ Configure the System IP Address Using DHCP
■ Configure the System IP Address Manually
Configuring the System IP Address Using DHCP
Choose the menu System > IP Setting to load the following page.

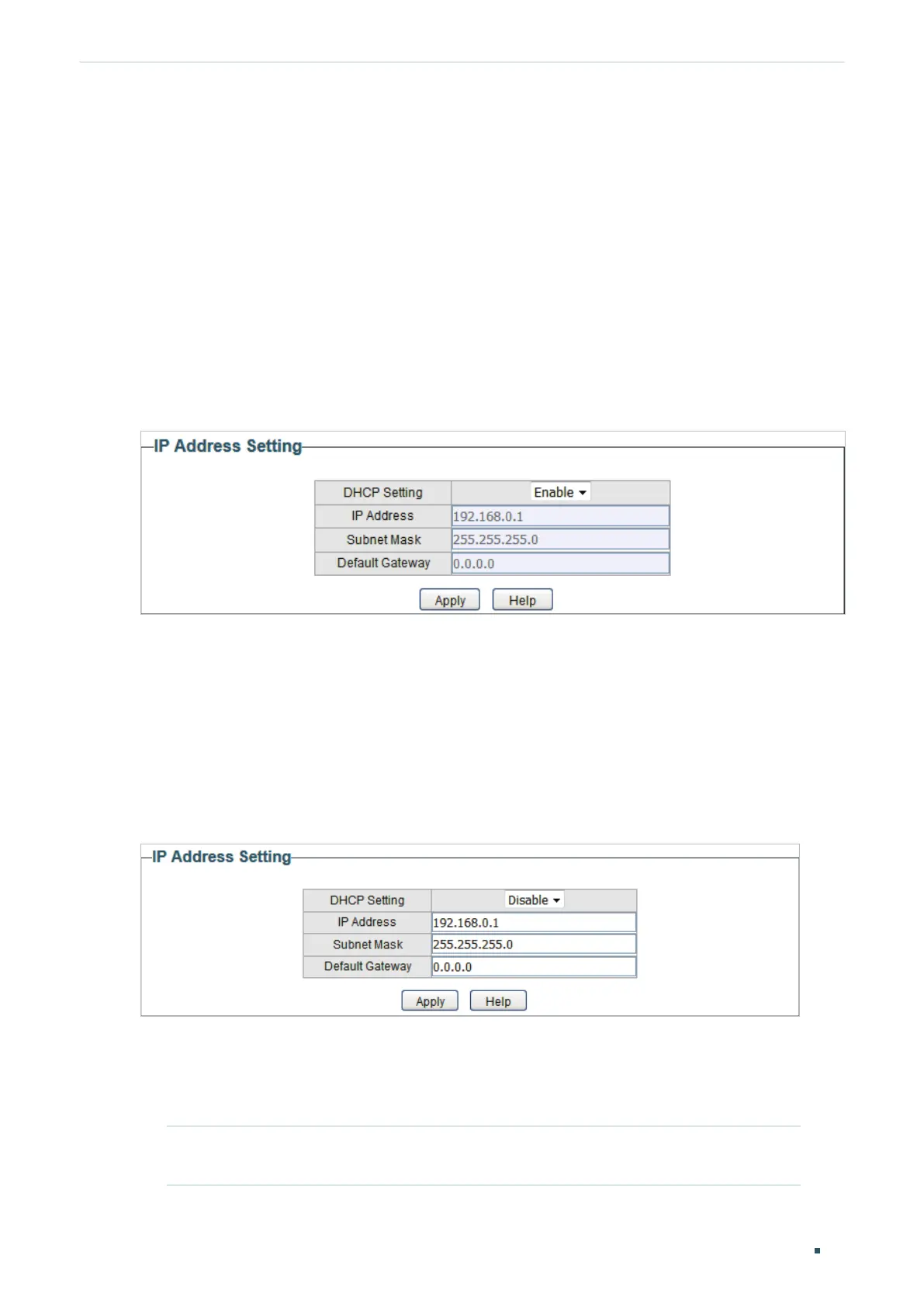

Figure 3-1 Configuring System IP Address Using DHCP
Follow these steps to configure the system IP address using DHCP:
1) Select DHCP setting as Enable from the drop-down list .
2) Click Apply. The switch will obtain IP settings from the DHCP server.
Configuring the System IP Address Manually
Choose the menu System > IP Setting to load the following page.
Figure 3-2 Configuring System IP Address Manually
Follow these steps to configure the system IP address manually:
1) Select DHCP setting as Disable from the drop-down list.
2) Specify the IP address, subnet mask and default gateway.
IP Address Specify the system IP of the switch. You can use this IP address to access
the switch.

TP-Link Easy Smart Switch Specifications

General

Cable Diagnostics	Yes
Power Input	100-240VAC, 50/60Hz
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Model	Easy Smart Switch
Port Type	RJ45
Speed	10/100/1000Mbps
MAC Address Table	8K
Jumbo Frame	9KB
QoS	4 queues per port, priority-based QoS
IGMP Snooping	V1/V2/V3 Snooping
Port Mirroring	Yes
Management	Web-based GUI
Standards and Protocols	IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, IEEE 802.1Q
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 90% non-condensing
