User Guide 50
Configuring VLAN Configuring 802.1Q VLAN
4
Configuring 802.1Q VLAN
To complete the 802.1Q configuration, follow these steps:
1) Configure the VLAN, including creating a VLAN and adding the ports to the VLAN.
2) Configure the PVID.
4.1 Configuring the VLAN
Choose the menu VLAN > 802.1Q VLAN to load the following page.

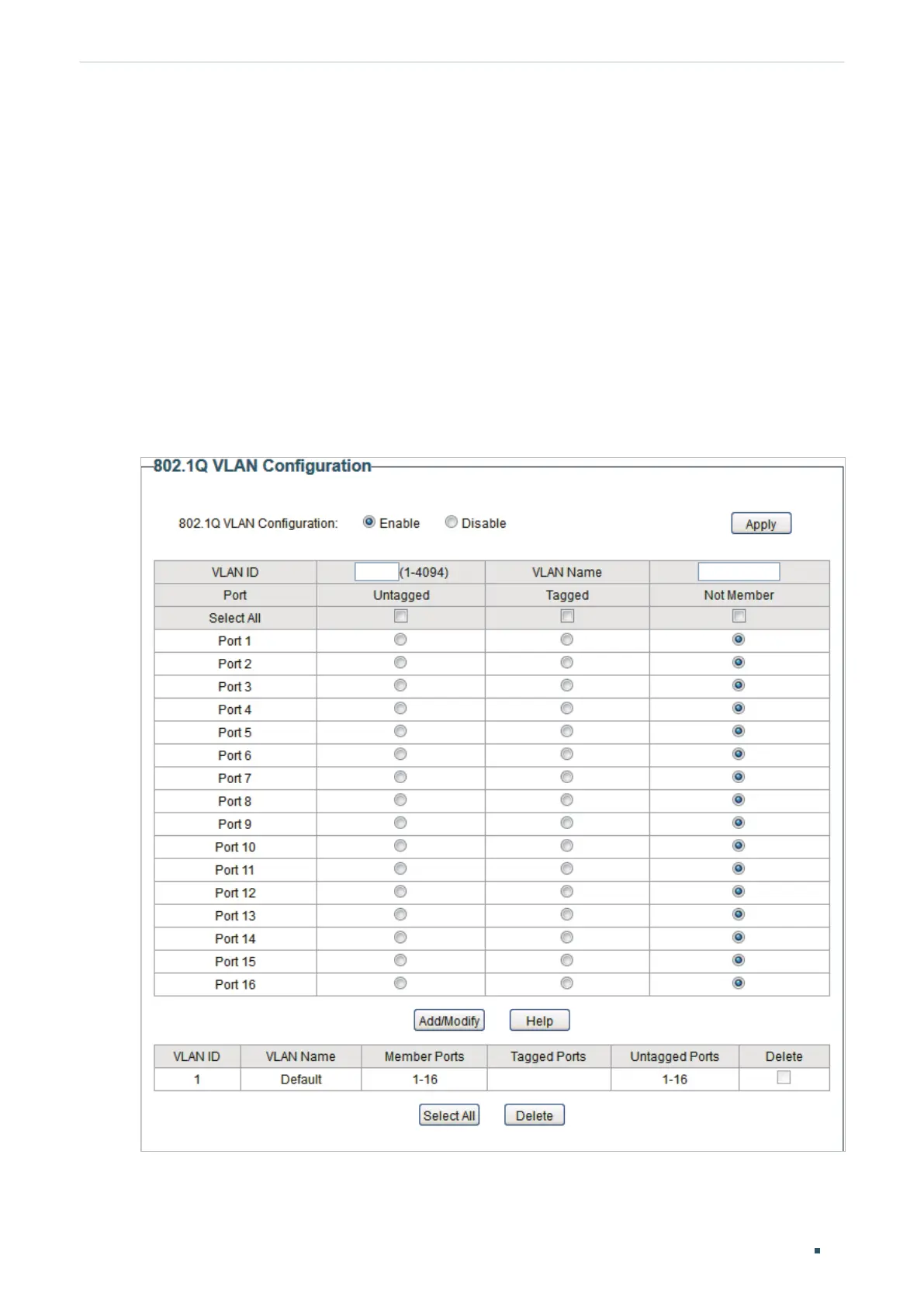

Figure 4-1 Configuring 802.1Q VLAN
