TP-Link Easy Smart Switch User Manual

Configuring QoS Configuring Storm Control
User Guide 67
4
Configuring Storm Control
Choose the menu QoS > Storm Control to load the following page.

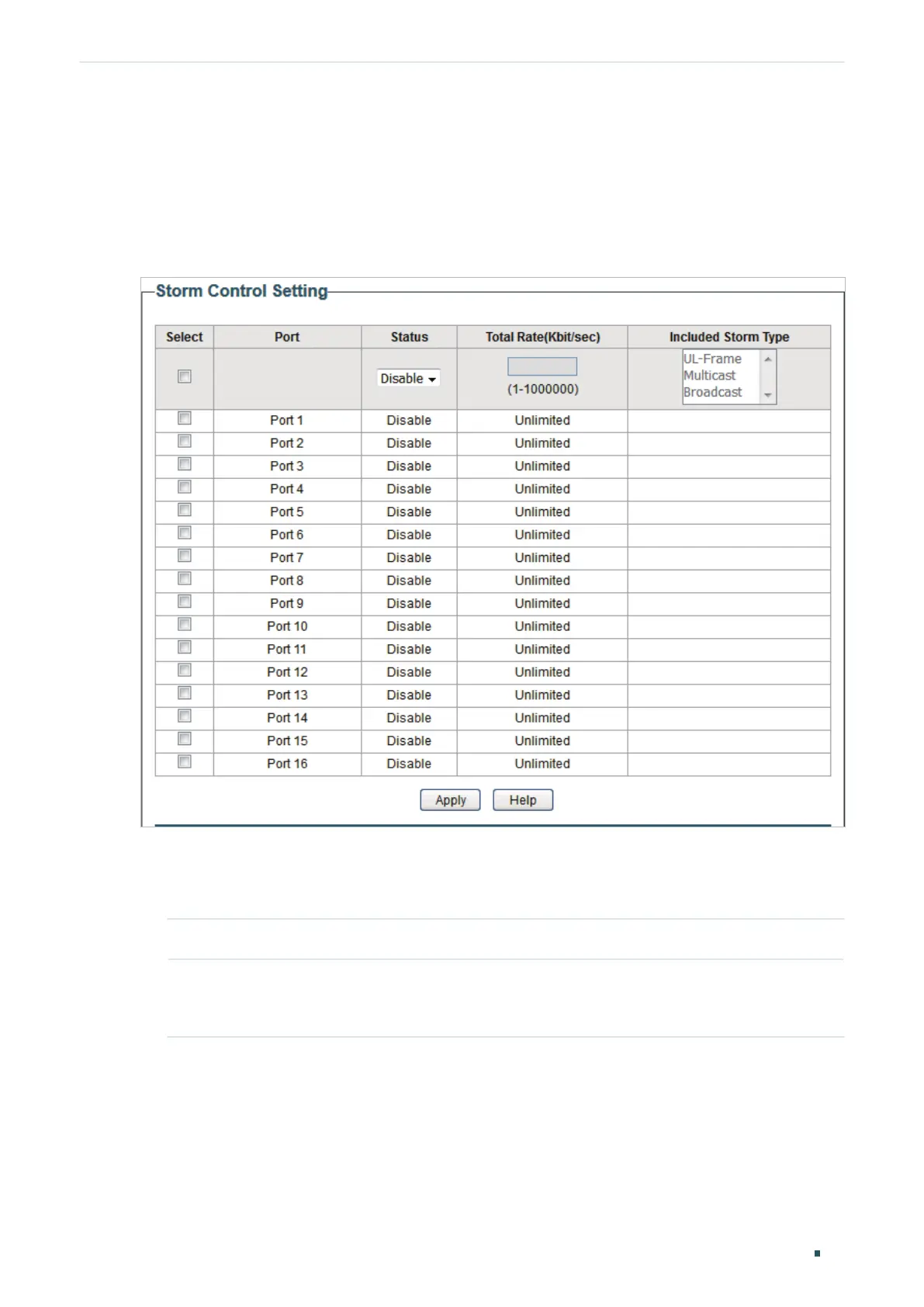

Figure 4-1 Configuring Storm Control
Follow these steps to configure storm control:
1) Select the desired ports and configure the upper rate limit for forwarding broadcast
packets, multicast packets and UL-frames (Unknown unicast frames).
Status Enable or disable the storm control feature for the port.
Total Rate (Kbit/
sec)
Specify the upper rate limit for receiving the packets on the port. If the rate for
receiving the packets on the port exceeds the total rate, the packets will be
discarded.

TP-Link Easy Smart Switch Specifications

General

Cable Diagnostics	Yes
Power Input	100-240VAC, 50/60Hz
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Model	Easy Smart Switch
Port Type	RJ45
Speed	10/100/1000Mbps
MAC Address Table	8K
Jumbo Frame	9KB
QoS	4 queues per port, priority-based QoS
IGMP Snooping	V1/V2/V3 Snooping
Port Mirroring	Yes
Management	Web-based GUI
Standards and Protocols	IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, IEEE 802.1Q
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 90% non-condensing
