TP-Link Easy Smart Switch User Manual

Configuring VLAN Configuration Example for 802.1Q VLAN
User Guide 53
5
Configuration Example for 802.1Q VLAN
5.1 Network Requirements
As the following figure shows, a company has two departments. Hosts of the same
department are located in different places and connected to different switches
respectively.
It’s required that:
■ Hosts of both departments can access the internet.
■ Hosts of the same department can communicate with each other, but hosts of different
departments cannot.

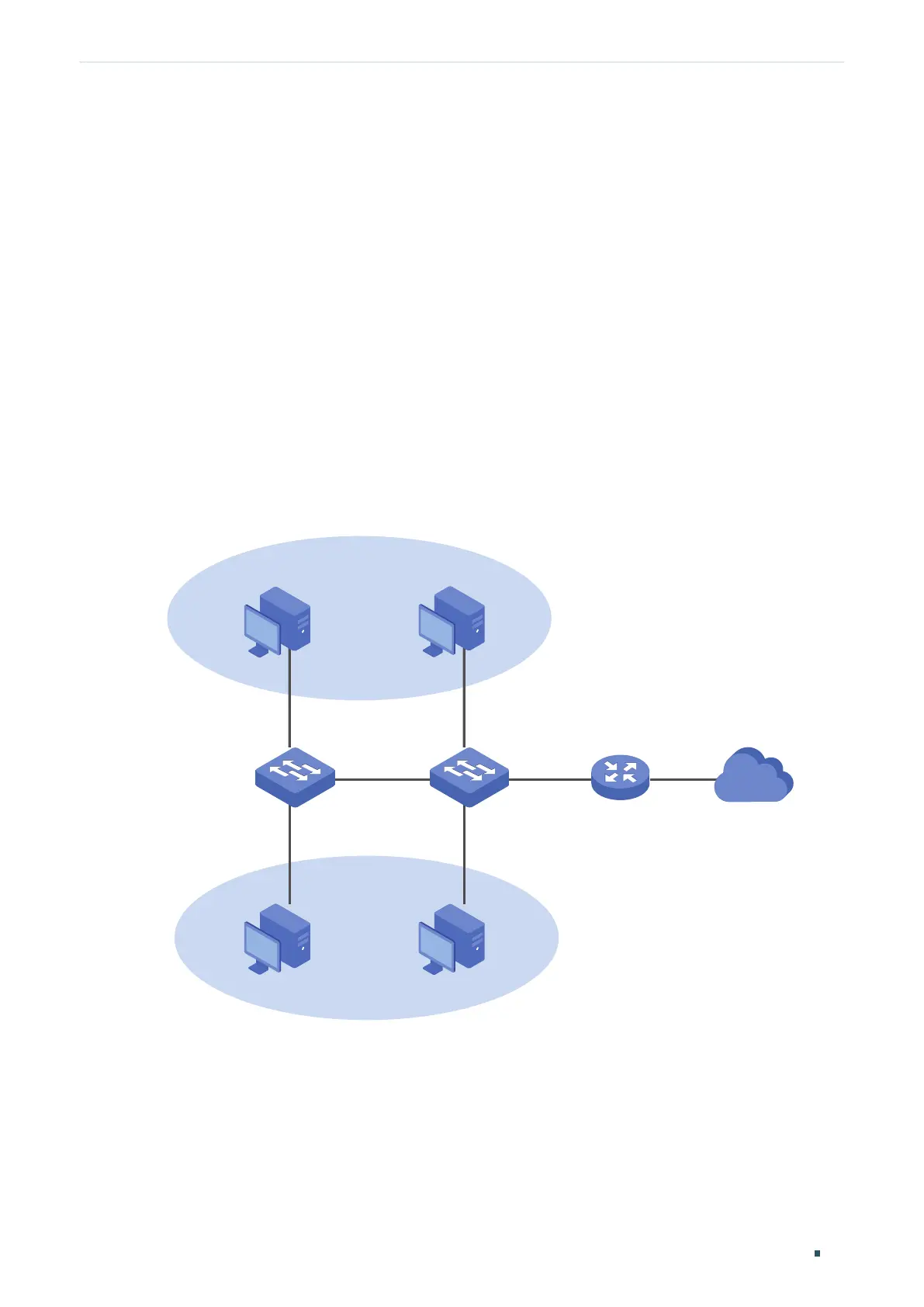

Figure 5-1 Network Topology
VLAN 2
Department A
VLAN 3
Department B
Host A1 Host A2
Host B1
Host B2
Switch A
Switch B
Port 2
Port 3
Port 4
Port 2
Port 3
Port 4
Internet
Port 1
5.2 Configuration Scheme
To implement the above requirements, configure 802.1Q VLAN on both switches.
■ Create VLAN 2. On Switch A, add port 2 and port 4 to VLAN 2, while on Switch B, add
port 1, port 2 and port 4 to VLAN 2.

TP-Link Easy Smart Switch Specifications

General

Cable Diagnostics	Yes
Power Input	100-240VAC, 50/60Hz
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Model	Easy Smart Switch
Port Type	RJ45
Speed	10/100/1000Mbps
MAC Address Table	8K
Jumbo Frame	9KB
QoS	4 queues per port, priority-based QoS
IGMP Snooping	V1/V2/V3 Snooping
Port Mirroring	Yes
Management	Web-based GUI
Standards and Protocols	IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, IEEE 802.1Q
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 90% non-condensing
