TP-Link Easy Smart Switch User Manual

Configuring QoS Configuring Bandwidth Control
User Guide 65
3
Configuring Bandwidth Control
Choose the menu QoS > Bandwidth Control to load the following page.

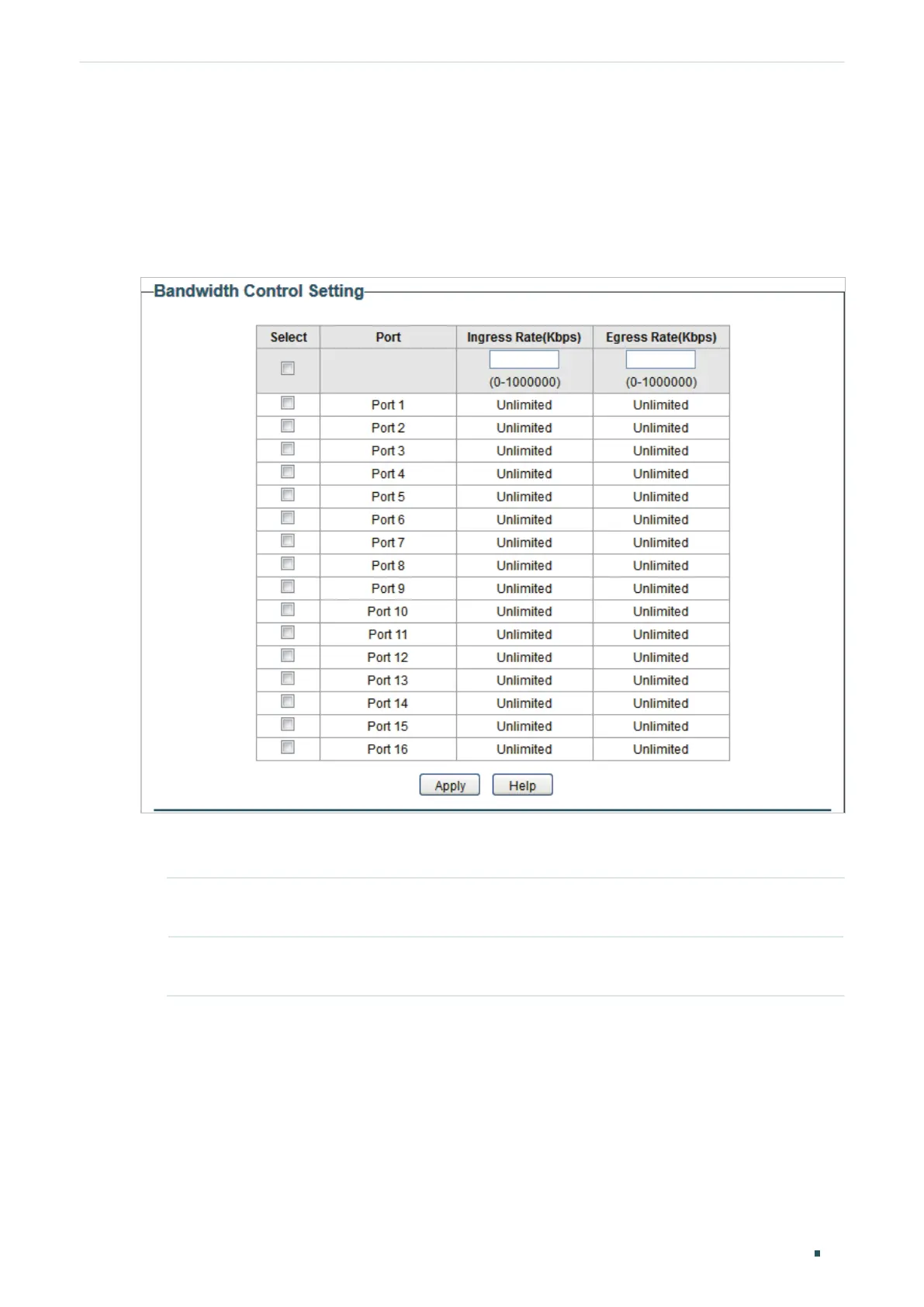

Figure 3-1 Configuring Bandwidth Control
Follow these steps to configure bandwidth control:
1) Select the desired ports and configure the ingress rate and egress rate for the ports.
Ingress Rate
(Kbps)
Configure the bandwidth for receiving packets on the port. If the rate for receiving
packets on the port exceeds the ingress rate, the packets will be discarded.
Egress Rate
(Kbps)
Configure the bandwidth for sending packets on the port. If the rate for sending
packets on the port exceeds the egress rate, the packets will be discarded.
2) Click Apply.

TP-Link Easy Smart Switch Specifications

General

Cable Diagnostics	Yes
Power Input	100-240VAC, 50/60Hz
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Model	Easy Smart Switch
Port Type	RJ45
Speed	10/100/1000Mbps
MAC Address Table	8K
Jumbo Frame	9KB
QoS	4 queues per port, priority-based QoS
IGMP Snooping	V1/V2/V3 Snooping
Port Mirroring	Yes
Management	Web-based GUI
Standards and Protocols	IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, IEEE 802.1Q
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 90% non-condensing
