5
Chapter 1
Get to Know Your Router

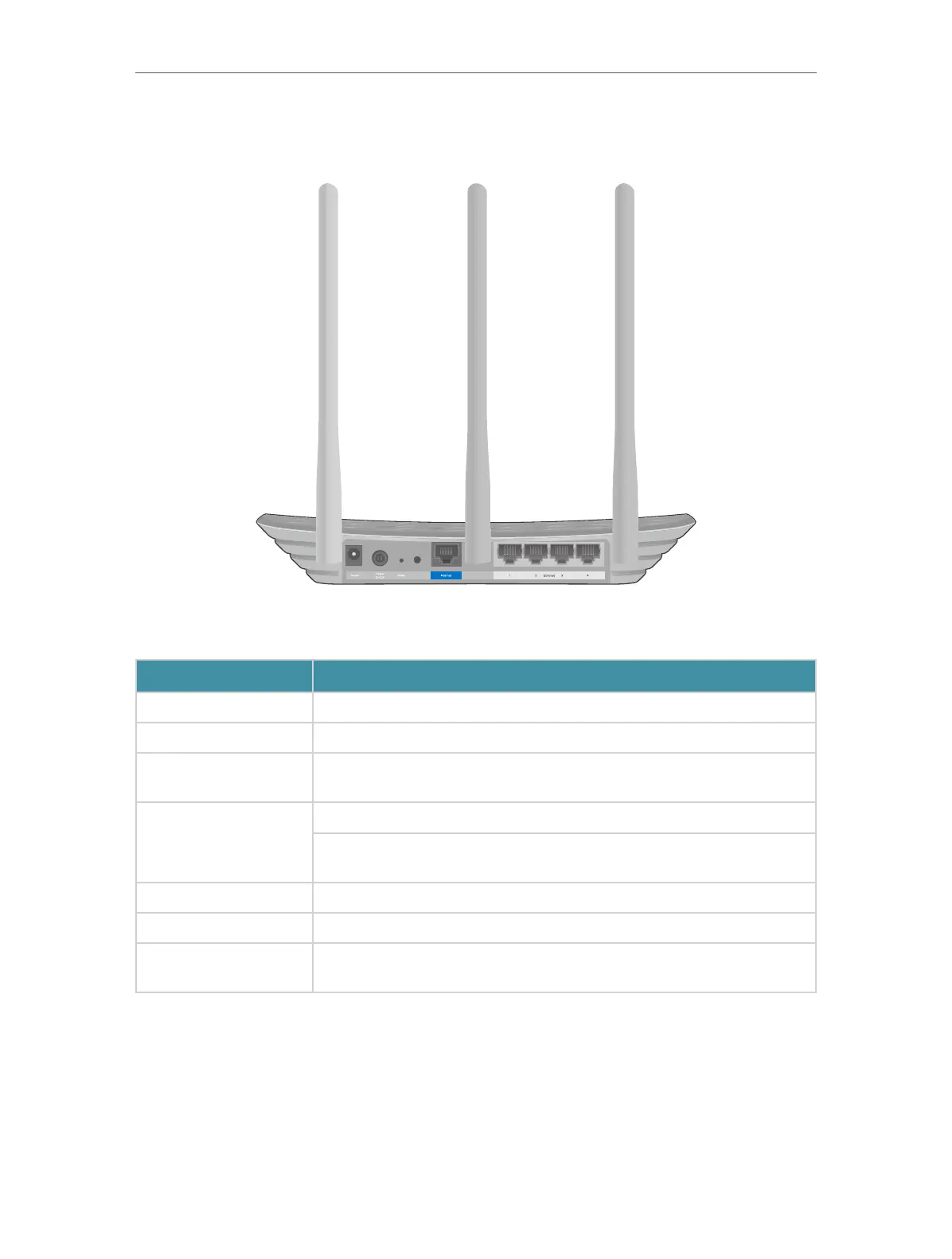

1. 2. 2. Back Panel
Wi-Fi
/WPS
The router’s back panel contains the connection ports, buttons and antennas. Refer to
the following for detailed instructions.
Item Description
Power Port For connecting the router to a power socket via the provided power adapter.
Power On/Off Button Press this button to power on or off the router.
Reset Button
Press and hold this button for at least 5 seconds to reset the router to its
factory default settings.
Wi-Fi/WPS Button
Press this button to establish a WPS connection.
Press and hold this button for at least 5 seconds to turn on or off the wireless
function of your router.
Internet Port For connecting the router to a DSL/Cable modem, or an Ethernet port.
Ethernet Ports (1/2/3/4) For connecting your PCs or other Ethernet network devices to the router.
Antennas
Used for wireless operation and data transmitting. Upright them for the best
Wi-Fi performance.
