Parameterization and configuration
TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany
Page 120 of 131 TR - ECE - BA - DGB - 0060 - 05 02/23/2017

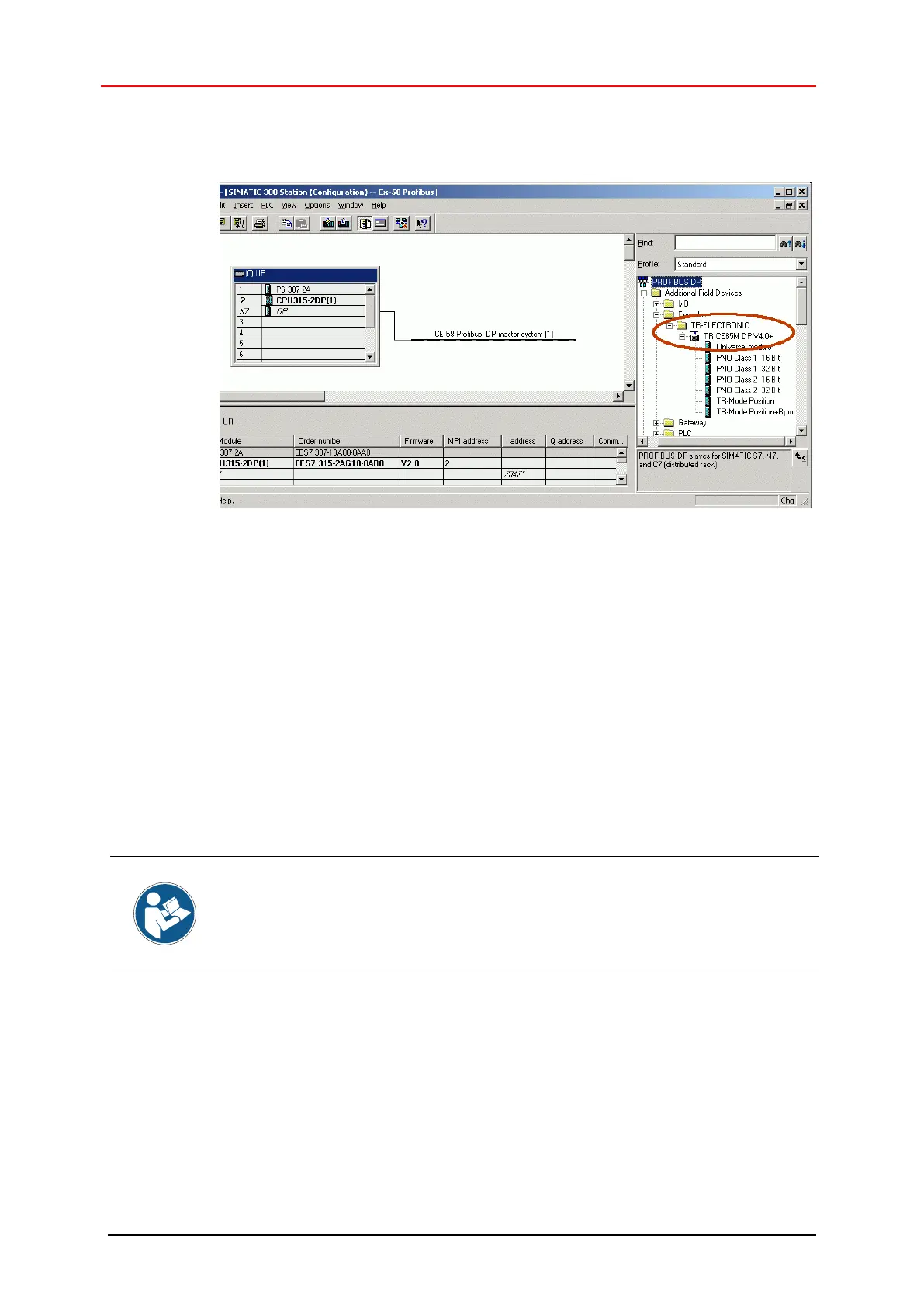

A new entry appears in the catalogue after installation of the GSD file:
PROFIBUS-DP-->Additional Field Devices-->Encoder-->TR-ELECTRONIC
The entry for the GSD file is:”TR CE58_65M DP V1”
The sequence of the respective configuration options is given in this entry:
- PNO Class 1 16 bit, see page 91
- PNO Class 1 32 bit, see page 92
- PNO Class 2 16 bit, see page 93
- PNO Class 2 32 bit, see page 95
- TR-Mode Position, see page 97
- TR-Mode Position+Velocity, see page 102
The entry Universal module is erroneously available for some systems, but must
not be used!
