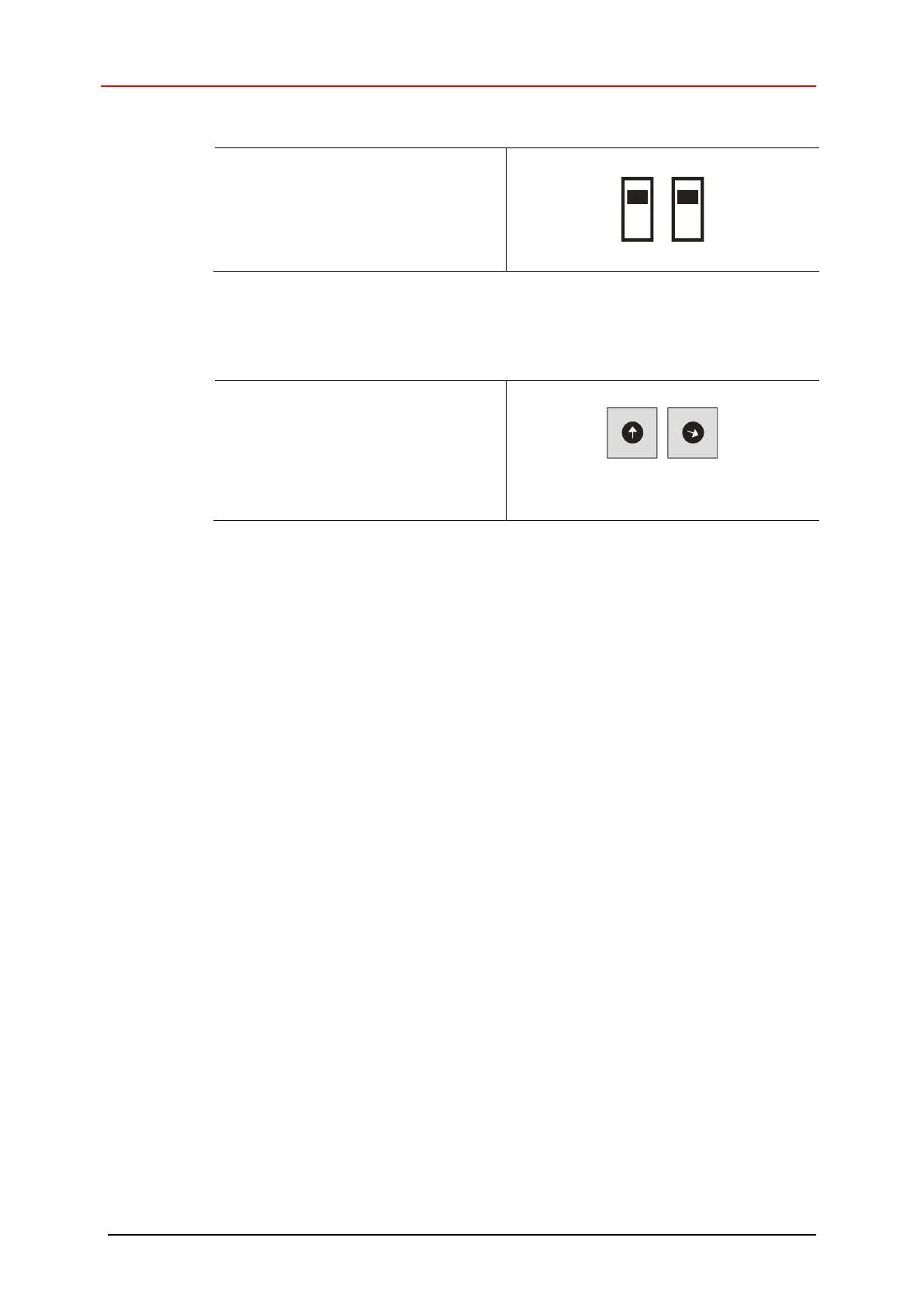

4.2.2 Bus termination
If the measuring system is the last slave
in the PROFIBUS segment, the bus is
to be terminated with the two
termination switches = ON. In this state,
the subsequent PROFIBUS isn’t
decoupled!
ON
OFF
ON
OFF
4.2.3 Bus address
Valid PROFIBUS addresses: 3 - 99
10
0
: Setting the 1st position
10
1
: Setting the 10th position
The device does not start up with an
invalid station address, LEDs = OFF.
