Trace Engineering RC7 User Manual

ã 1999 Trace Engineering
RC7 & RC7GS Remote Controls
Genset Status:
AC Available
Once the generator starts, there is a brief delay to allow the genset to reach
operating speed and for the inverter/charge to synchronize to the generator, at
which point the LCD display shows that ac is again available.
Figure 35
Cranking Genset Messages
3. Starter Cooldown and Gen Start
In the event the genset does not start within 30 seconds, a two-minute
starter cooldown message is displayed after which another attempt to start the
generator occurs. This cycle repeats itself three more times over a
12 minute period.
Genset Status:
Starter Cooldown
Figure 36
Starter Cooldown Messages
Gen Set Error Messages
1. Gen Won’t Start
If the genset does not start after the four attempts, the RC7GS displays the
message “Gen Won’t Start” and the red Error LED on the front panel lights. No
further attempts to start the genset will occur. Correct the starting problem and
manually start the genset by setting the RC7GS to “Manual (Push On)” from the
setup menu and then set it back to the previous auto-start menu, which resets he
RC7GS.
Figure 37
Gen Won’t Start Error Message
2. Gen Quiet Fault
Whenever the RC7GS is configured to Auto Start the generator under a
specified condition and the condition occurs during the gen quiet period, the LCD
will display the Gen Quiet Fault message and the red Error LED will light. The
remote control also emits a series of beeping sounds for up to five minutes or
until the error condition is corrected. The gen quiet period can be overridden by
resetting the Gen Quiet Begin and End time to 00:00.
3.0 OPERATION
20

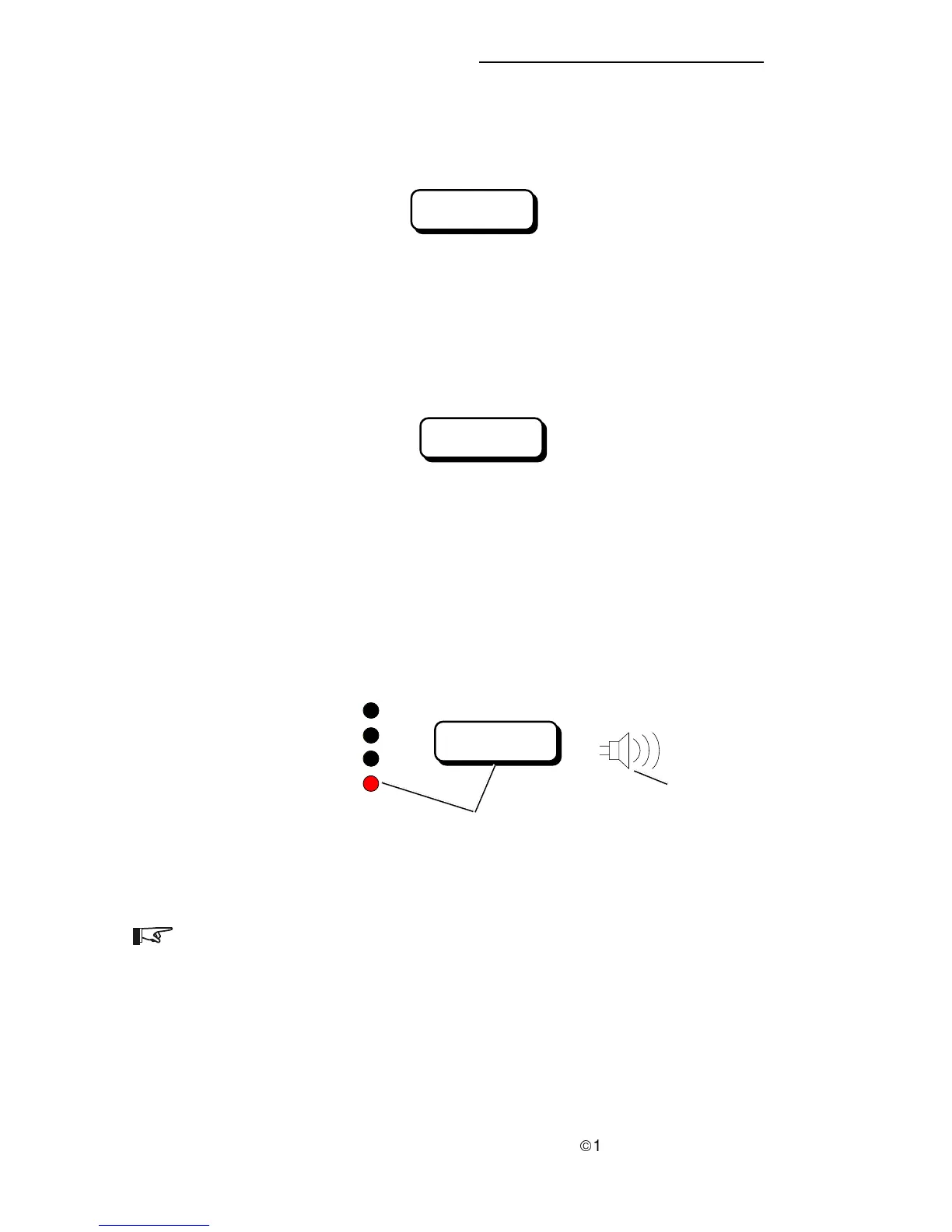

Genset Status:
Gen wont Start
Red Error LED lights and
error message appears
in the LCD display
Inverter
Charge
Batt. Full
Error
822-4A-001
Buzzer Sounds
NOTE: Press any arrow push-button to cancel the buzzer.
