Trace Engineering RC7 User Manual

ã 1999 Trace Engineering
RC7 & RC7GS Remote Controls
3
2.0 INSTALLATION
Installation Procedure:
1. Select an appropriate location to install the remote control.
2. Refer to the drawing (Figure 2) for hole and cutout dimensions or install
the remote in a standard double-gang outlet box.
3. Run the cable between the RC7 remote and the inverter/charger. Do NOT
use standard telephone cable.
4. Place the ON/OFF switch on the inverter to the OFF position and
disconnect the ac power.

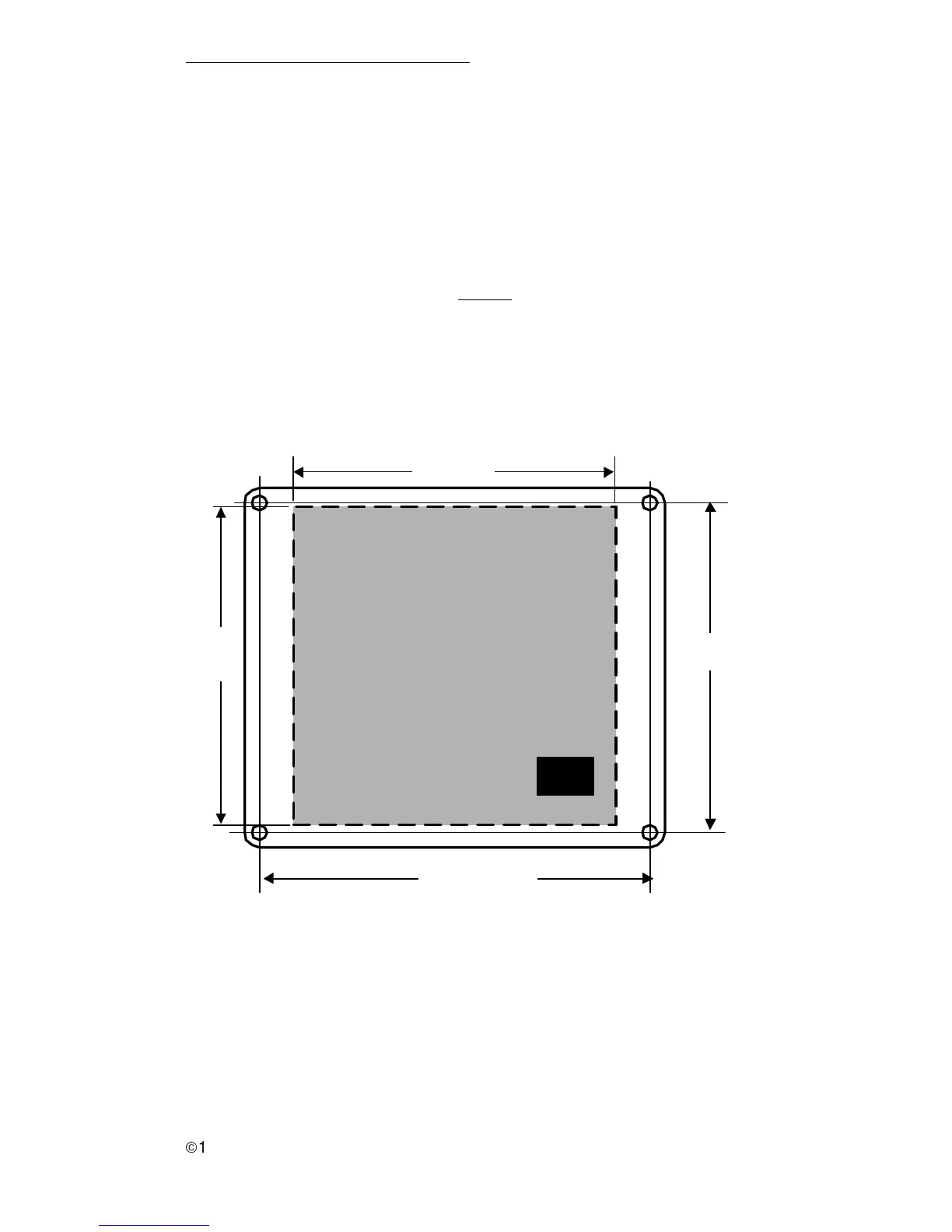

Figure 2
Installation Dimensions
CUT OUT THIS AREA
PHONE
JACK
4-1/8"
4"
5-3/16" c-c
4-1/4" c-c
FRONT VIEW
822-4A- 011
