Reports
Viewing Chiller Operating Modes
On the Reports screen, touch Chiller Operating Modes to view the current operating status of the
chiller in terms of the top-level operating mode and submodes.
Note: You can also access the Chiller Operating Modes screen from the chiller status button in the
upper left corner of the screen.
Figure 10 shows an example of a Chiller Operating Modes screen.
Chillers operate in one of the top-level operating modes shown in Table 5. The table gives a
description of the top-level modes and lists the submodes that correspond to each top-level mode.
Submodes are dependent on the top-level mode. Their appearance on the Chiller Operating Modes
screen has the following characteristics:
• The newest submode appears at the top of the submode list.
• Submodes disappear when they no longer apply.
• The screen displays up to 6 submodes.
• If less than 6 submodes are active, the submode rows that do not apply are blank.

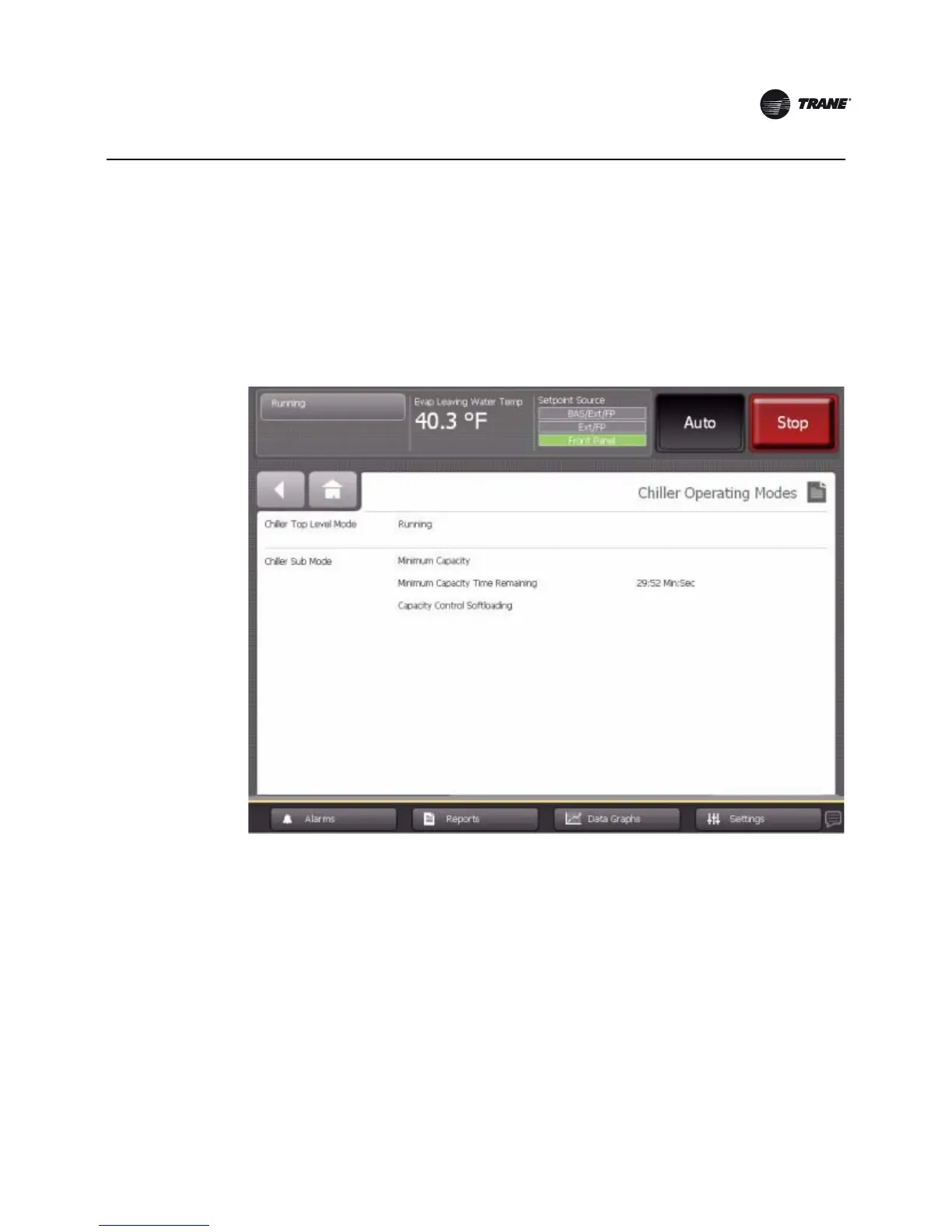

Figure 10. Chiller Operating Modes screen
To Next Page
