Equipment Settings
Changing the Setpoint Source
There are three ways to access the Setpoint Source screen. To change the setpoint source, follow
one of these procedures:
Changing the setpoint source using the Setpoint Source button in the chiller
status area
1. Touch the Setpoint Source button in the chiller status area (Figure 1, p. 7).
The Setpoint Source screen appears (Figure 22).
2. Touch the appropriate source button on the Setpoint Source screen.
3. Touch Save to complete the change.
Note: The change applies to all arbitrated setpoints.
Changing the setpoint source from the Setpoint Source button on the Chiller
Settings screen
1. Touch the Settings button in the main menu area (Figure 1, p. 7). The Settings screen appears.
2. From the Settings screen, touch the Chiller Settings button. The Chiller Settings screen appears.
3. From the Chiller Settings screen, touch the button that is labeled “Setpoint Source” and
displays the current source. The Setpoint Source screen appears (Figure 22).

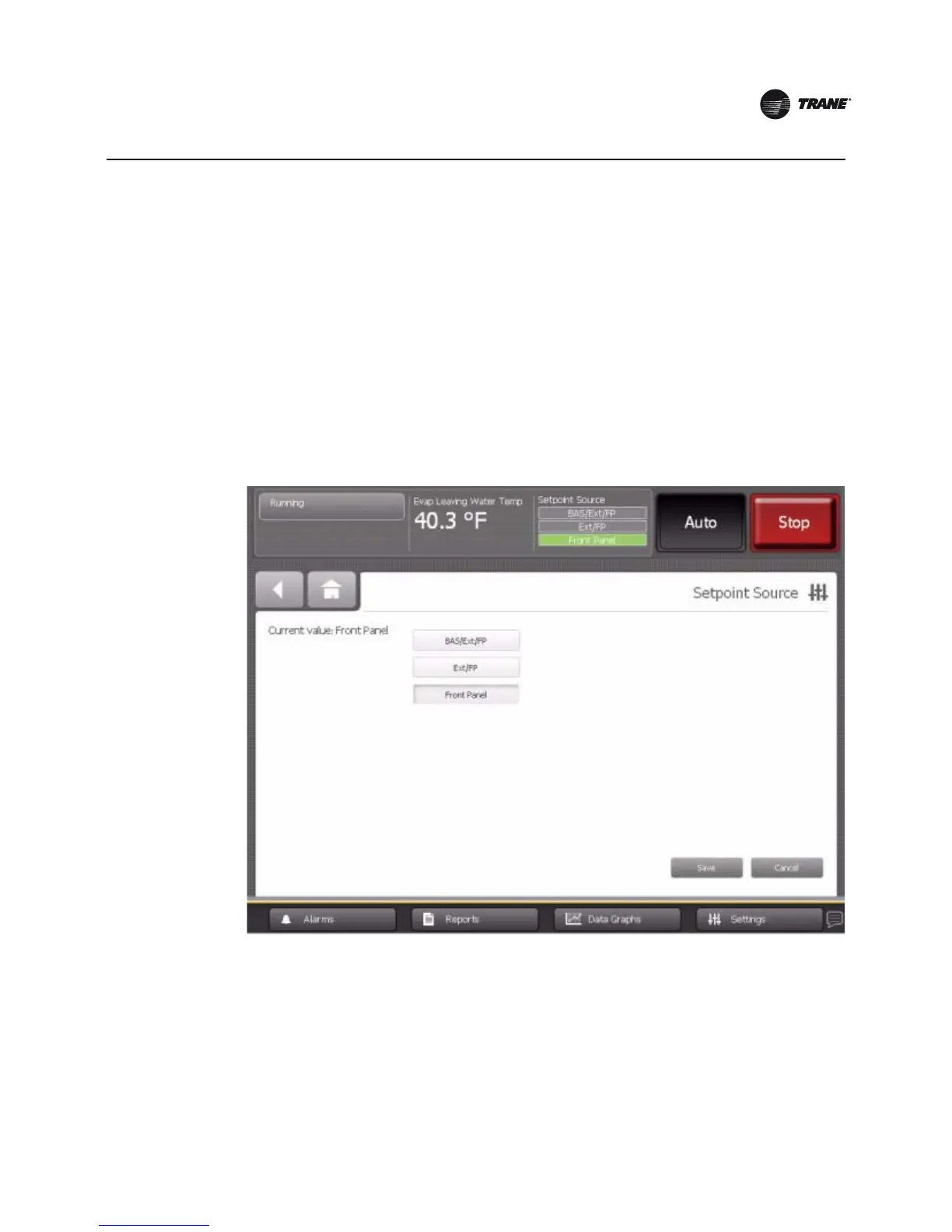

Figure 22. Setpoint Source screen
