CTV-SVU02A-EN 27
Data Graphs
Viewing Data Graphs
On the Data Graphs screen, touch any of the buttons to view a live graph (Figure 12 shows Chiller
Overview 1 as an example). For every graph, the X-axis shows time. The Y-axes presents data
points specific to each graph. The data points are listed in “Data Graphs,” p. 26.
Changing the Scales on Data Graphs
You can change the scales of the X-axis and the Y-axes on data graphs.
Changing the scale of the X-axis
The X-axis scale defaults to the most recent one hour with 15 minutes in between the time labels
that appear across the bottom of the graph. You can change the scale from the last 12 minutes to
the last 48 hours and increments in between, as follows:
• 12-minute graph with 3 minutes between time labels
• 40-minute graph with 10 minutes between time labels
• 60-minute graph with 15 minutes between time labels
• 4-hour graph with 1 hour between time labels
• 8-hour graph with 2 hours between time labels
• 1-day graph with 6 hours between time labels
• 2-day graph with 12 hours between time labels

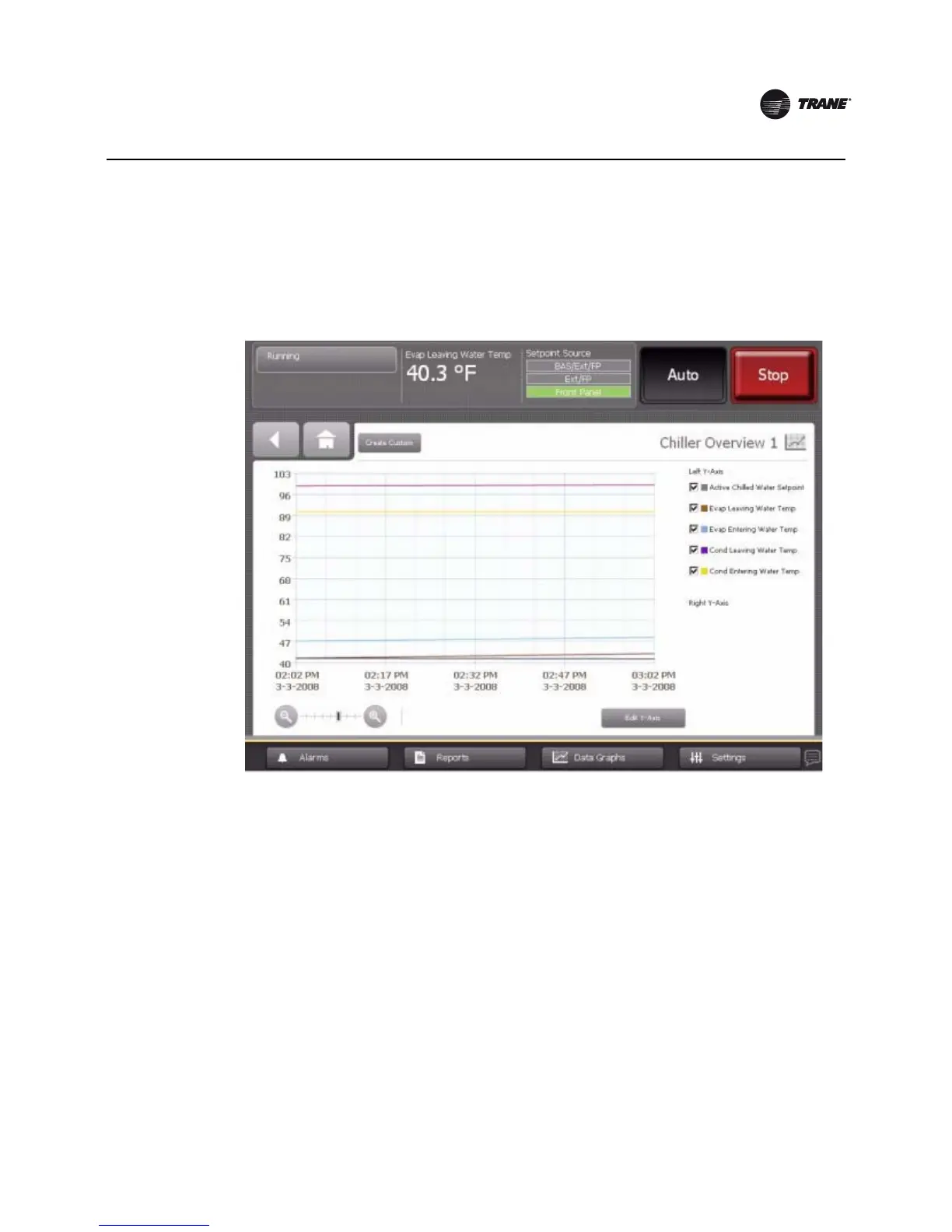

Figure 12. Example of Data Graph (Chiller Overview 1 shown)
