Trane RTHD

RTHD-SVX01D-EN 125
Unit Shutdown
Normal Shutdown to Stopped

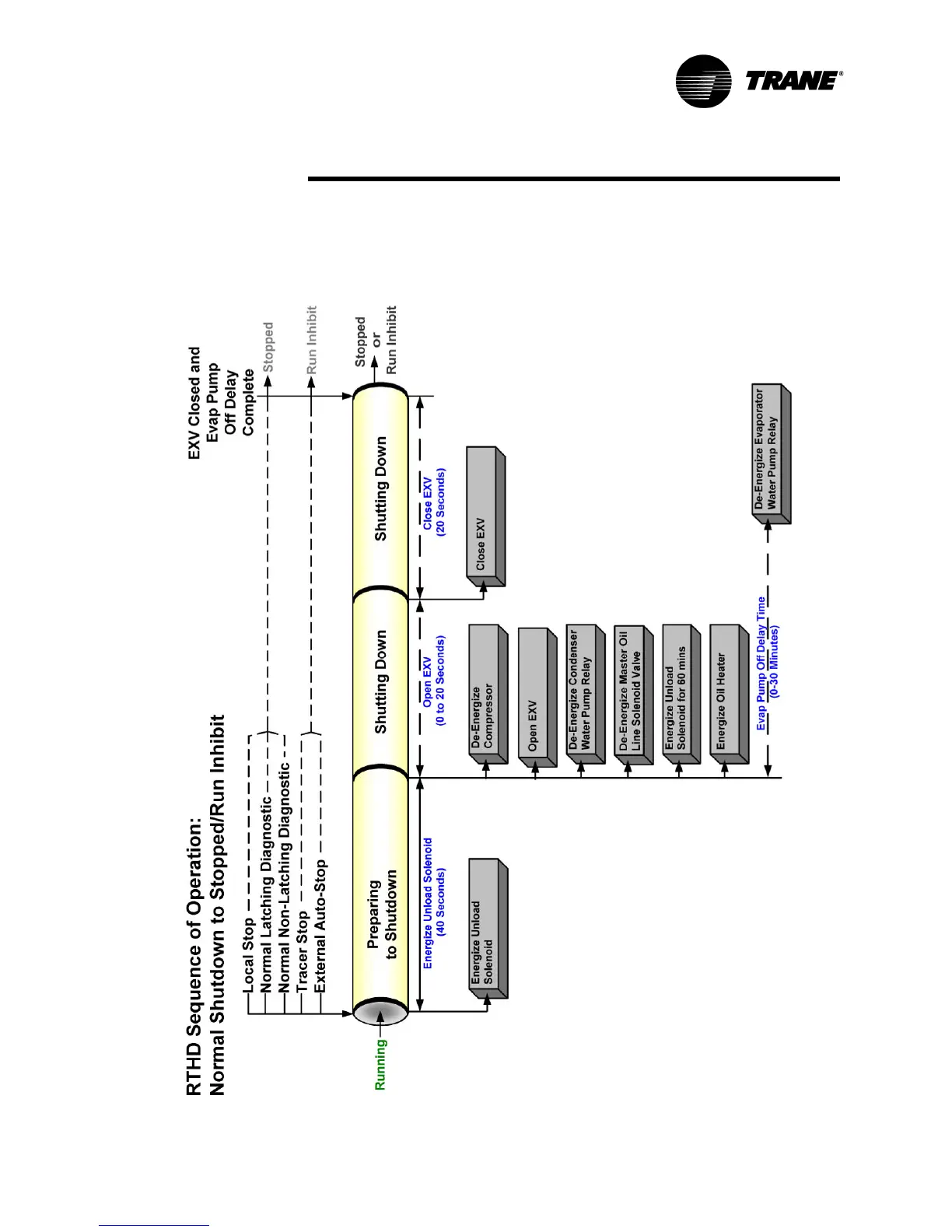

The Normal Shutdown diagram shows the Transition from Running through a
Normal (friendly) Shutdown. The Dashed lines on the top attempt to show
the final mode if you enter the stop via various inputs.
Figure 42 Normal Shutdown
