Settings Screen
The Settings screen provides the user the ability to adjust settings. The layout
provides a list of sub-menus, organized by typical subsystem.

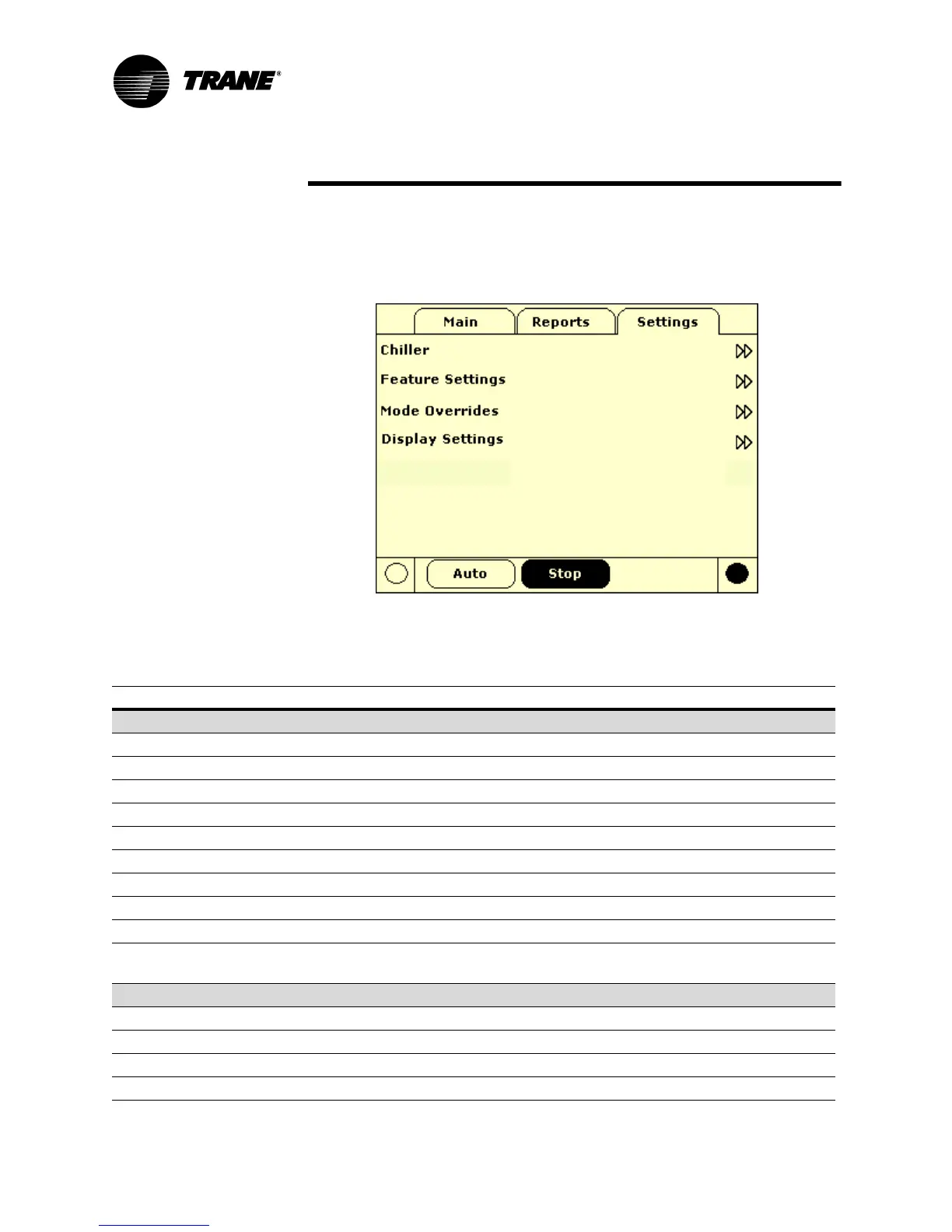

Figure 29. Settings Screen
Table 20 Settings Screen Items
Description Resolution or (Text), Default Units
Chiller
Front Panel Chilled Water Setpt ± XXX.X (3)
Front Panel Current Limit Setpt XXX (4) Percent RLA
Front Panel Base Load Cmd On/Auto Text
Front Panel Base Load Setpt XXX Percent
Front Panel Ice Build Cmd On/Auto Text
Front Panel Ice Termn Setpt XXX.X F / C
Ice to Normal Cool Timer Setpt (0-10), 5 min Minutes
Differential to Start XXX.X F / C
Differential to Stop XXX.X F / C
Setpoint Source (BAS/Ext/FP, Ext/ Front Panel, Front Panel),
BAS/Ext/FP
Text
Features
Chilled Water Reset (Constant, Outdoor, Return, Disable), Disable Text
Return Reset Ratio XXX Percent
Return Start Reset XXX.X F / C
Return Maximum Reset XXX.X F / C
