RTHD-SVX01D-EN 87
Operator Interface Controls
Main Screen
The Main screen is a summary of the chiller’s activity.The Main screen is the
default screen. After an idle time of 30 minutes the CH530 will display the
Main screen with the first data fields.
The remaining items (listed in the following table) are viewed by selecting the
up/down arrow icons.

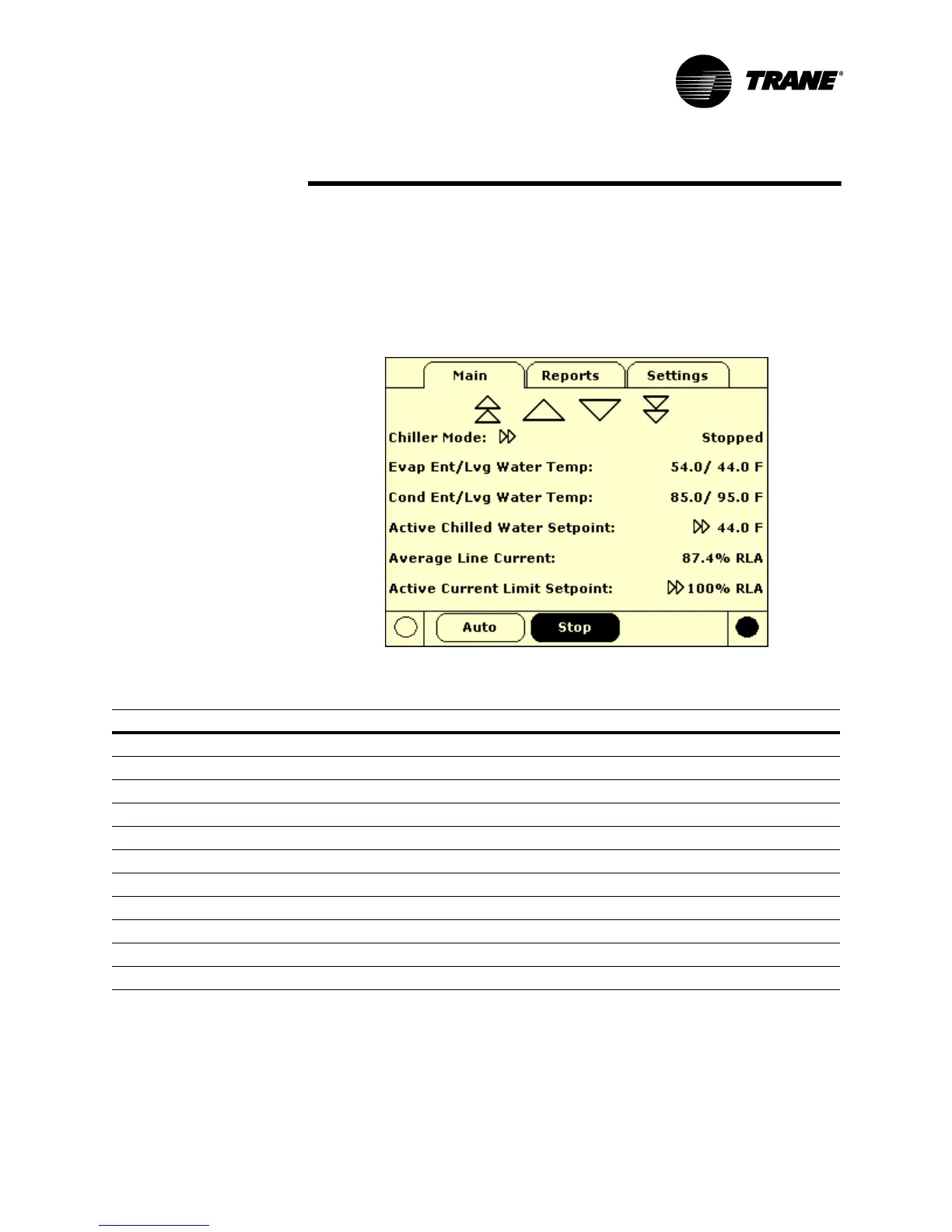

Figure 27. Main Screen
Table 17 Main Screen Items
Description Resolution Units
Chiller Mode (>> submodes) Text
Evap Ent/Lvg Water Temp X.X F / C
Cond Ent/Lvg Water Temp X.X F / C
Active Chilled Water Setpoint (>>source) X.X F / C
Average Line Current X % RLA
Active Current Limit Setpoint (>>source) X % RLA
Active Base Loading Setpoint (>>source) X %
Active Ice Termination Setpoint (>>source) X.X F / C
Outdoor Air Temperature X.X F / C
Software Type RTH Text
Software Version X.XX Text
