RTHD-SVX01D-EN 5
General Information
Literature Change History
RTHD-SVX01D-EN Additional configurations available for 50 hz units. (Nov.
2006)
RTHD-SVX01C-EN New control panel design. (May 2005)
RTHD-SVX01B-EN New Evap/Cond configuration C2F2F3 and change to
minimum flow rates. (June 2004)
RTHD-SVX01A-EN New manual describes installation, operation, and
maintenance of RTHD units. (May 2003)
Unit Identification - Nameplates
When the unit arrives, compare all nameplate data with ordering, submittal,
and shipping information. A typical unit nameplate is shown in Figure 1.
Unit Nameplates
The RTHD “unit” nameplate is applied to the exterior surface of the starter/
control panel. The “compressor” nameplate is applied to the compressor.
The starter/control panel nameplate is located inside the panel.
The unit nameplate provides the following information:
• Unit model
• Unit Serial Number
• Unit device number.
– Identifies unit electrical requirements
– Lists correct operating charges of HFC-134a and refrigerant oil
– Lists unit test pressures and maximum working pressures.
The starter/control panel nameplate provides the following information:
• Panel model number
• Rated load amps
•Voltage
• Electrical characteristics - starter type, wiring
• Options included.
The compressor nameplate provides the following information:

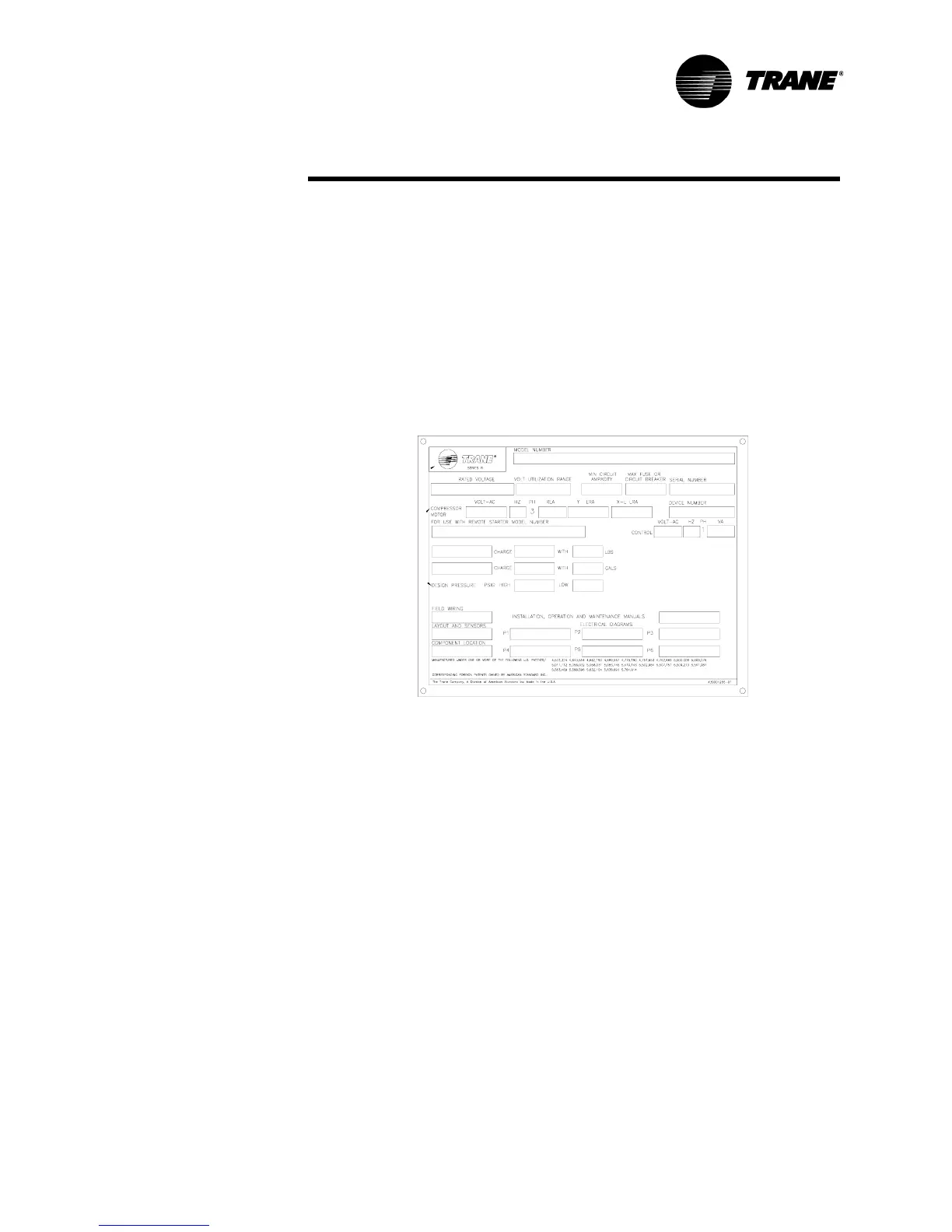

Figure 1 Typical Unit Nameplate
