96 RTHD-SVX01D-EN
Operator Interface Controls
Diagnostic Screen
The diagnostic screen is accessible by depressing the Alarms enunciator. A
verbal description will be provided.
A scrollable list of the last (up to 10) active diagnostics is presented. Per-
forming a “Reset Diags” will reset all active diagnostics regardless of type,
machine or circuit. The scrollable list will be sorted by time of occurrence.
If a informational warning is present, the "Alarms" key will be present but not
flashing. If a diagnostic shutdown (normal or immediate)has occurred, the
"Alarm" key will display that is flashing. If no diagnostics exist, the "Alarm" key
will not be present.
The "Operating Mode At Last Diagnostic" text above the most recent diagnos-
tic will display a sub-screen listing the operating mode and submodes at the
time of the last diagnostic.

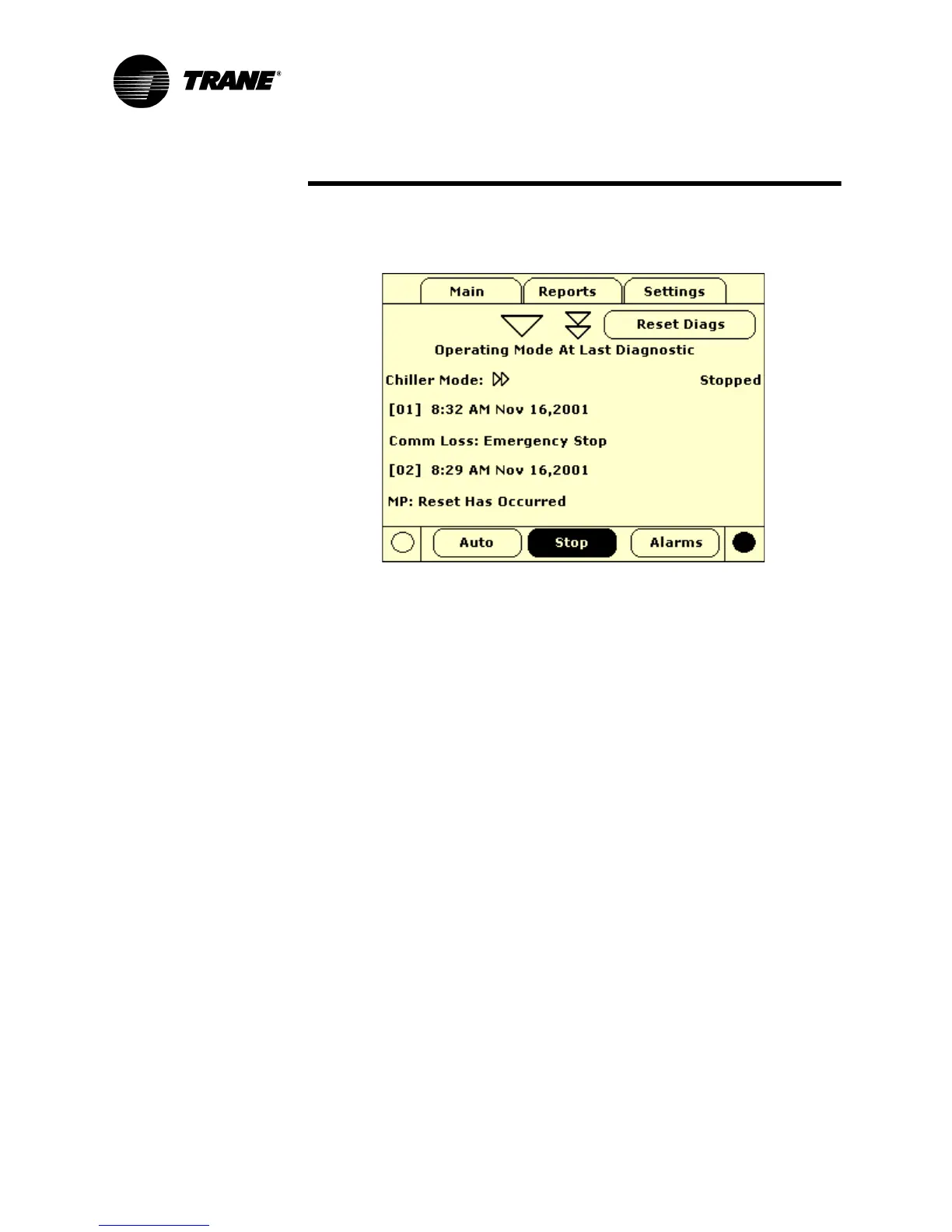

Figure 30. Diagnostics Screen
