Operator Interface Controls
Reports Screen
The Reports tab allows a user to select from a list of reports headings. Each
report will generate a list of status items as defined in the tables that follow.

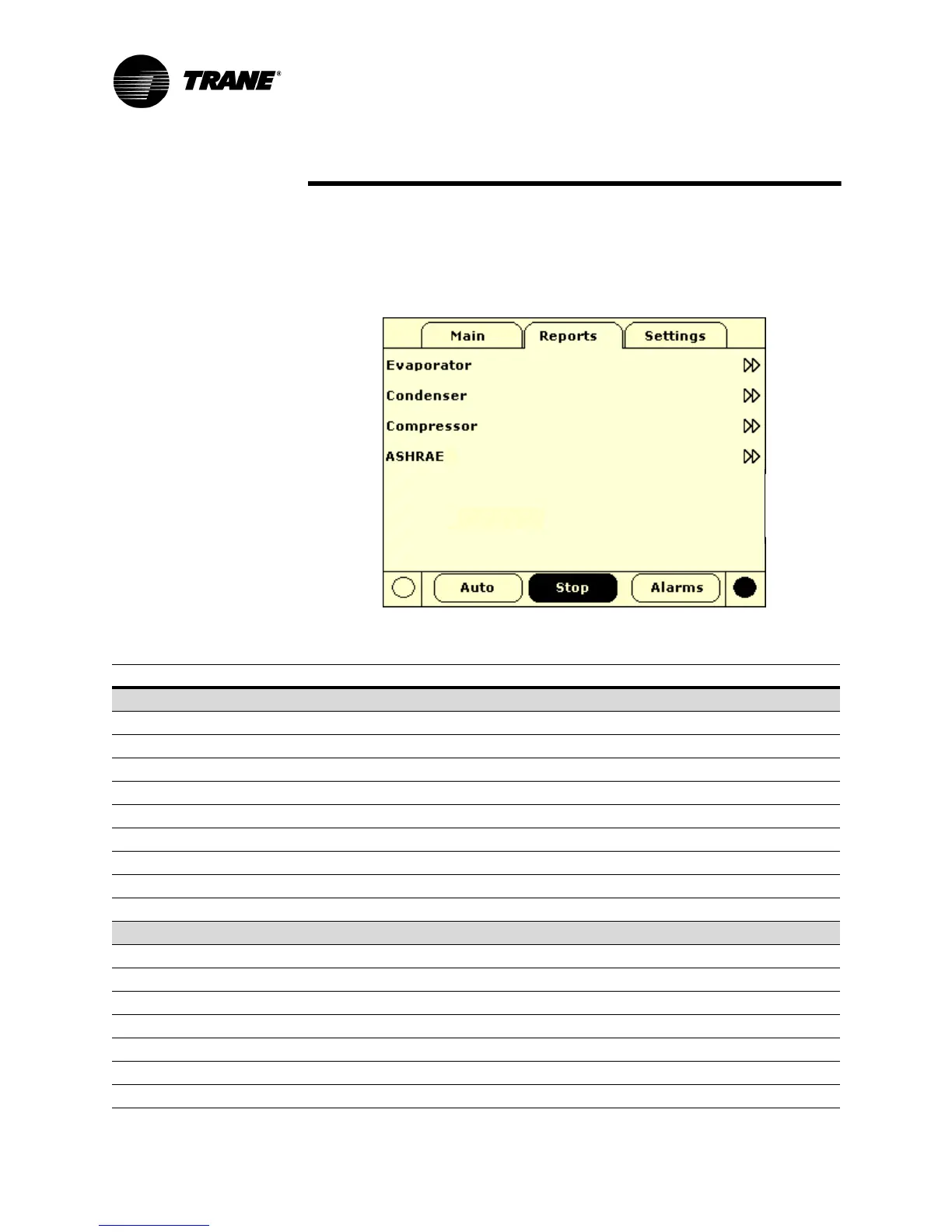

Figure 28. Reports Screen
Chiller Log
Table 19 Report Screen Items
Description Resolution Units
Evaporator
Evap Entering Water Temp ± XXX.X F / C
Evap Leaving Water Temp
± XXX.X F / C
Evap Sat Rfgt Temp
± XXX.X F / C
Evap Rfgt Pressure XXX.X psi / kPa
Evap Approach
± XXX.X F / C
Evap Water Flow Switch Status (Flow, No Flow) Text
Expansion Valve Position XXX.X Percent
Expansion Valve Position Steps XXXX Steps
Evaporator Liquid Level X.X in / mm
Condenser
Cond Entering Water Temp ± XXX.X F / C
Cond Leaving Water Temp
± XXX.X F / C
Cond Sat Rfgt Temp
± XXX.X F / C
Cond Rfgt Pressure XXX.X psi / kPa
Cond Approach Temp
± XXX.X F / C
Cond Water Flow Switch Status (Flow, No Flow) Text
Cond Head Pressure Ctrl Command XXX %
