Trane RTHD

22 RTHD-SVX01D-EN
Installation Mechanical

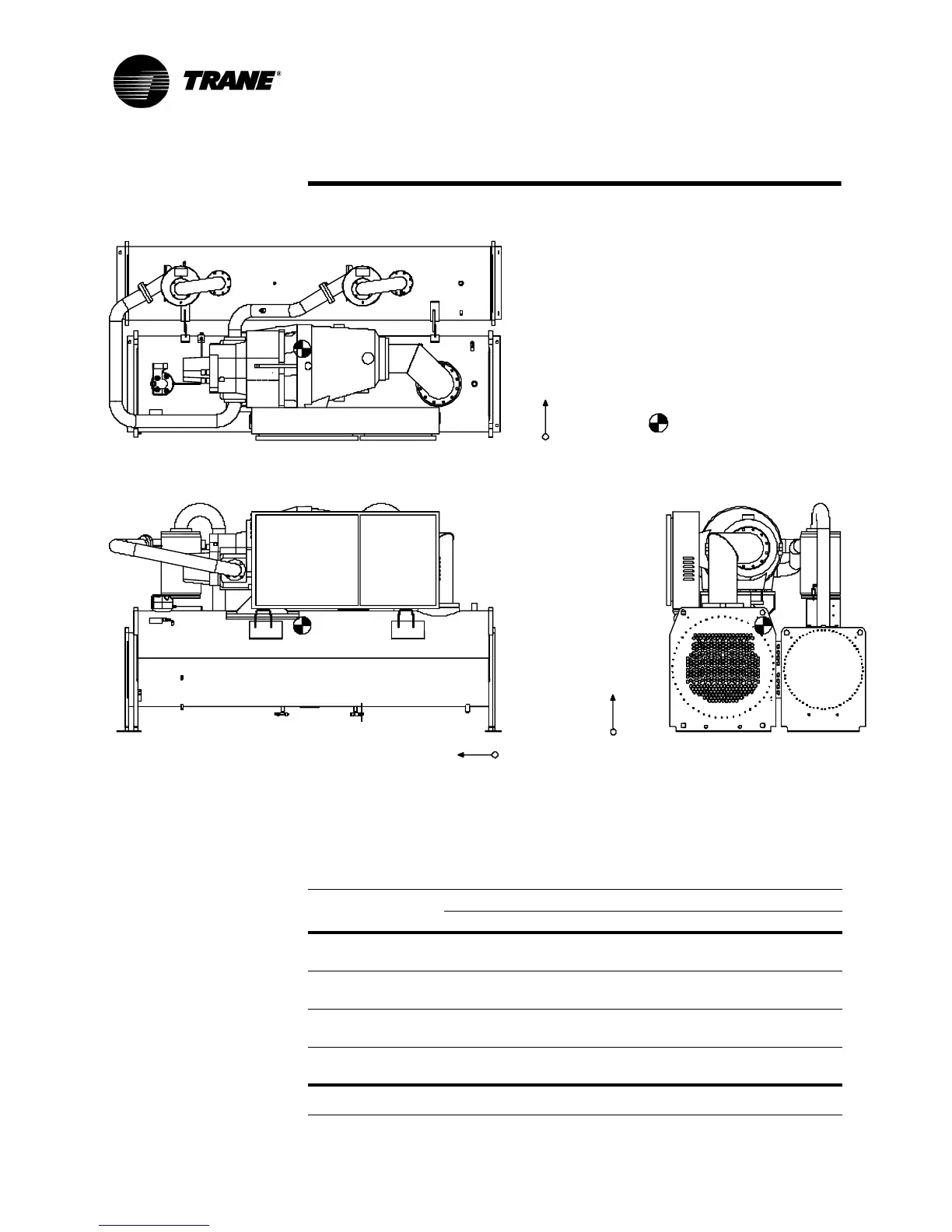

Figure 5 Unit Weights and Dimensions for Rigging
Y
Z
A
B
C
D
X
=C.G.
Table 7 Unit Weights (lb (kg))
Unit Designator *
Location (points)
ABCD
E3G3G3 5339
(2422)
4455
(2021)
4374
(1984)
5486
(2488)
E3G2G1 5158
(2340)
4304
(1952)
4226
(1917)
5300
(2404)
E3F2F3 4781
(2169)
3582
(1625)
3750
(1701)
4851
(2200)
E3D2E2 3796
(1722)
2834
(1285)
3300
(1497)
4789
(2172)
*Unit Designator (corresponds to digits 6, 7, 14, 15, 21, 22 of unit model number)
