Trane RTHD

RTHD-SVX01D-EN 55
Installation Mechanical
.

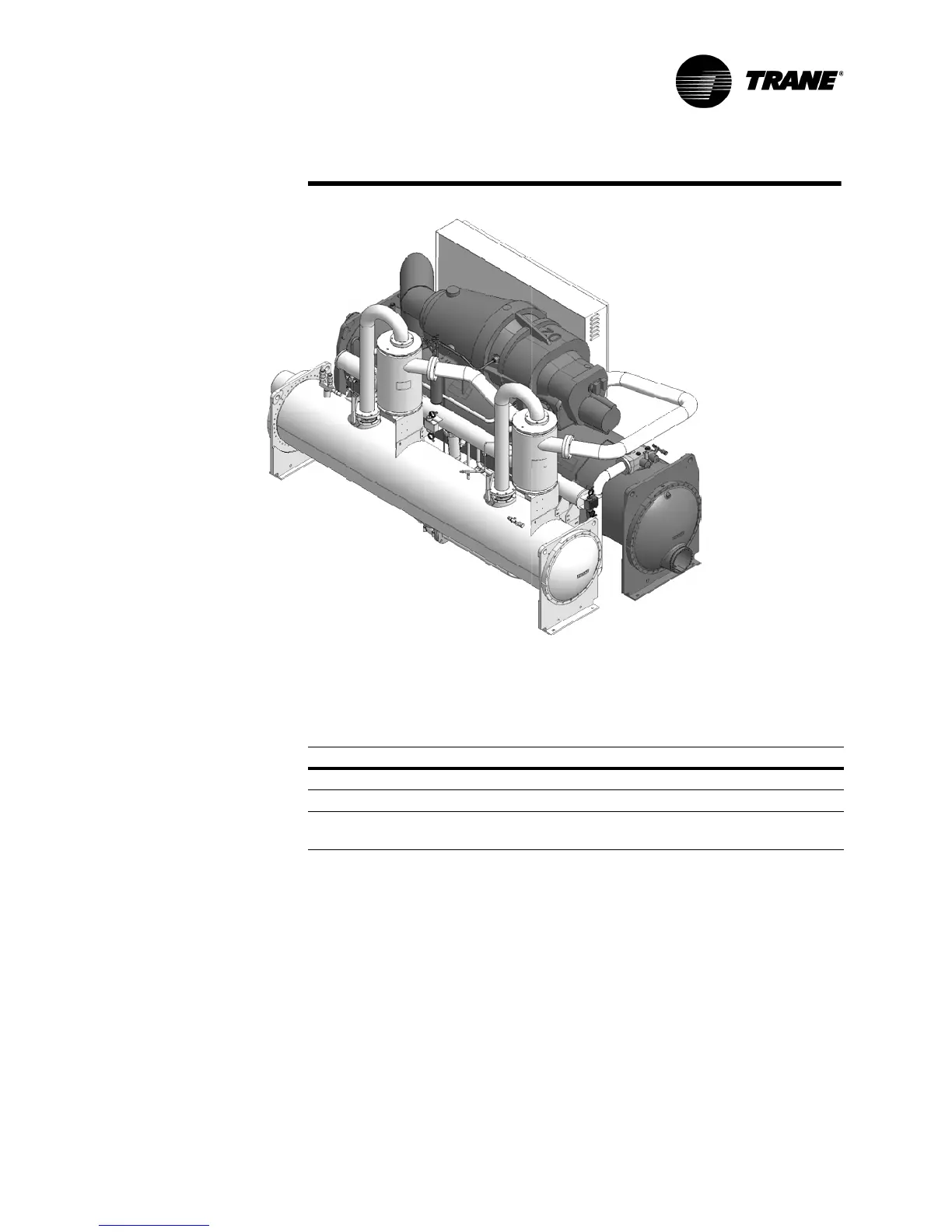

Figure 17 Typical RTHD Insulation Requirements
Table 12 Recommended Insulation Types
Location Type Sq. Feet
Evaporator 3/4” wall 90
Compressor 3/4” wall 25
All components and piping on low side of system (gas
pump, return oil line, filter from pump)
3/4” wall 160
