RTHD-SVX01D-EN 61
Installation Electrical
Terminal Lugs
Proper starter/control panel line-side lug sizes are specified on the starter
submittals. These lug sizes must be compatible with conductor sizes speci-
fied by the electrical engineer or contractor. Appropriate lug sizes are pro-
vided.
Circuit Breakers and Non-Fused Disconnect Switches (factory installed
Option)
Units that are ordered with factory installed Circuit Breakers or Non-Fused
Disconnect Switches ship with the handle in the control panel. The handle
must be installed prior to starting the unit.
The operating mechanism is already pre installed on the Disconnect/ Circuit
Breaker frame.
The hole locations and shafts lengths have already been cut. And the shaft
already installed.
WARNING
Hazardous Voltage!
Disconnect all electric power, including remote disconnects and
discharge all motor start/run capacitors before servicing. Follow
proper lockout/tagout procedures to ensure the power cannot be
inadvertently energized. Verify with an appropriate voltmeter that
all capacitors have discharged. Failure to disconnect power and
discharge capacitors before servicing could result in death or
serious injury.
1. Attach the handel and gasket to the enclosure door and secure with the
four bolts, lock washers and nut as shown in Figure 19. Tighten to 75 in-
Lbs.
Note: there is an additional lexan spacer on the handel not shown in the
Figure 19, do not remove.
2. Check that when the enclosure door is closed, the handle interlocks with

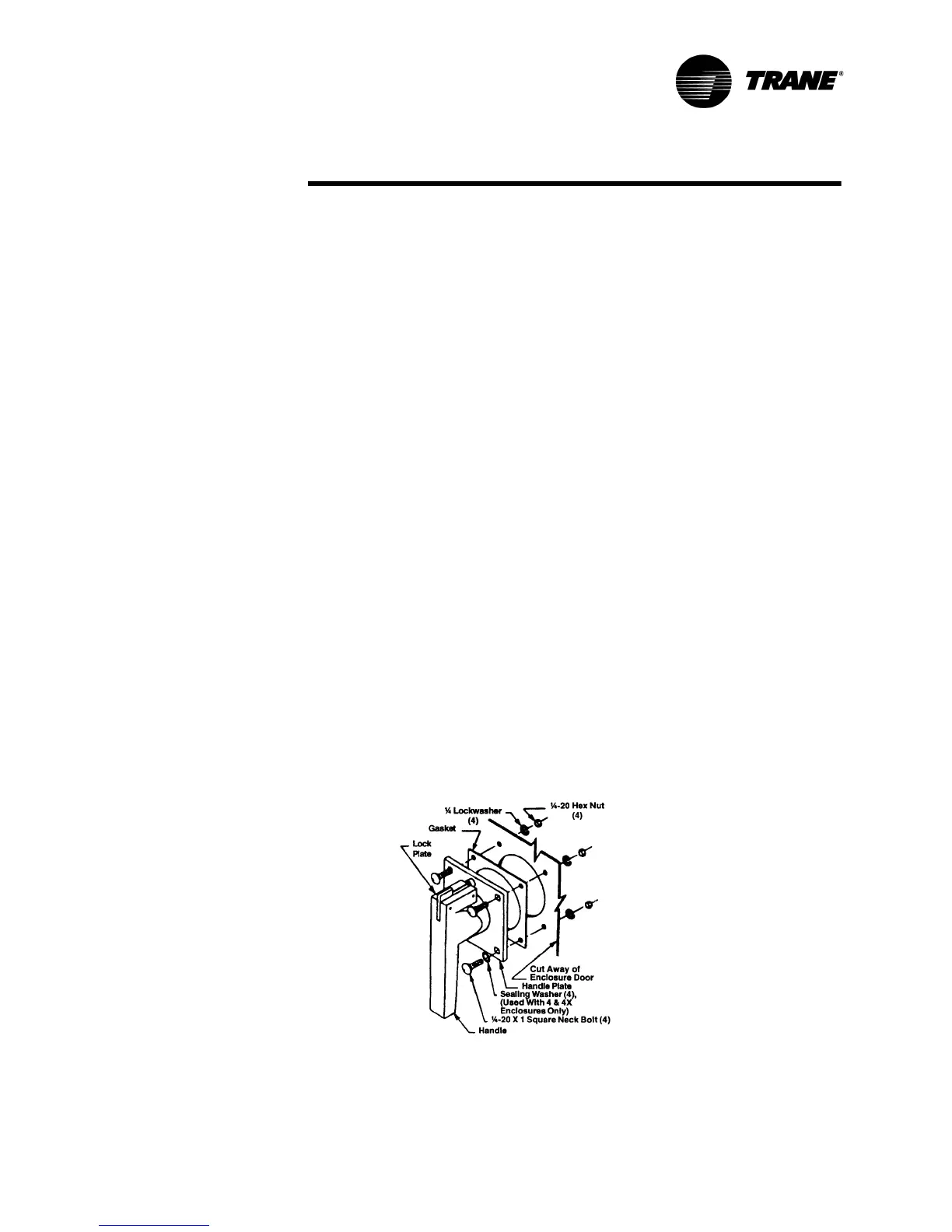

Figure 19 Handle on Door
