PKG-SVX027D-EN
31

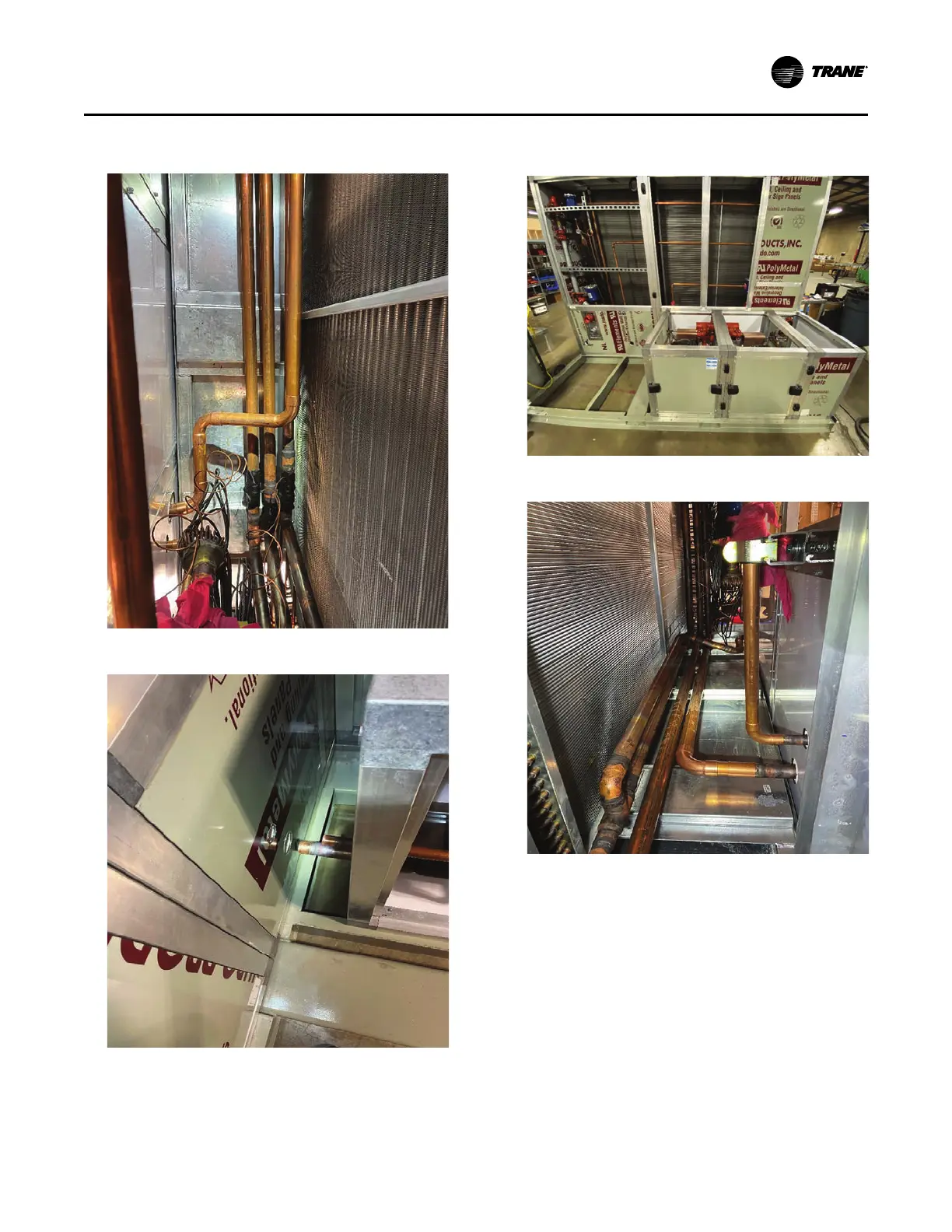

7. Complete piping and braze everything for compressor
A.
8. Unbraze caps and line up compressor B.
9. Push compressor B in and clamp down to compressor
A using intellaclamps.
10. Build IC pipe and braze compressor B.
Installation - Mechanical
