Trane SCWM Series User Manual

16
PKG-SVX027D-EN
Dimensional Data

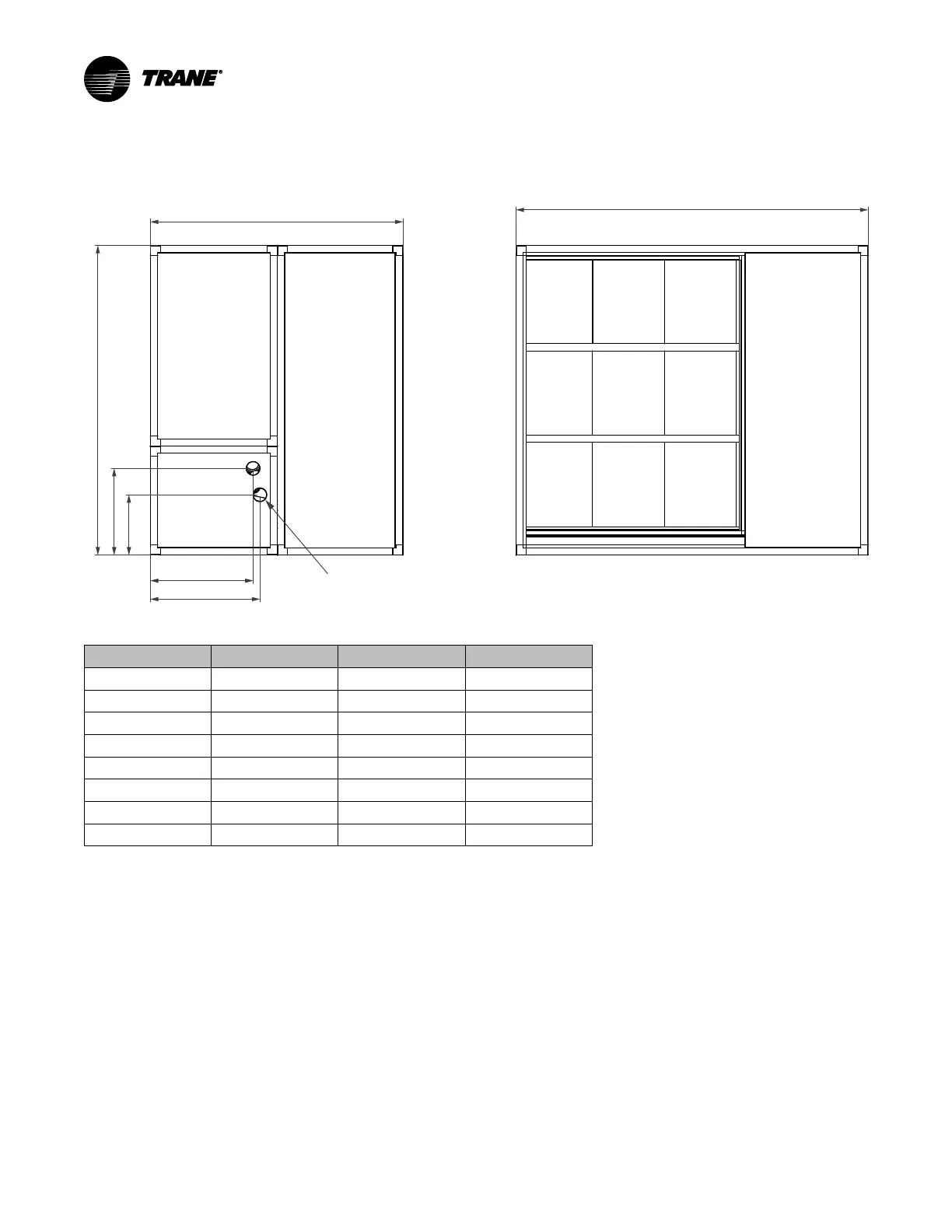

Figure 3. Unit dimensions (in inches)
WIDTH
HEIGHT
24 16
DEPTH
28
30*
Condenser pipe
Connections
Table 7. Unit dimensions (in inches)
Model Width
Height Depth
25 55.2 84 69
30 67.7 84 69
35 67.7 84 69
40/40L
96
(a)
84 69
50/50L
96
(a)
84 69
60/60L
96
(a)
84 69
70/70L
127
(a)
84 69
80/80L
127
(a)
84 69
(a)
Does not include condensate drain connection. Add an additional 1.5 inch to width to account for drain connection.
