Trane SCWM Series User Manual

58
PKG-SVX027D-EN

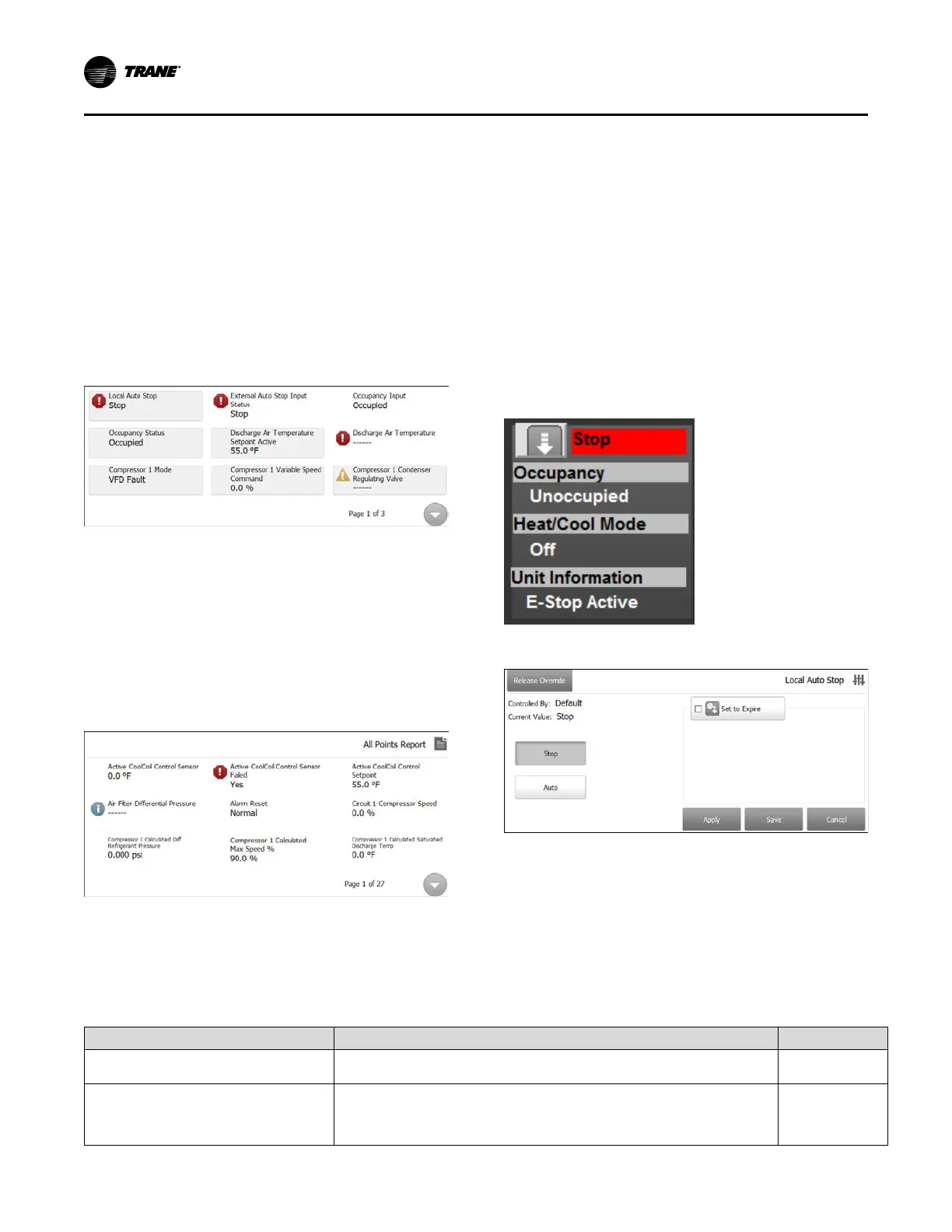

TD-7 Reports
Unit Status Report
The Unit Status report provides an overview of how the unit
is running and includes all available points that were pre-
defined for the unit.
To access the Unit Status report:
1. Press the Reports button at the bottom of the screen.
2. Press Unit Status button.
Use the up and down arrows in the bottom right to scroll
through the report.
Figure 44. Unit status report
All Points Report
The All Points report provides details for all points for a unit.
To access the All Points report:
1. Press the Reports button at the bottom of the screen.
2. Press the All Points Report button.
Use the up and down arrows in the bottom right to scroll
through the report.
Figure 45. All points report
Starting the Unit
Before starting the unit, ensure that:
• All checks are complete
• Alarms are cleared
• Compressors that you want to run are made available
or locked out.
Local Auto/Stop Value
The Local Auto/Stop Value is used to stop by unit in a safe
manner either locally in Tracer TU or at the TD-7 display.
The factory default is set to Auto.
1. Navigate to the Home screen.
2. In the upper left tile, press the arrow next to either Stop
or Auto.
3. To stop the unit, press the Stop button, or to put the
unit in Auto default mode, press Release Override.
Figure 46. Local Auto/Stop
Figure 47. Stop or release override
Setpoint Adjustments
This section details control setpoints that can be modified
from factory defaults and how to modify those setpoints.
Unit Setpoints
Table 18. Unit setpoints that can be modified in the TD-7
Setpoint Name Description Factory Default
Condenser Purge Time
(on units with condenser valves only)
The amount of time (in minutes) that the compressor will open its condenser valve during
purge mode when the unit is not operating.
20 minutes
Discharge Air Cooling Setpoint BAS
Used as the cooling setpoint on fixed setpoint units and on units that reset their discharge air
temperature setpoint as the low value in the reset equation. This value should be set to the
desired temperature needed for startup.
55° F
Controls
