22
PKG-SVX027D-EN

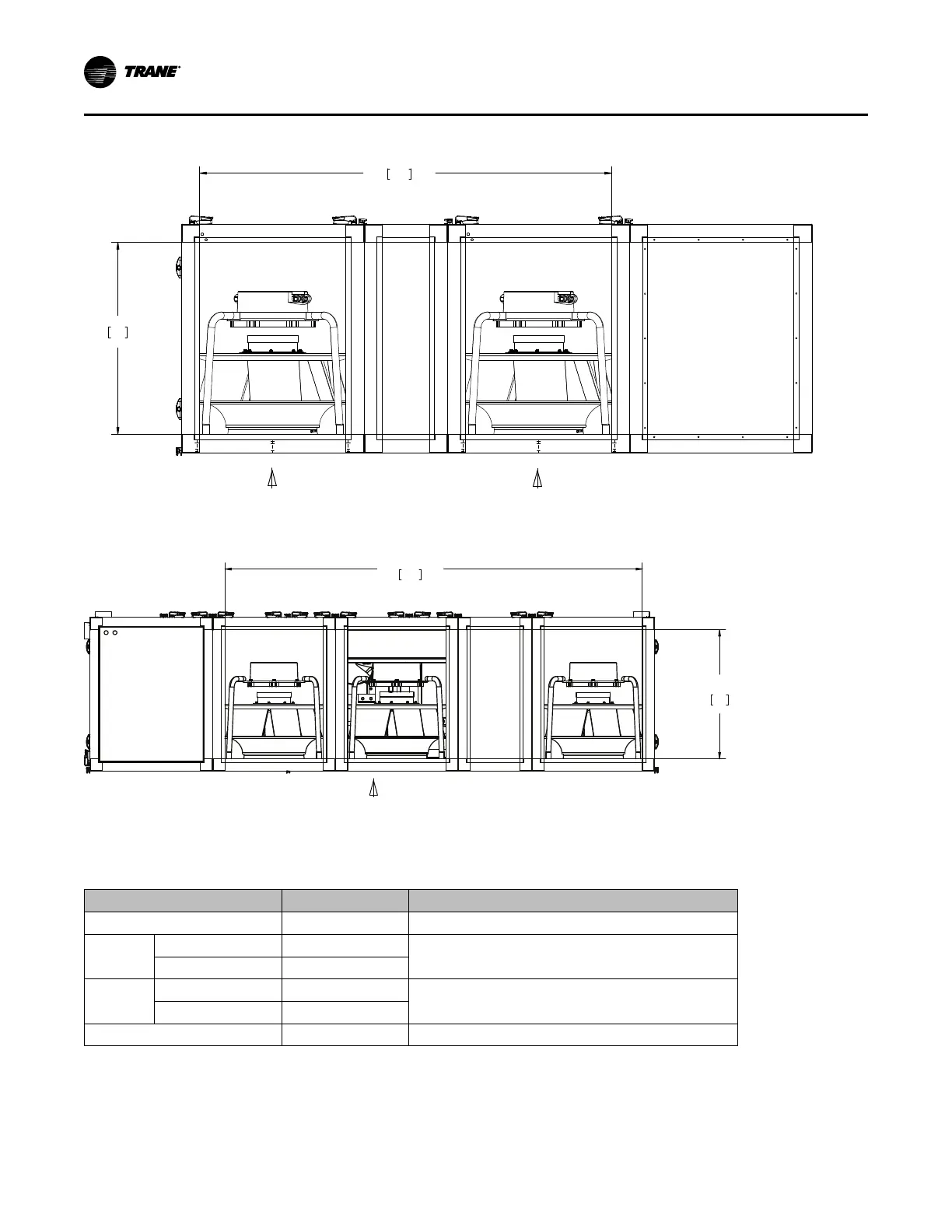

Figure 10. Discharge opening for 40 to 60 ton
WIDTH OPENING
1580
62.205
DEPTH OPENING
736
28.988
AIRFLOW AIRFLOW
Figure 11. Discharge opening for 70 to 80 ton
AIRFLOW
DISCHARGE
OPENING WIDTH
2382
93.76
DISCHARGE
OPENING DEPTH
736
28.99
Service Clearances
Table 9. Service/code clearance requirements
Side
Distance - in. (mm) Purpose
Front
42 (1066) Fans, Compressors, Condensers, Refrigeration access
Left
Left Hand Starter
42 (1066)
NEC Code Requirement (Starter Panel)
Right Hand Starter 9 (229)
Right
Left Hand Starter
9 (229)
NEC Code Requirement (Starter Panel)
Right Hand Starter 42 (1066)
Inlet
18 (457)
Provides uniform air flow
Dimensional Data
