TransCore encompass 4 - Figure 8 Parking Garage Application

Parking Garage with Ticket Island Configuration

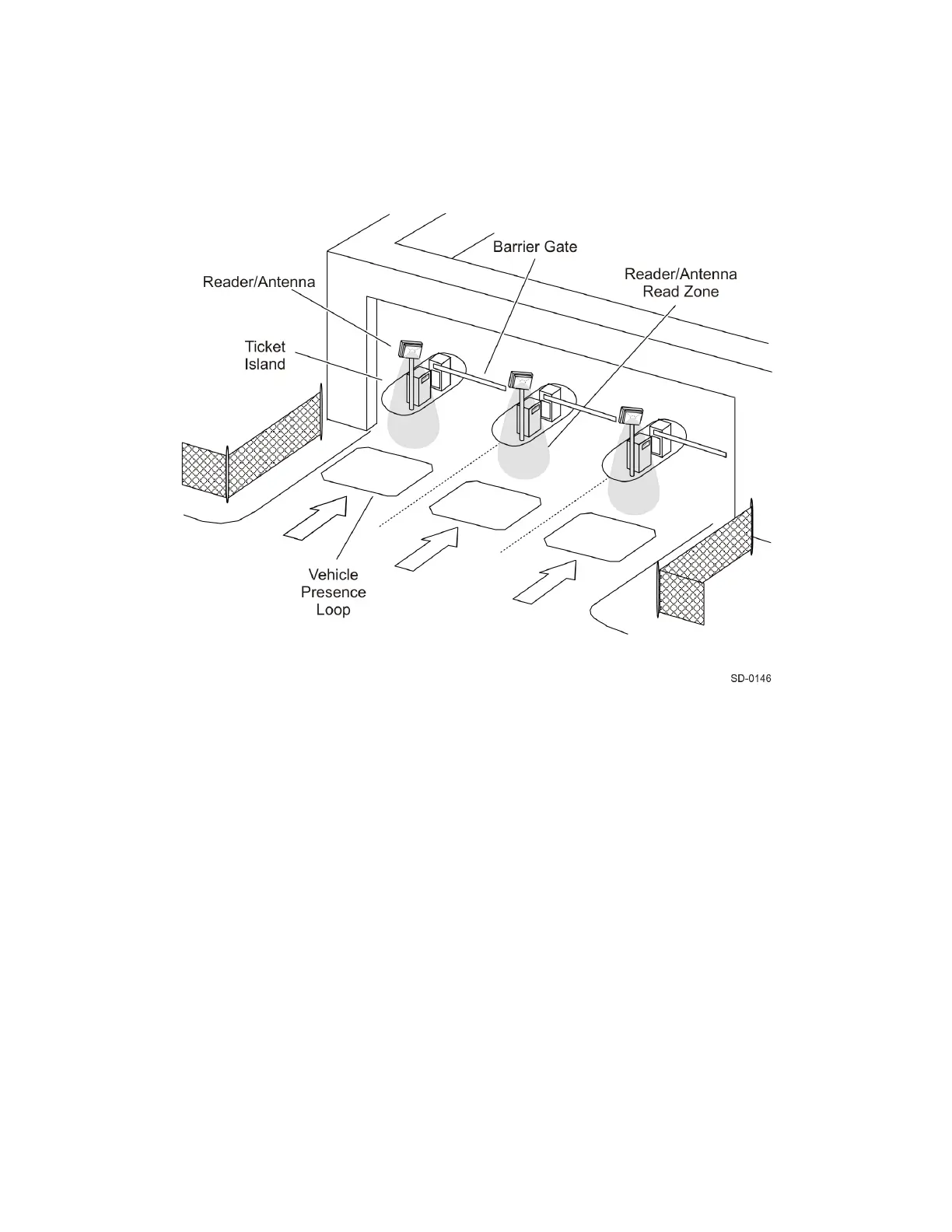

Figure 8 illustrates a parking garage application with each Encompass 4 Reader mounted on the ticket
island to read tags mounted on the inside center windshield or on the center front vehicle bumper. The
Encompass 4 Reader placement may require the vehicle to stop before the gate opens.
Overhead Reader Installation Configuration
Another option for Encompass 4 Reader placement is to mount it overhead in each lane as illustrated in
Figure 9. This illustration assumes that tags are mounted on the inside center windshield or center bumper
of the vehicle.
