TransCore encompass 4 - Figure 43 Encompass 4 Reader Installation with Overhead Antenna

Chapter 4 Installing the Encompass 4 Reader
TransCore Proprietary
4-53
Connecting the Power Supply
To connect the Encompass 4 Reader to a low-voltage AC power supply follow the procedures described
previously in the section “Connecting the AC Power Supply” on page 4-36.
To connect the Encompass 4 Reader to a low-voltage DC power supply follow the procedures described
previously in the section “Connecting the DC Power Supply” on page 4-37.
After mounting the Encompass 4 Reader and antenna, if required, you must connect the reader to a
dedicated 16 to 20V AC or 16 to 28V DC power supply.
Caution
To avoid damage to the Encompass 4 Reader, you must connect the antenna before applying
power to the reader.

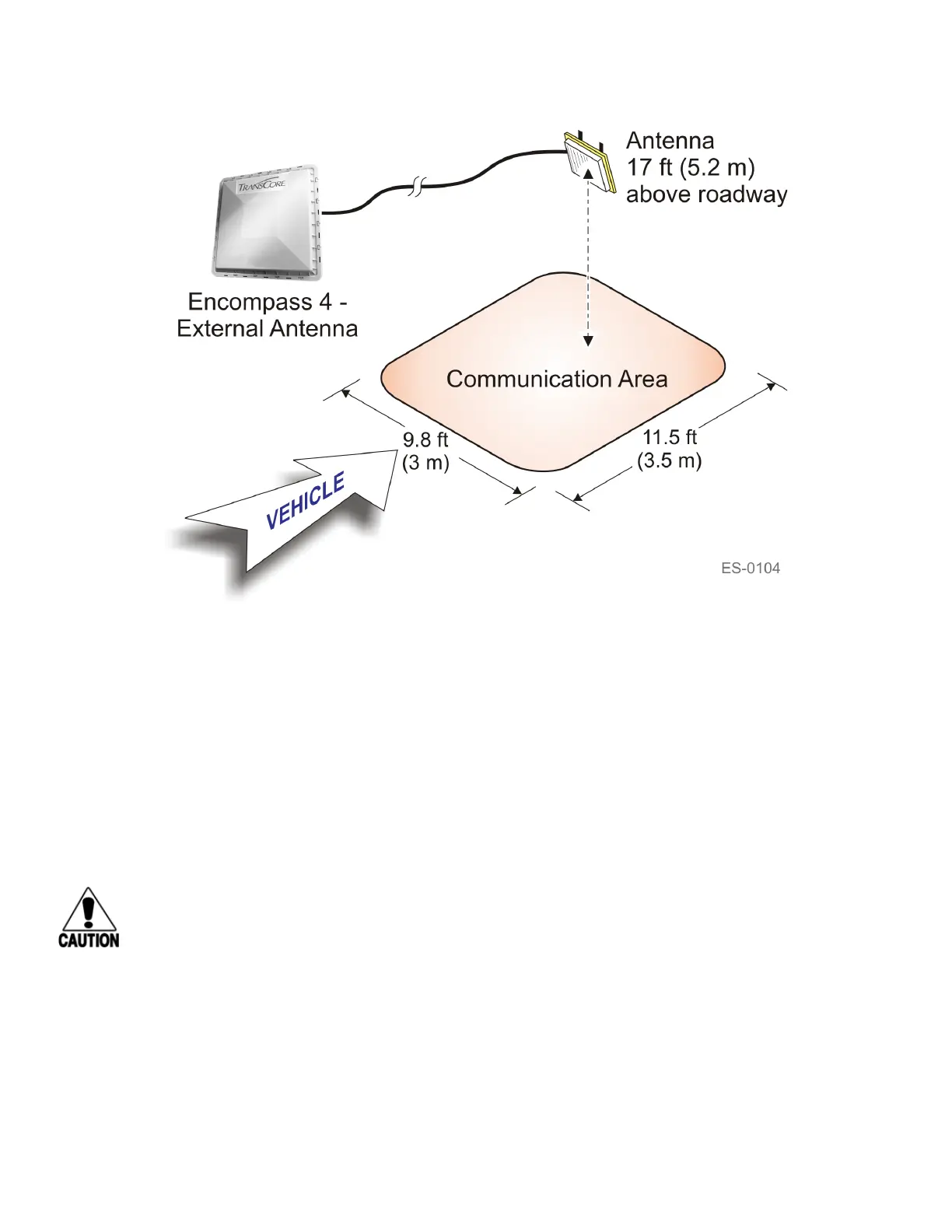

Figure 43 Encompass 4 Reader Installation with Overhead Antenna
