Chapter 3 Choosing, Installing, Removing Tags
TransCore Proprietary
3–23
Install your windshield sticker tag
Install the tag when the windshield’s temperature is above 50°F (10°C). In colder climates, use your heater/
defroster to warm the windshield before installing the tag.
Note: Once the tag is installed, it cannot be repositioned or moved.
1. Clean and dry the area where the tag will be installed with commercial glass cleaner and paper towels.
2. Hold the tag so that the release liner is facing you. Starting at the upper right corner of the tag, peel
the release liner to expose the adhesive (Figure 12).
3. With the adhesive side facing toward the windshield but not touching the glass, move the tag to the
desired location, and then press one edge to the glass.
4. Adhere the tag to the glass by rubbing your thumb up and down in a zigzag motion across the entire
tag surface (Figure 13).
5. The tag is installed and ready for use.
3”
2”
Centered, 3” from bottom of windshield 2” from center bar, 2” from bottom of windshield.

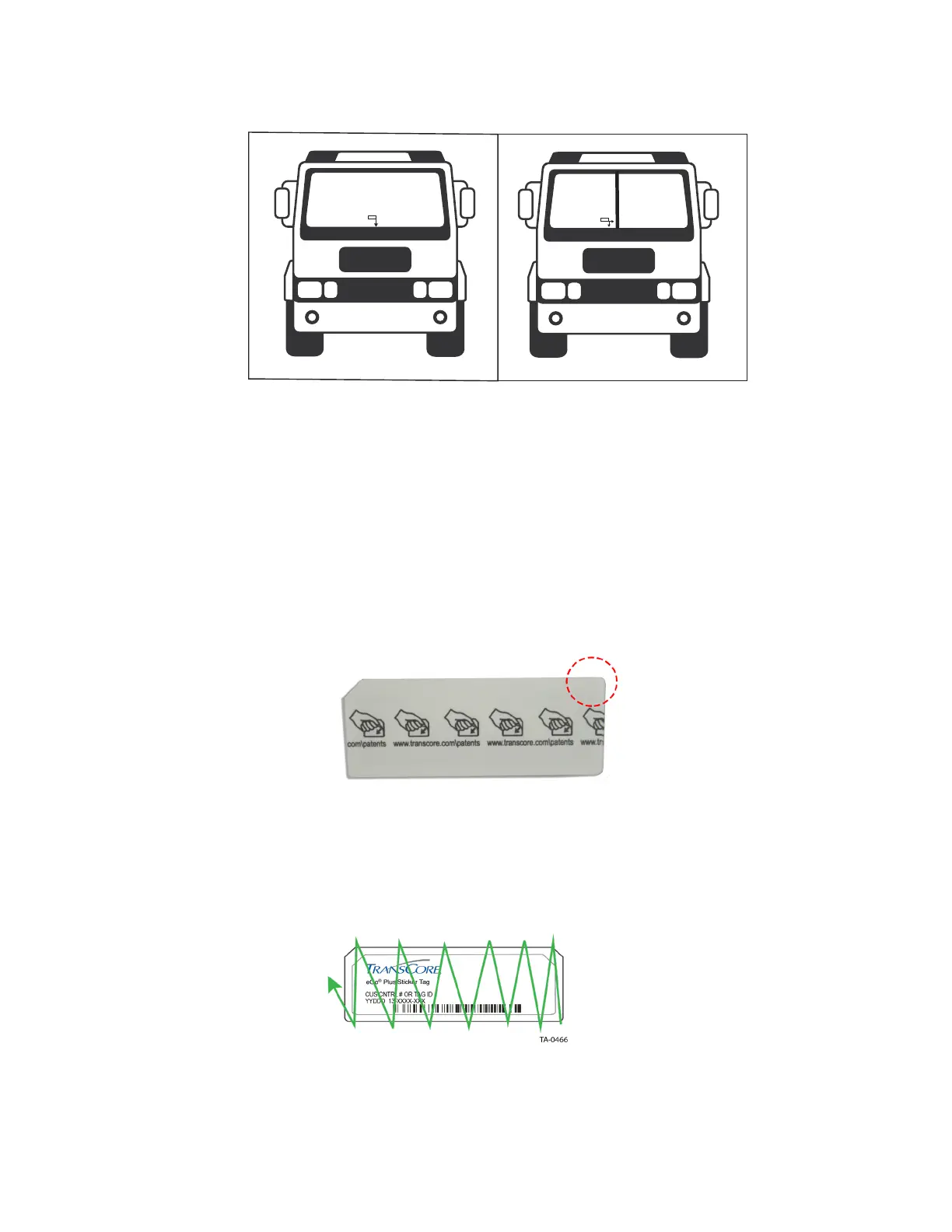

Figure 11 Tag Location for Large Trucks
Figure 12 Location of Release Tab
Figure 13 Rub Tag to Bond Adhesive to Windshield
