Chapter 4 Installing the Encompass 4 Reader
TransCore Proprietary
4-41
Mounting the Encompass 4 Reader on a Round Pole
The Encompass 4 Reader can be mounted on a round pole. The pole must be a minimum of 2 inches
(5cm) in diameter and should extend approximately 8 feet (2.4 m) above the pavement level. The pole
must be installed according to local building codes.
Required Materials To Be Supplied by Customer
You need the following materials to mount the Encompass 4 Reader on a round pole:
• A 5/32-inch Allen wrench to assemble and adjust the mounting brackets
• Two 0.5-inch (1.3-cm) wide, stainless steel hose clamp straps that are 12 inches (30.5-cm) long for a
typical 2-inch (5-cm) diameter pole or 24 inches (61-cm) long for a 10-inch (25-cm) diameter pole
• Flat-tip screwdriver or adjustable wrench to tighten hose clamp straps
• Length of 12-14 AWG wire, stake, and clamps to connect reader to earth ground
Procedures
To mount the Encompass 4 Reader to a pole
1. Unpack the Encompass 4 Reader. A factory-mounted bracket (Figure 30 and Figure 31) is attached to
the back of the Encompass 4 Reader.

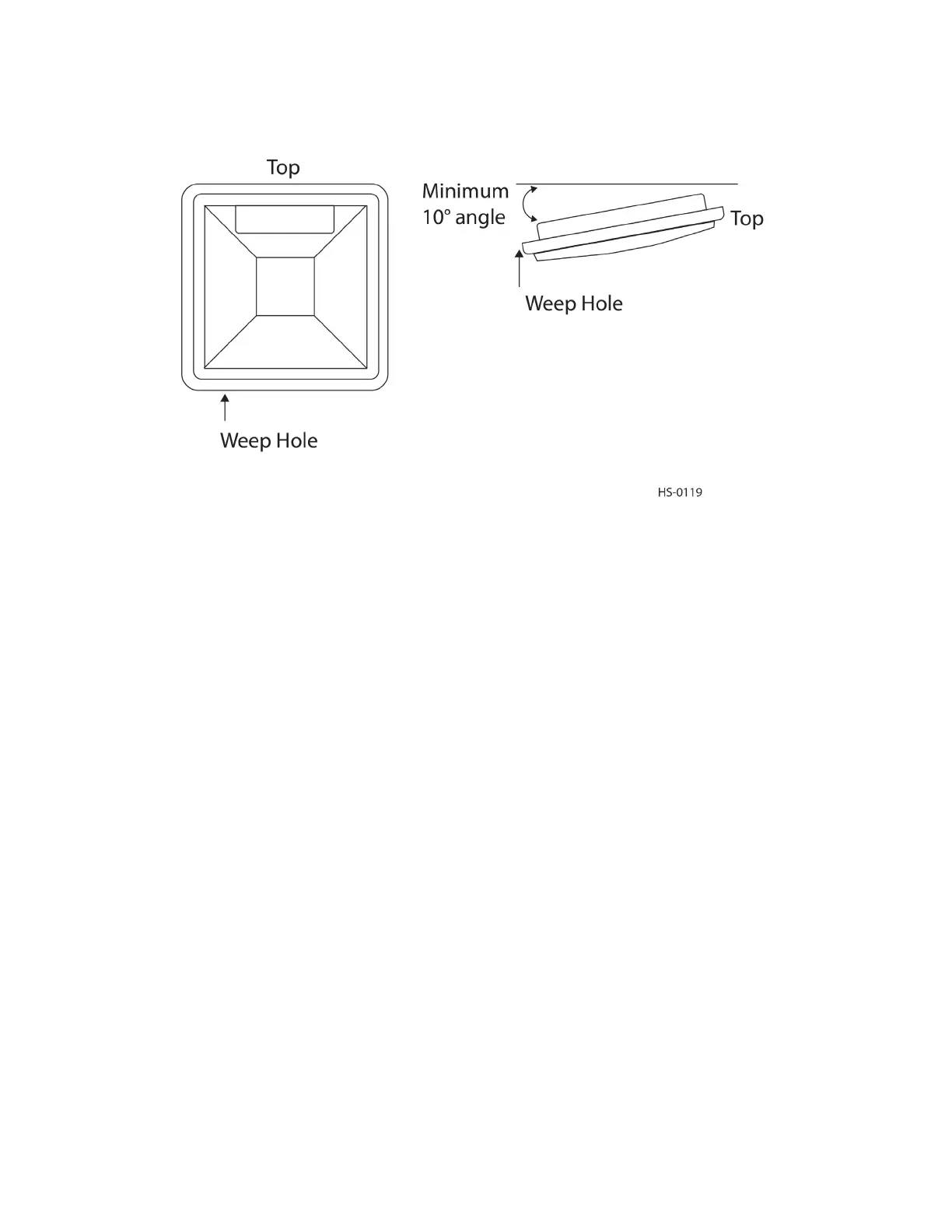

Figure 29 Correct Orientation of Reader
